California Air Tools 4620AC Powerful 2.0 HP Ultra Quiet & Oil-Free 4.6 Gallon Air Compressor

Product Description

The California Air Tools 4620AC is a powerful 2.0 HP ultra-quiet and oil-free air compressor featuring a 4.6-gallon rust-free aluminum air tank. Operating at only 70 dB, it is designed to provide strong airflow with reduced noise, lower maintenance requirements, and easy portability around the jobsite.

The SP-9421 2.0 HP motor operates at 1680 RPM, helping reduce noise and wear while supporting longer continuous run times. The oil-free dual-piston pump is engineered for high performance and durability with a designed life cycle of 3,000+ hours before wear.

The lightweight 4.6-gallon aluminum tank weighs only 64 lbs, making the 4620AC easy to move around a jobsite. The Easy Start Valve reduces starting amperage by allowing the motor to start under a no-load condition.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 4.6-gallon rust-free aluminum air tank
• Lightweight 64 lb design
• SP-9421 motor operating at 1680 RPM
• Designed for a 3,000+ hour pump life cycle before wear
• Easy Start Valve for reduced starting amperage
• Two pressure control gauges

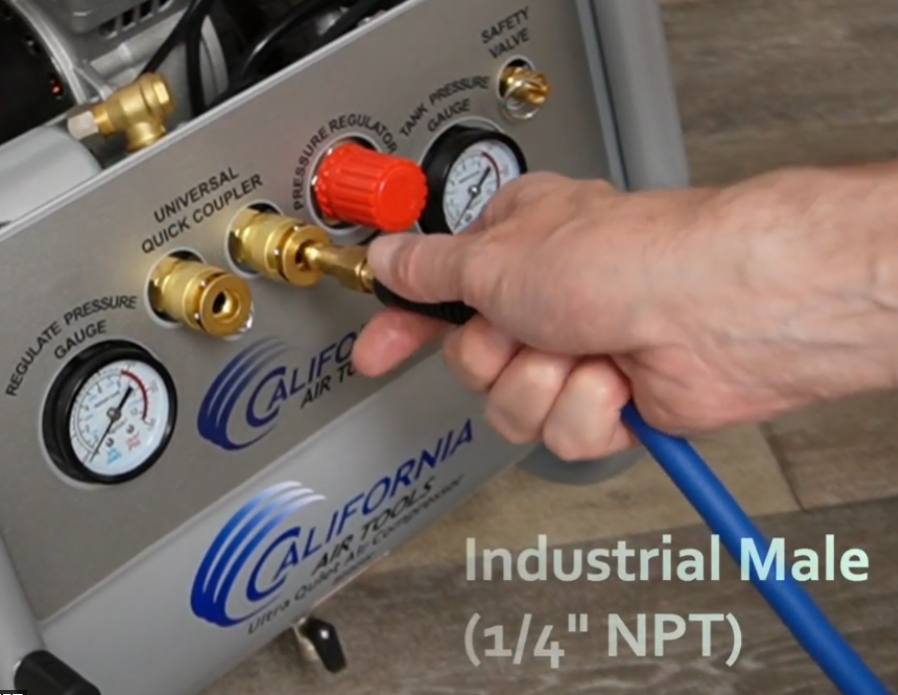

• Two female industrial push-to-connect quick connectors
• Thermal overload protector
• 125 PSI maximum pressure
• 70/30 duty cycle
• 110V / 60 Hz operation
• Portable and easy to move around the jobsite
• Two air filters included
• UL/CSA certified

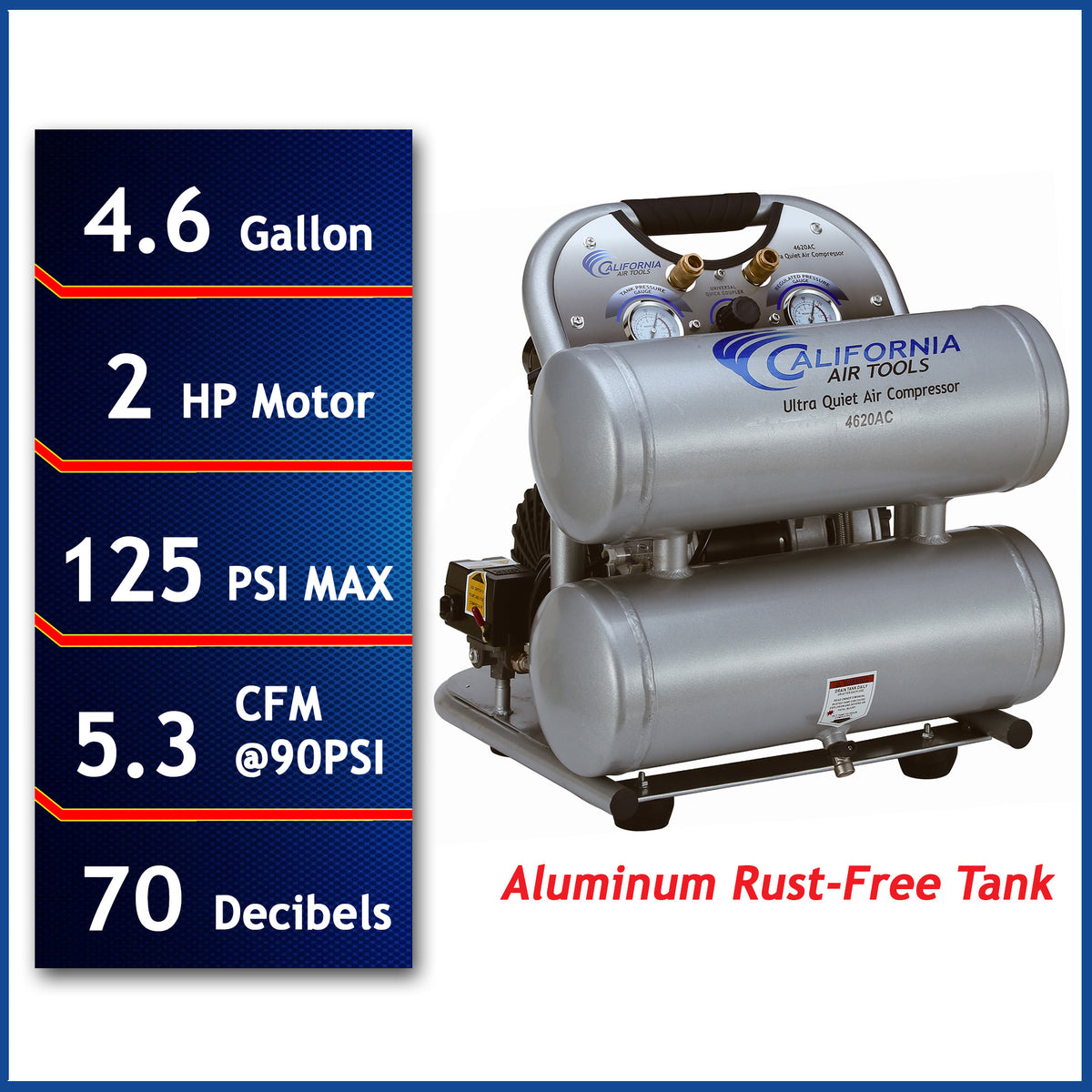

Specifications

• Model: 4620AC
• Motor: 2.0 HP rated/running
• Motor Model: SP-9421
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 4.6 gallons
• Tank Material: Aluminum
• Tank Type: Rust-Free Aluminum
• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Current Draw: 14 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Tank Fill Time: 60 seconds
• Recovery Time: 20 seconds from 95 PSI to 125 PSI
• Duty Cycle: 70/30
• Power Cord: 25 ft, 14 gauge
• Recommended Outlet: Dedicated 15 Amp outlet
• Minimum Generator: 5,500 watts
• Dimensions: 18.75 × 17 × 19.7 inches
• Weight: 64 lbs
• Warranty: 1-Year Limited Manufacturer Warranty
• Certifications: UL/CSA

What's Included

• California Air Tools 4620AC Air Compressor
• 4.6-gallon aluminum air tank
• Two air filters
• Two pressure control gauges
• Two female industrial push-to-connect quick connectors
• Easy Start Valve
• 25-foot, 14-gauge power cord

Applications

• Jobsite applications
• Construction applications
• Contractor applications
• General workshop applications
• Pneumatic tools
• Applications requiring a portable 2.0 HP compressor
• Applications where reduced operating noise is important
• Applications requiring oil-free compressed air

Maintenance

Replace the two 2 HP air filters every two years, or annually if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The oil-free dual-piston pump eliminates the need for regular pump oil changes. Keep the compressor clean and ensure the air intake and surrounding ventilation areas remain unobstructed during operation.

The manufacturer recommends referring to applicable state and city codes for commercial use.
