California Air Tools 4620AC-22060 Powerful 2.0 HP Ultra Quiet & Oil-Free 4.6 Gallon Air Compressor – 220V

Product Description

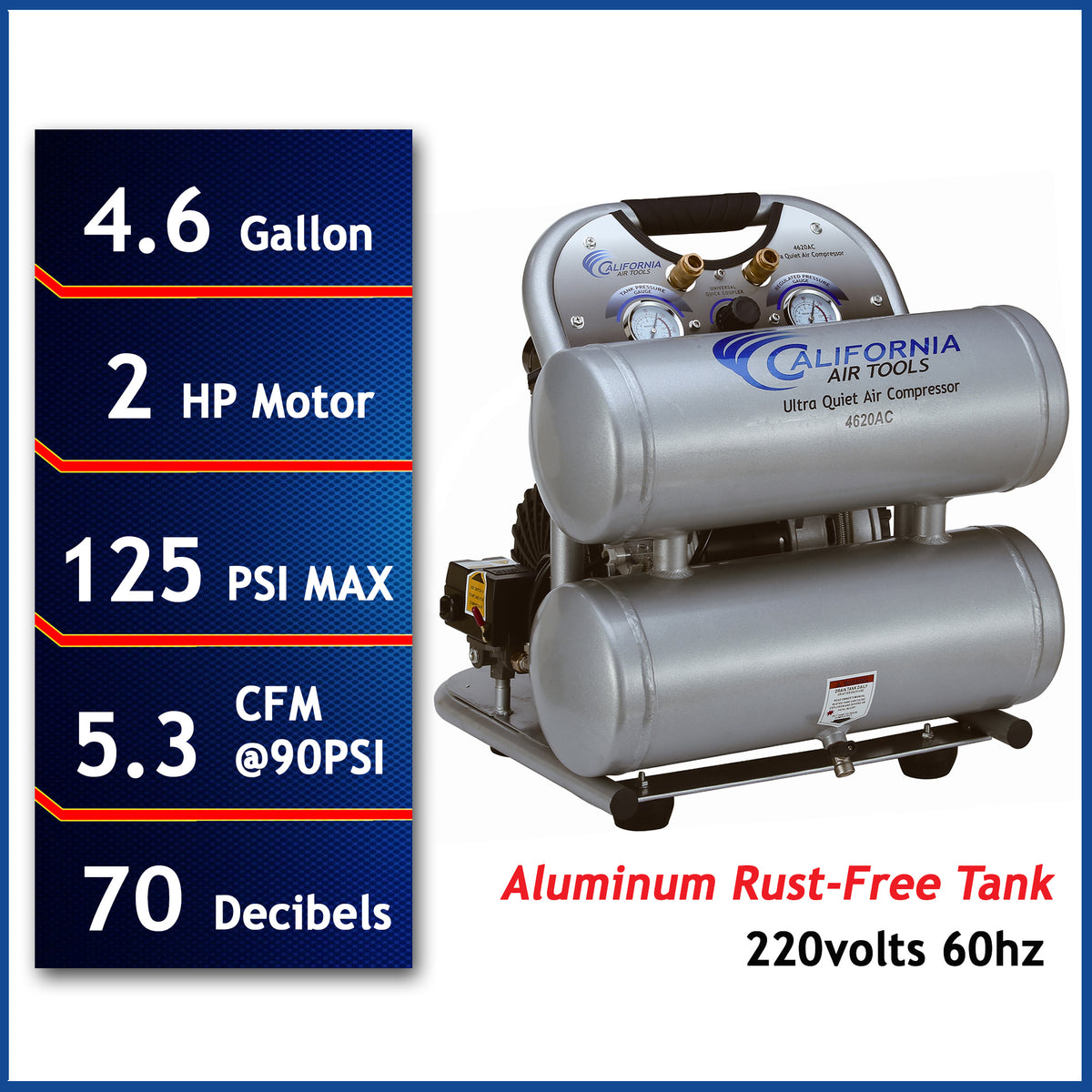

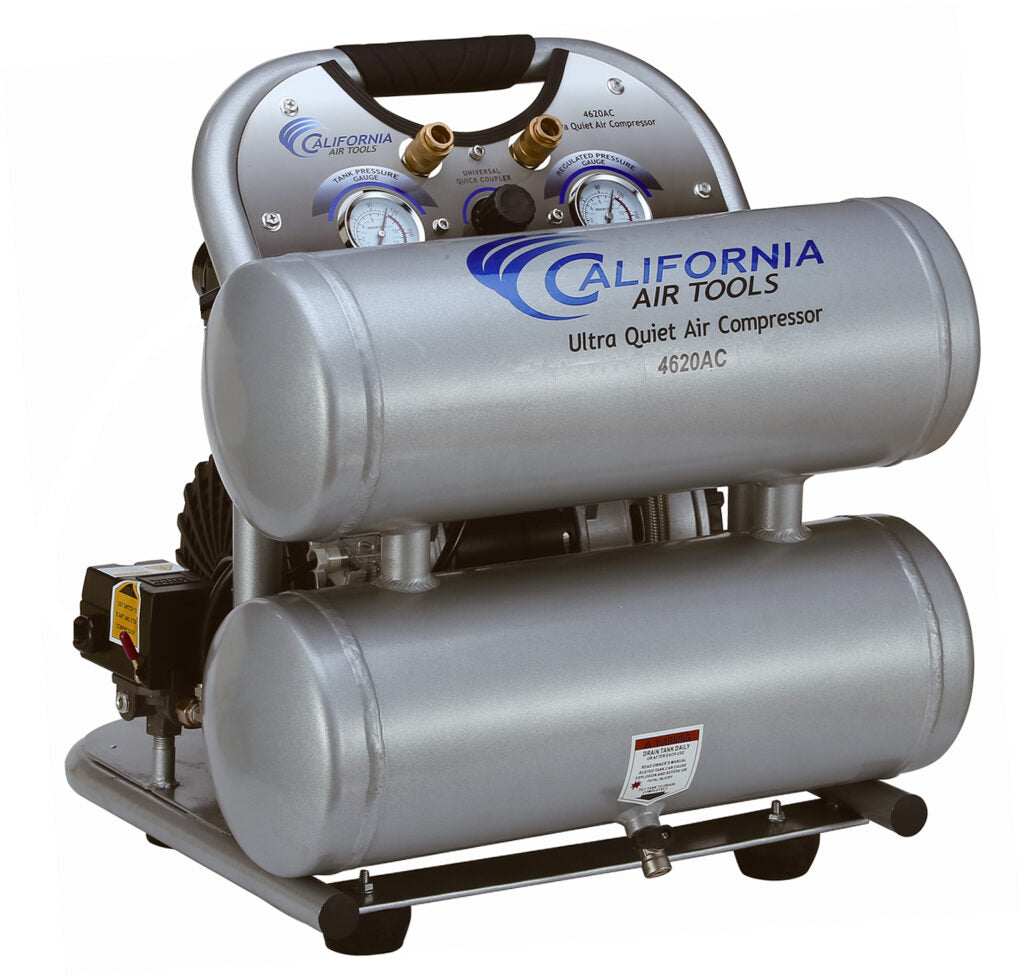

The California Air Tools 4620AC-22060 is a powerful 2.0 HP ultra-quiet and oil-free air compressor featuring a lightweight 4.6-gallon rust-free aluminum air tank. Operating at only 70 dB, it is designed to provide strong airflow with reduced noise, lower maintenance requirements, and easy portability around the jobsite.

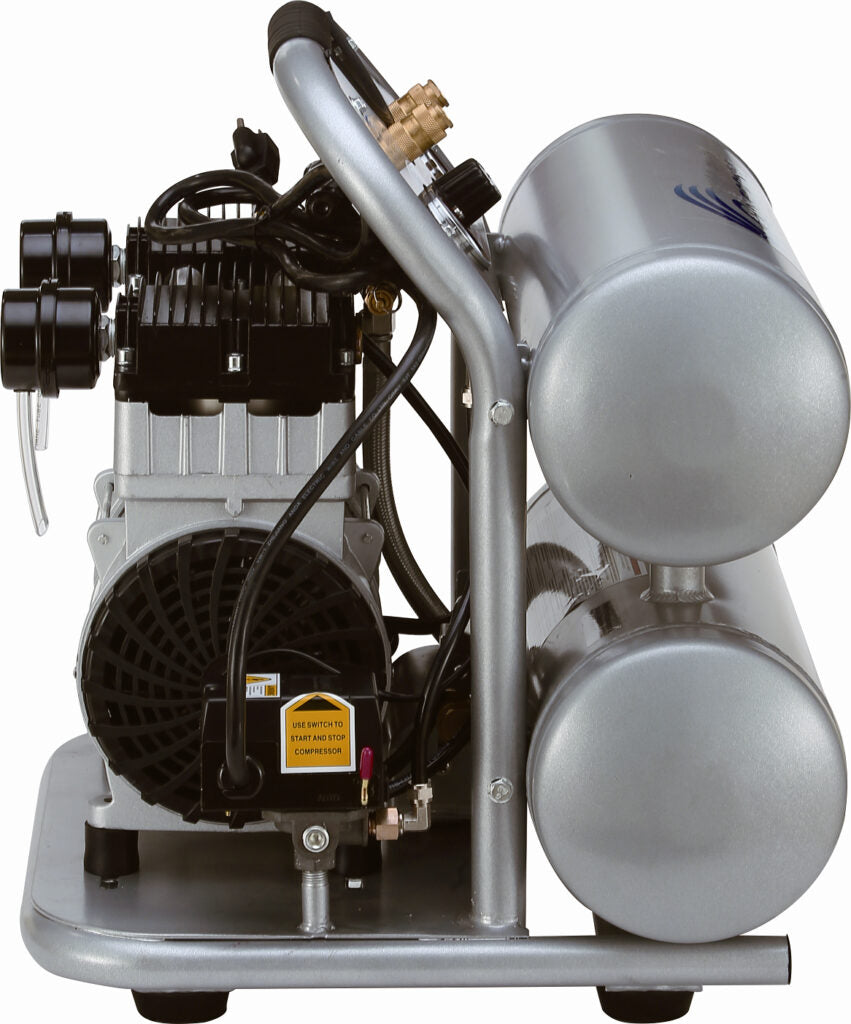

The SP-9421-22060 2.0 HP motor operates at 1680 RPM, helping reduce noise and wear while supporting longer continuous run times. The oil-free dual-piston pump is engineered for high performance and durability with a designed life cycle of more than 3,000 hours before wear.

The 4.6-gallon aluminum air tank weighs only 64 lbs, making the compressor easy to move around the jobsite. The Easy Start Valve reduces starting amperage by allowing the motor to start under a no-load condition.

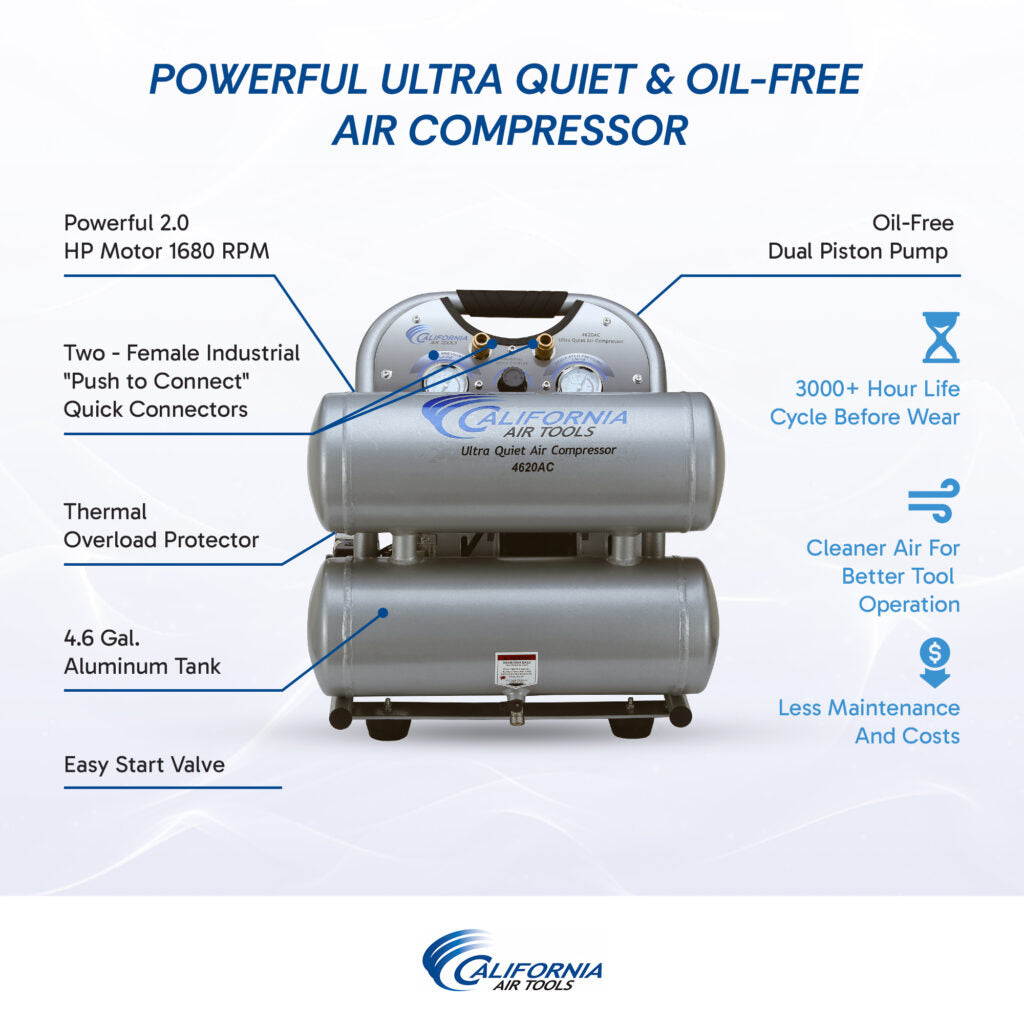

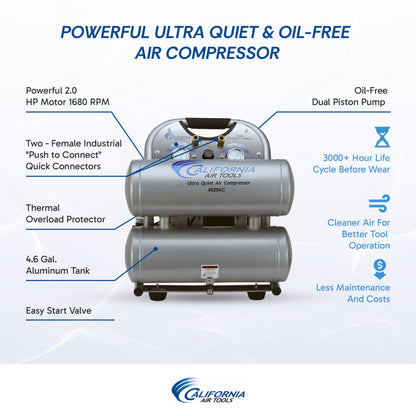

Key Features

• 2.0 HP rated/running motor

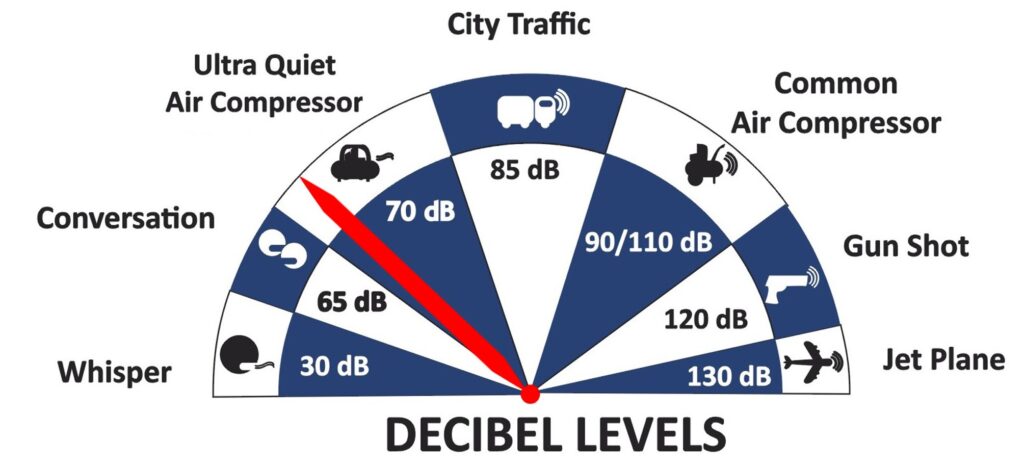

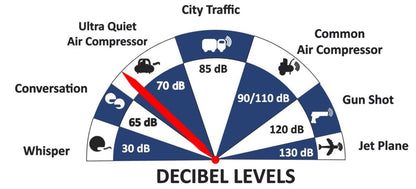

• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 4.6-gallon rust-free aluminum air tank
• Lightweight 64 lb design
• SP-9421-22060 motor operating at 1680 RPM
• Designed for a 3,000+ hour pump life cycle before wear
• Easy Start Valve for reduced starting amperage
• Two pressure control gauges

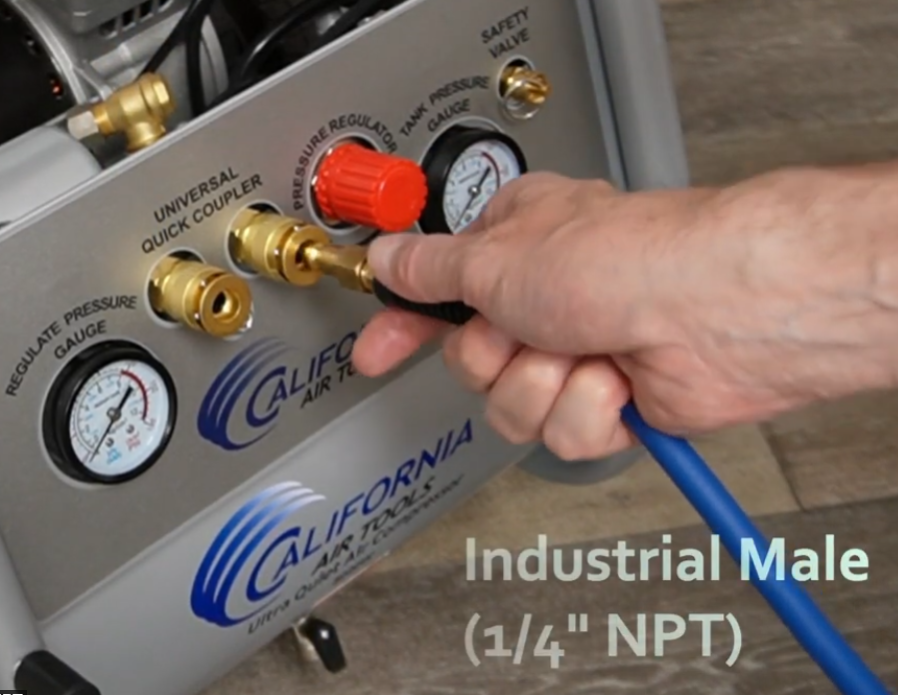

• Two female industrial push-to-connect quick connectors
• Thermal overload protector
• 125 PSI maximum pressure
• 70/30 duty cycle
• 220V / 60 Hz / single-phase operation
• 7.5 Amp low current draw
• NEMA 6-15P plug
• Portable and easy to move around
• Two air filters included

Specifications

• Model: 4620AC-22060
• Motor: 2.0 HP rated/running
• Motor Model: SP-9421-22060
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 4.6 gallons
• Tank Material: Aluminum
• Tank Type: Rust-Free Aluminum
• Noise Level: 70 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 7.5 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Tank Fill Time: 60 seconds
• Recovery Time: 20 seconds from 95 PSI to 125 PSI
• Duty Cycle: 70/30
• Minimum Generator: 3,000 running watts
• Plug Type: NEMA 6-15P
• Dimensions: 18.75 × 17 × 19.7 inches
• Weight: 64 lbs
• Warranty: 1-Year Limited Manufacturer Warranty
• Assembly: Assembled in USA

What's Included

• California Air Tools 4620AC-22060 Air Compressor
• 4.6-gallon aluminum air tank
• Two air filters
• Two pressure control gauges
• Two female industrial push-to-connect quick connectors
• Easy Start Valve
• Thermal overload protector

Applications

• Jobsite applications
• Construction applications
• Contractor applications
• General workshop applications
• Pneumatic tools
• Applications requiring a portable 2.0 HP compressor
• Applications requiring reduced operating noise
• Applications requiring oil-free compressed air

Maintenance

Replace the two 2 HP air filters every two years, or annually if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The oil-free dual-piston pump eliminates the need for regular pump oil changes. Keep the compressor clean and ensure the air intake and surrounding ventilation areas remain unobstructed during operation.
