California Air Tools 5020W Powerful 2.0 HP Ultra Quiet & Oil-Free Rugged 5 Gallon Air Compressor – 110V

Product Description

The California Air Tools 5020W is a rugged 2.0 HP ultra-quiet and oil-free air compressor designed for demanding jobsite, construction, workshop, and general pneumatic applications. It features a 5-gallon steel tank, large 7.6-inch flat-free wheels, a protective roll cage, and a telescoping handle for easy transportation.

Powered by a 2.0 HP SP-9421 motor operating at only 1,680 RPM, the 5020W delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI while maintaining a noise level of only 70 dB. Its oil-free dual-piston pump provides up to 135 PSI maximum pressure and is designed for long service life with minimal maintenance.

Key Features

• 2.0 HP SP-9421 ultra-quiet motor operating at 1,680 RPM
• Oil-free dual-piston pump system for low-maintenance operation
• 5-gallon heavy-duty steel air tank
• 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI
• 135 PSI maximum pressure
• Ultra-quiet 70 dB operating noise level
• Large 7.6-inch rugged flat-free wheels for jobsite mobility
• Protective roll cage for added durability
• Adjustable telescoping handle from 19.5 to 27.5 inches

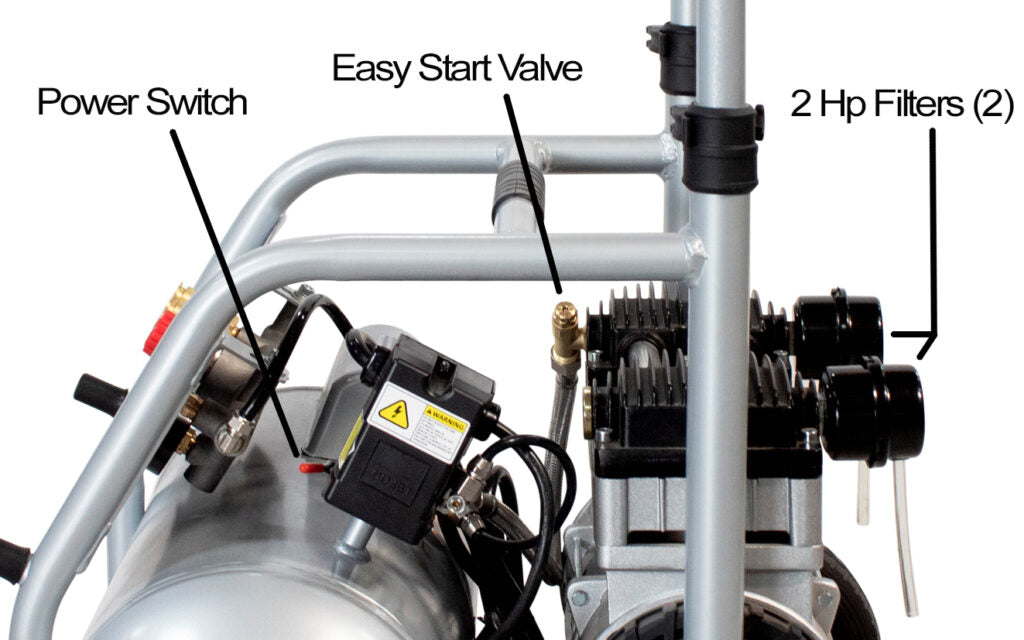

• Easy Start Valve reduces starting amperage
• Two pressure control gauges
• Two female industrial push-to-connect quick connectors
• Thermal overload protection
• 70/30 duty cycle
• Designed for cold starts and uneven terrain

Specifications

• Brand: California Air Tools
• Model: 5020W
• Motor Power: 2.0 HP
• Motor: SP-9421
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 5 Gallons
• Tank Material: Steel
• CFM at 40 PSI: 6.40 CFM
• CFM at 90 PSI: 5.30 CFM
• Maximum Pressure: 135 PSI
• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Current Draw: 14 Amps
• Recommended Outlet: Dedicated 15 Amp Outlet
• Power Cord: 14 Gauge, 25 Feet
• Generator Requirement: Minimum 5,500 Running Watts
• Duty Cycle: 70/30
• Tank Fill Time: Approximately 60 Seconds
• Recovery Time: Approximately 20 Seconds from 95 to 125 PSI
• Dimensions: 19 × 21 × 41.5 inches
• Weight: 82 lbs
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 5020W Air Compressor
• 5-Gallon Steel Air Tank
• SP-9421 2.0 HP Motor-Pump
• Two Air Filters
• Two Pressure Control Gauges
• Two Female Industrial Push-to-Connect Quick Connectors
• Protective Roll Cage
• Large 7.6-Inch Flat-Free Wheels
• Telescoping Handle

Applications

The California Air Tools 5020W is suitable for a wide range of professional, construction, workshop, and DIY pneumatic applications, including:

• Framing and roofing
• Flooring installation
• General construction
• Stapling and nailing
• Brad and finish nailing
• Blow cleaning and surface cleaning
• Air brushing
• LVLP painting and spraying
• Inflation
• Drilling
• Grinding
• Sanding
• Bolting and wrenching
• Roof nailing
• Surface preparation
• General workshop and jobsite pneumatic applications

Maintenance

The 5020W uses an oil-free dual-piston pump, eliminating the need for compressor oil and reducing routine maintenance. The two motor-pump air filters should be replaced every two years under normal conditions or annually when the compressor is used in dirty or dusty environments. Replacement air filter part number is 90260.
