California Air Tools 60040CAD Ultra Quiet & Oil-Free 4.0 HP 60 Gallon ASME Air Compressor with Automatic Drain Valve – 220V

Product Description

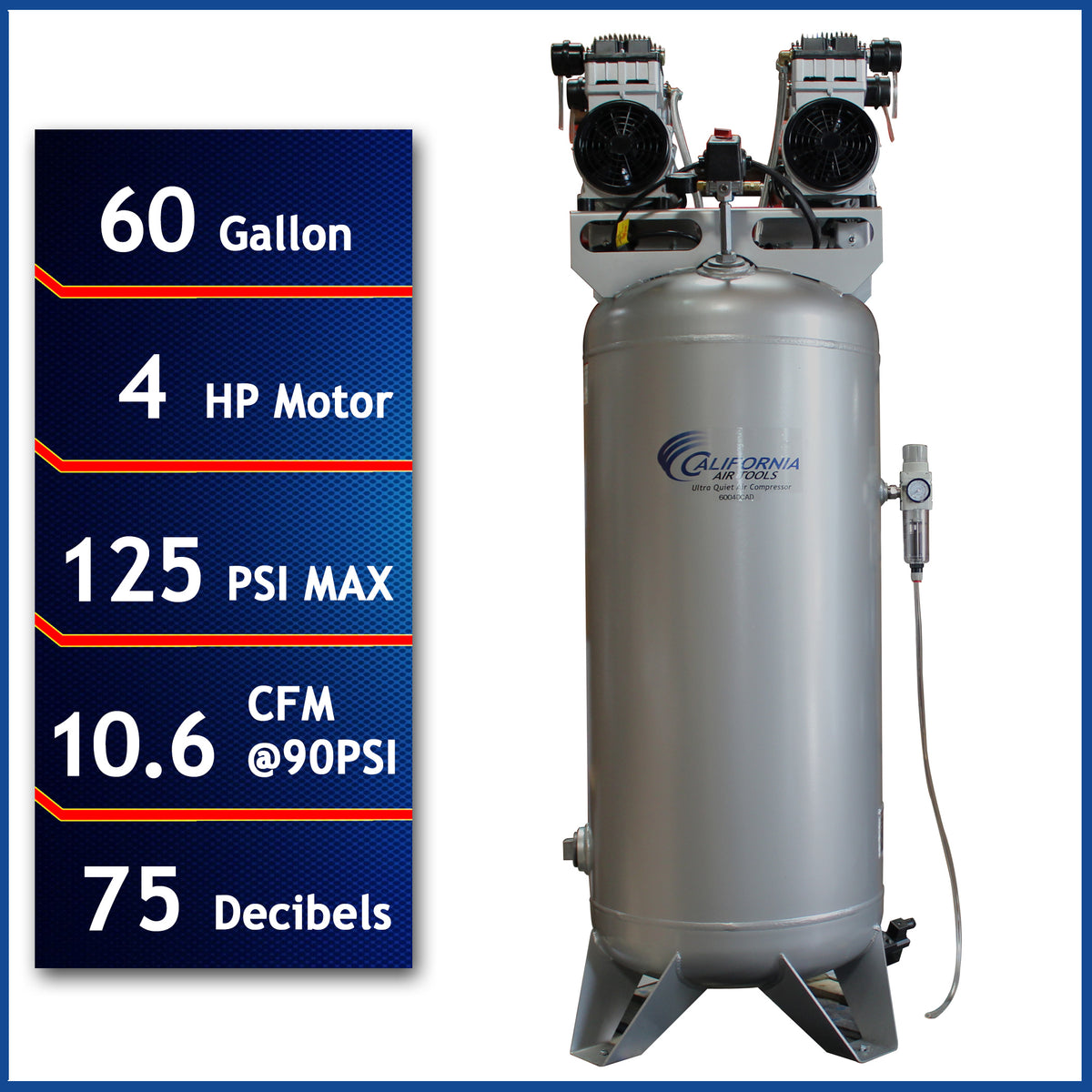

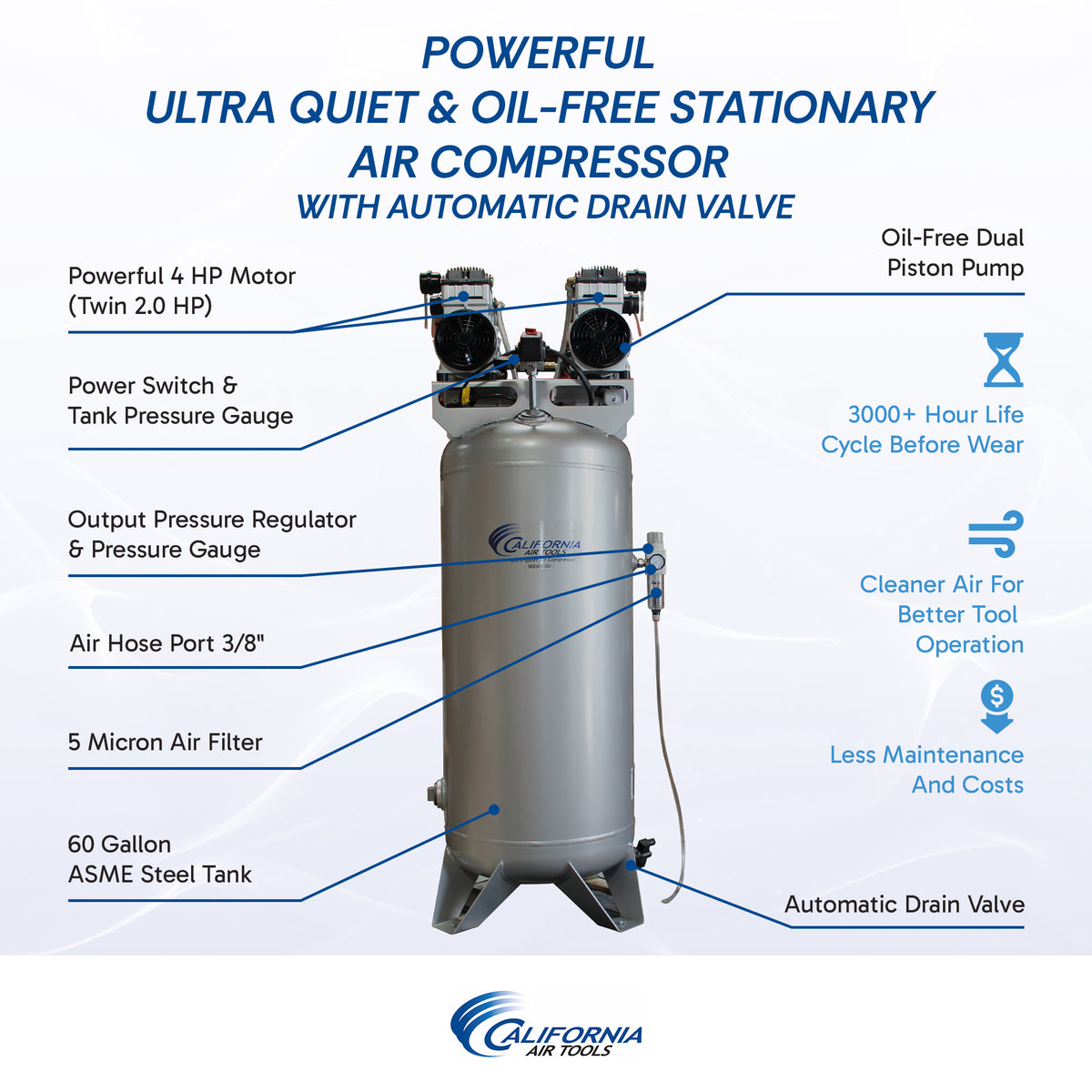

The California Air Tools 60040CAD is a powerful 4.0 HP ultra-quiet and oil-free stationary air compressor designed for professional shops, garages, large equipment, automotive applications, and multi-product shop use. Its large 60-gallon ASME-certified steel air tank provides substantial compressed-air storage while the oil-free dual-piston pump delivers clean air with reduced maintenance.

Powered by twin 2.0 HP motors operating at only 1680 RPM, the 60040CAD produces just 75 dB of operating noise while delivering 10.60 CFM at 90 PSI. A factory-installed EZ-1 automatic drain valve automatically removes accumulated moisture from the tank, reducing the need for manual draining.

Key Features

• 4.0 HP rated/running power
• Ultra-quiet 75 dB operation
• Oil-free dual-piston pump system
• Twin 2.0 HP motors operating at 1680 RPM
• 60-gallon ASME-certified steel air tank
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure

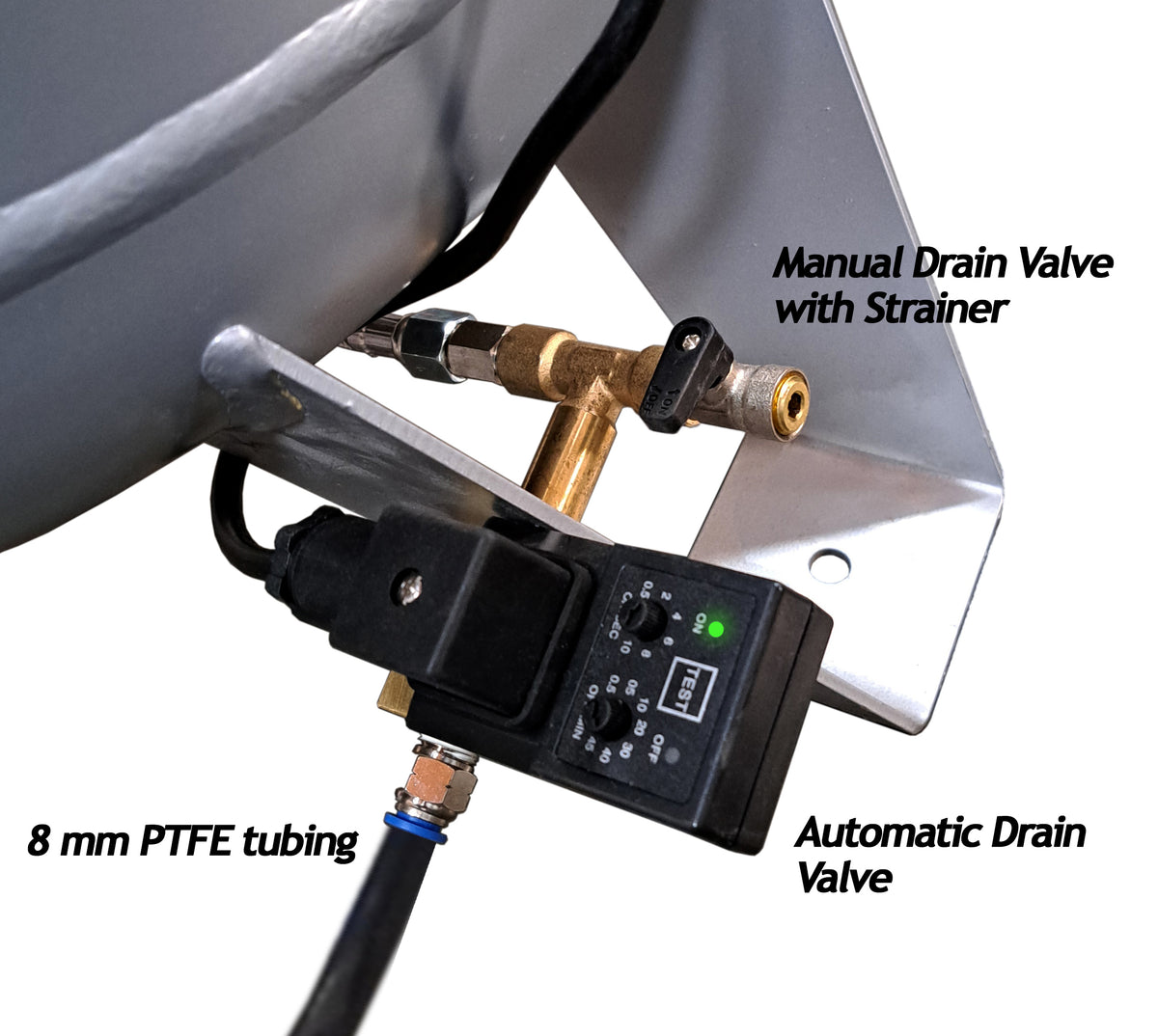

• Factory-installed EZ-1 automatic drain valve
• 70/30 duty cycle

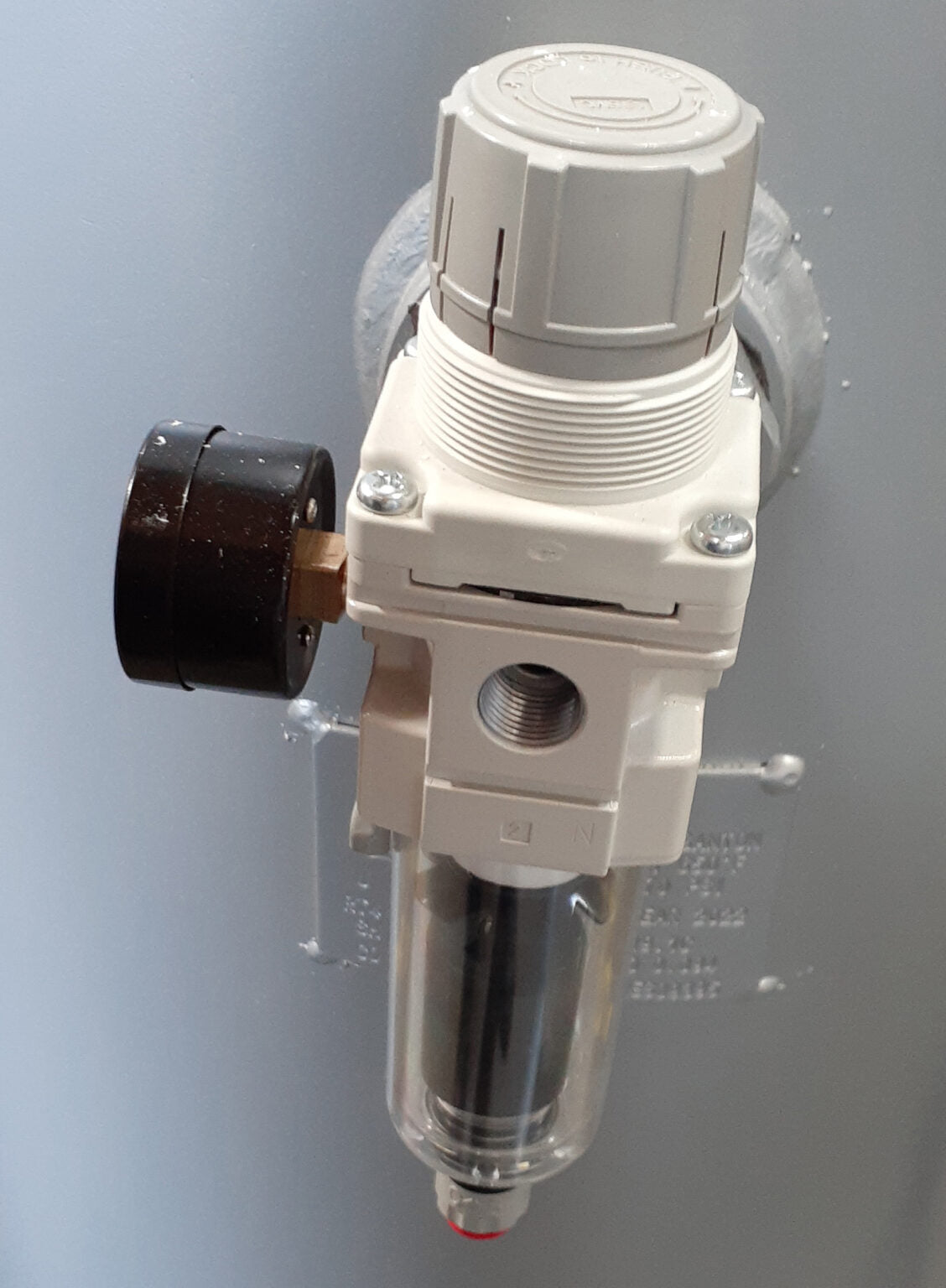

• 5-micron air filter and regulator with 3/8-inch port
• Two pressure control gauges
• Condor pressure switch
• Thermal overload protection
• Low 14-amp power draw
• ASME certified for commercial use
• NEMA 6-15P plug
• Designed for longer continuous run times
• Assembled in the USA with global components

Specifications

• Brand: California Air Tools
• Model: 60040CAD
• Motor Power: 4.0 HP
• Motor Configuration: Twin 2.0 HP motors
• Motor Speed: 1680 RPM
• Pump Type: Oil-Free Dual Piston
• Pump Life: 3000+ hours
• Tank Capacity: 60 gallons
• Tank Material: Steel
• Tank Certification: ASME Certified
• Tank Orientation: Vertical
• Noise Level: 75 dB
• Airflow: 12.80 CFM @ 40 PSI
• Airflow: 10.60 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current: 14 Amps
• Duty Cycle: 70/30
• Air Filter: 5 Micron
• Air Hose Port: 3/8"
• Dimensions: 21" L × 29" W × 66" H
• Weight: 213 lbs
• Plug: NEMA 6-15P
• Automatic Drain Valve: EZ-1
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 60040CAD 4.0 HP Air Compressor
• 60-gallon ASME-certified steel air tank
• Factory-installed EZ-1 automatic drain valve
• 5-micron air filter and regulator
• Two pressure control gauges
• Four air filters
• NEMA 6-15P power plug

Applications

The California Air Tools 60040CAD is designed for large equipment, professional workshops, garages, automotive applications, die grinding, sanding, HVLP painting, and multi-product shop use. Its 60-gallon ASME tank provides substantial air storage for applications requiring a larger compressed-air reserve.

Maintenance

The oil-free pump eliminates the need for compressor oil changes and helps reduce routine maintenance. The automatic drain valve is designed to automatically remove moisture from the air tank. Replace the 2 HP motor air filters every two years, or annually when the compressor is exposed to dirty or dusty conditions. Follow applicable state and city codes for commercial installation and ASME tank use.
