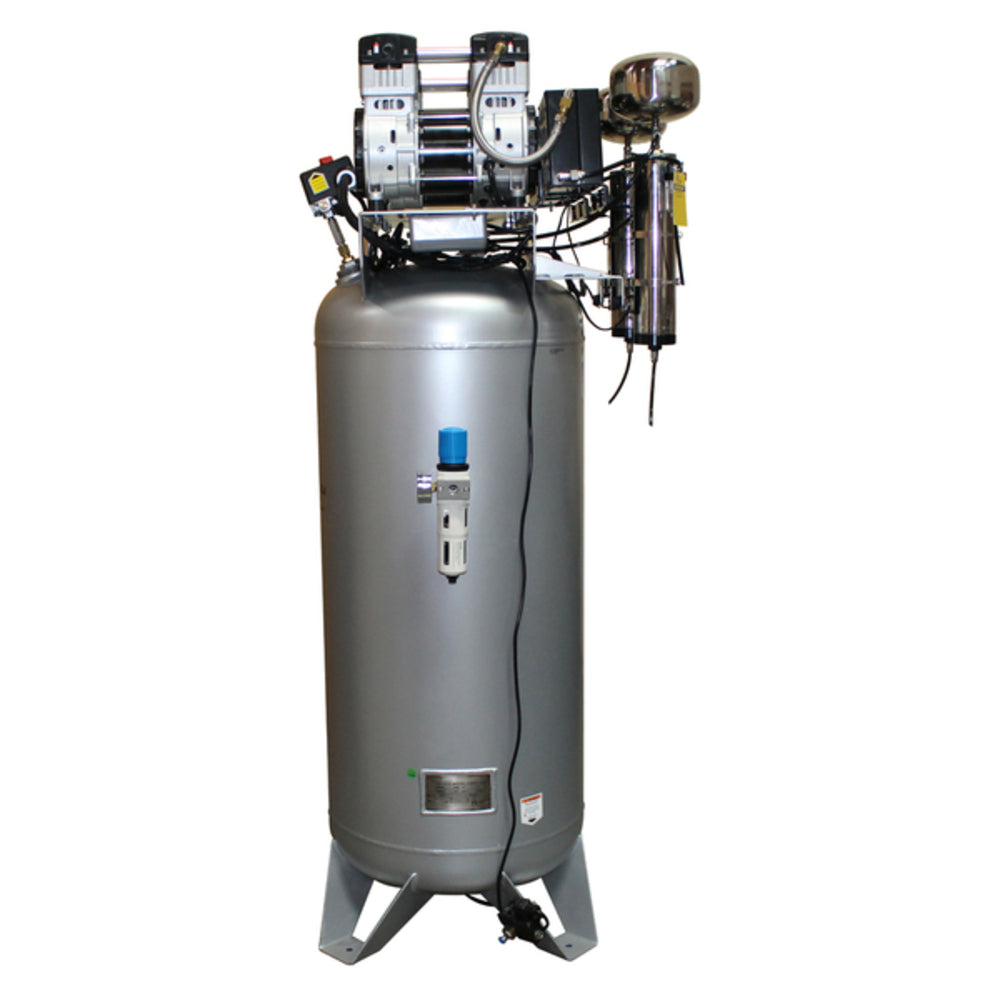

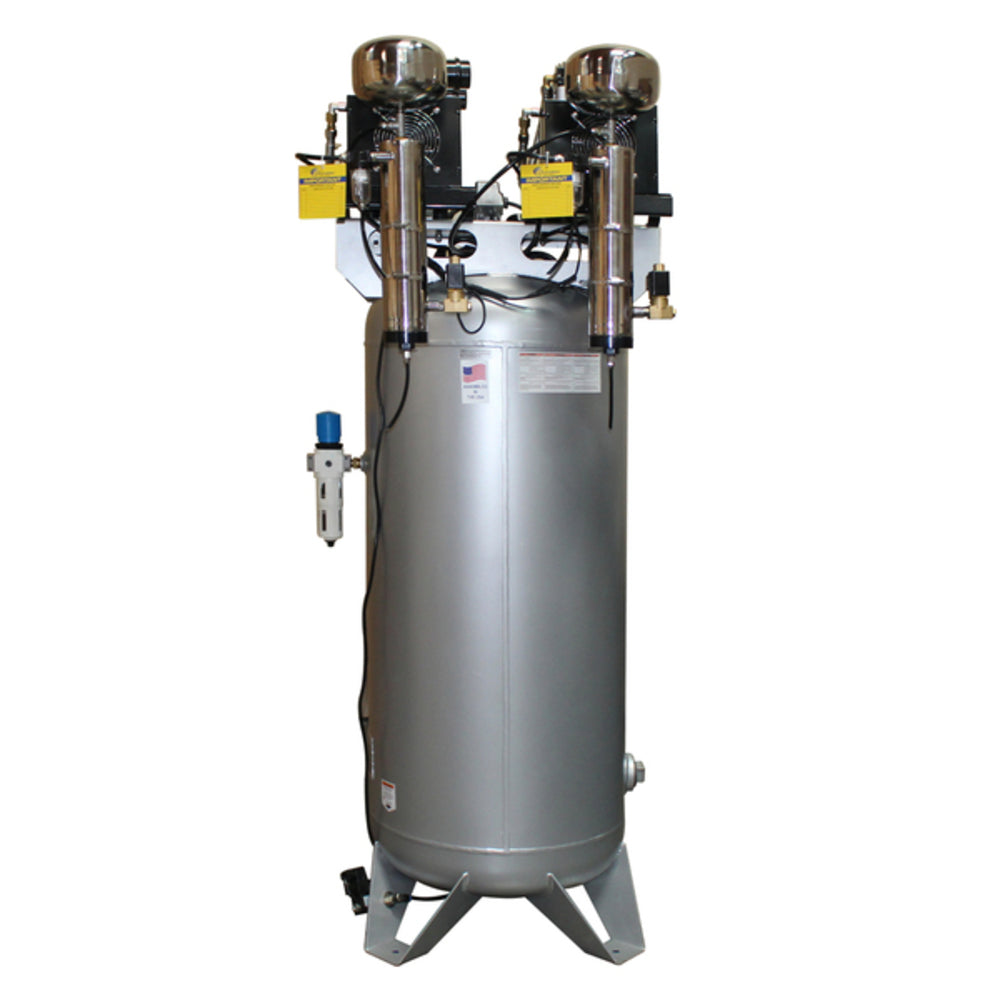

California Air Tools 60040DCAD Ultra Quiet & Oil-Free 4.0 HP 60 Gallon Air Compressor with 80% Air Drying System & Automatic Drain Valve – 220V

Product Description

The California Air Tools 60040DCAD is a powerful 4.0 HP ultra-quiet and oil-free stationary air compressor designed for applications requiring reliable airflow and reduced moisture in compressed air. It combines twin 2.0 HP motors with a large 60-gallon ASME-certified steel air tank and an integrated 80% air drying system.

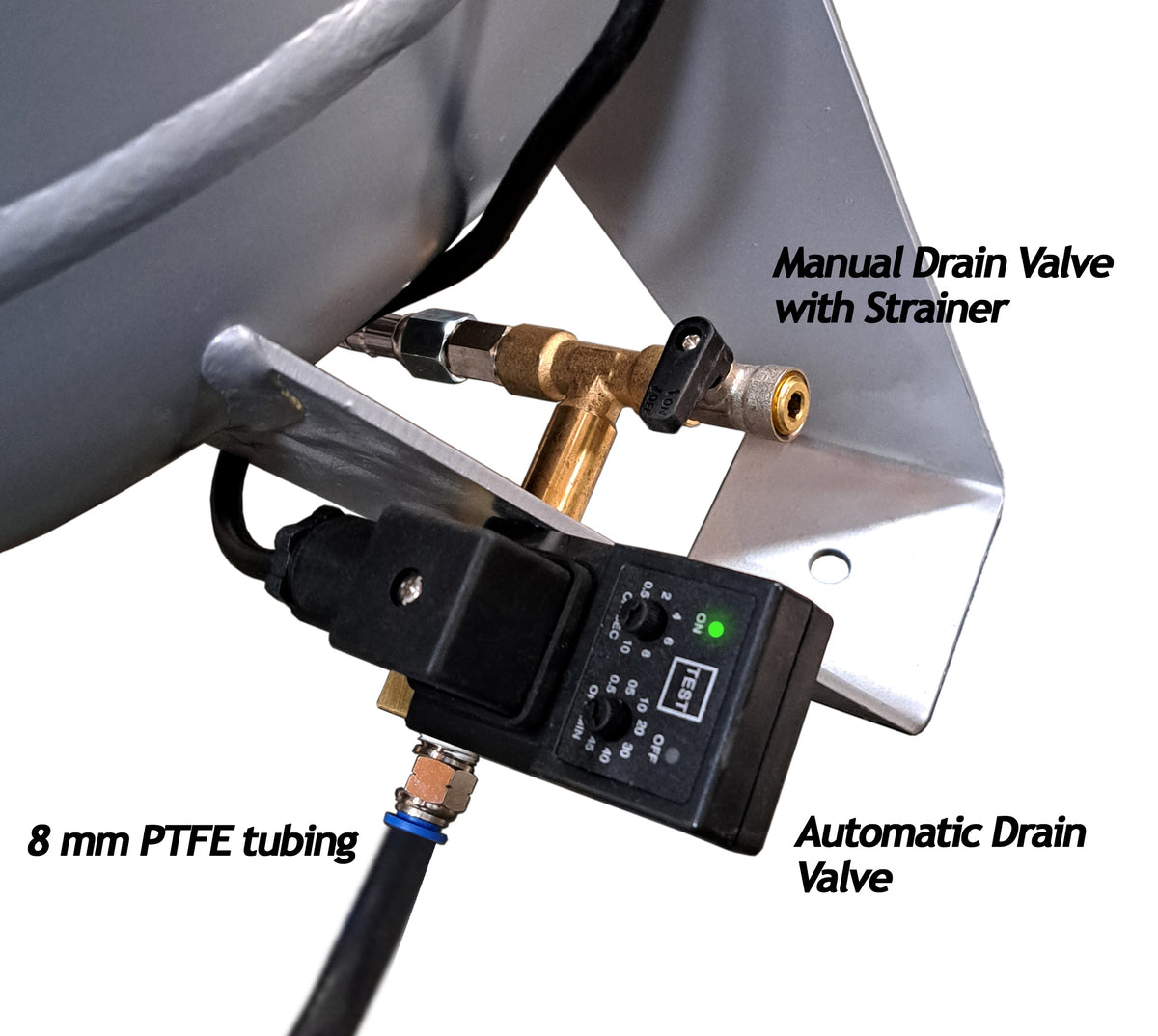

The integrated air drying system is designed to remove up to 80% of water vapor from compressed air, helping protect sensitive tools and machinery. An aftercooler condenses moisture from the compressed air before it enters the dryer, while the factory-installed EZ-1 automatic drain valve helps eliminate the need for manually draining the air tank.

Operating at only 75 dB, the 60040DCAD provides 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI. Its oil-free dual-piston pump is designed for a 3000+ hour life cycle before wear, making it suitable for professional shops, garages, dental applications, milling and other compressed-air applications.

Key Features

• 4.0 HP rated/running power
• Ultra-quiet 75 dB operation

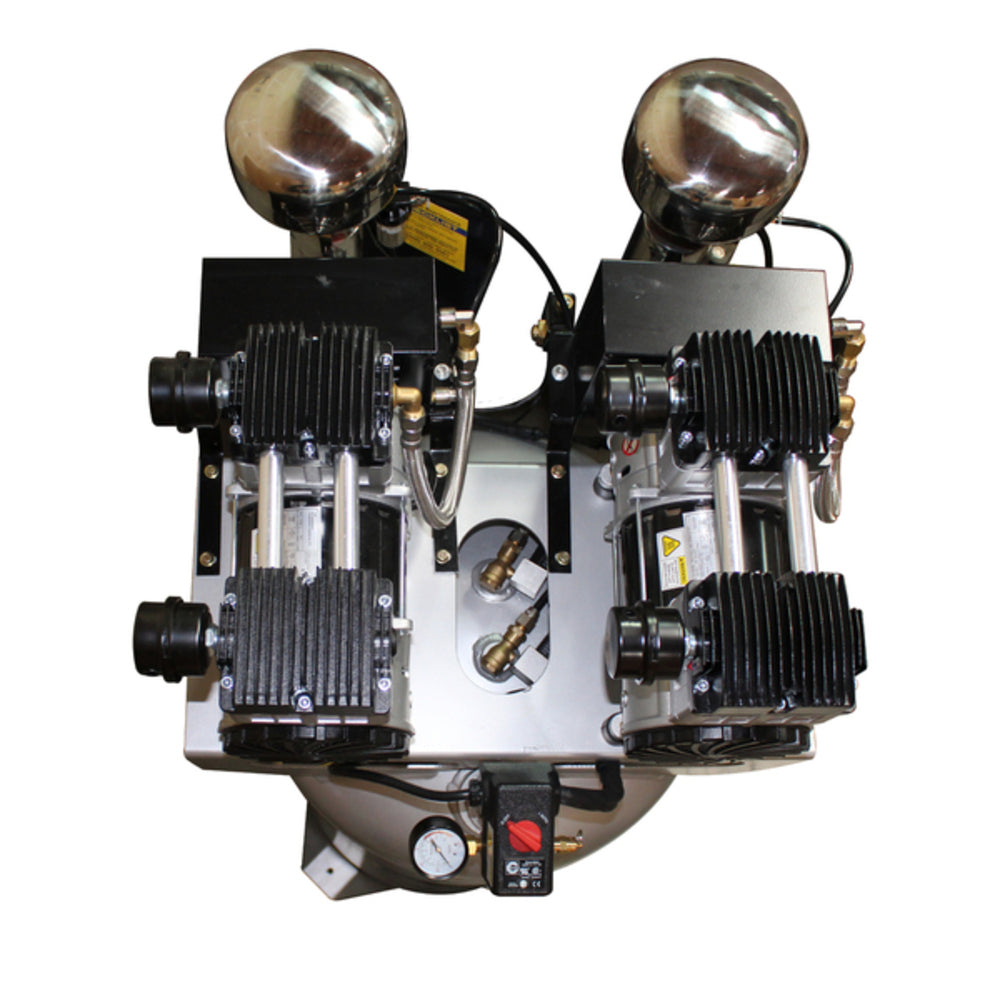

• Oil-free dual-piston pump system

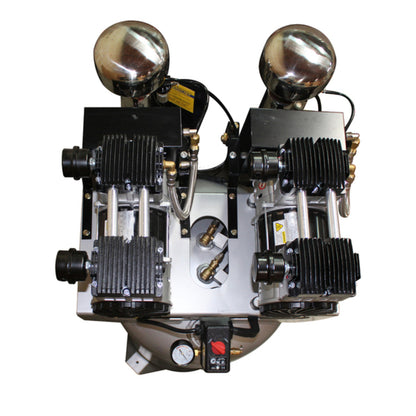

• Twin 2.0 HP motors operating at 1680 RPM
• 60-gallon ASME-certified steel air tank
• 80% air drying system
• Aftercooler/condenser for moisture removal
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure

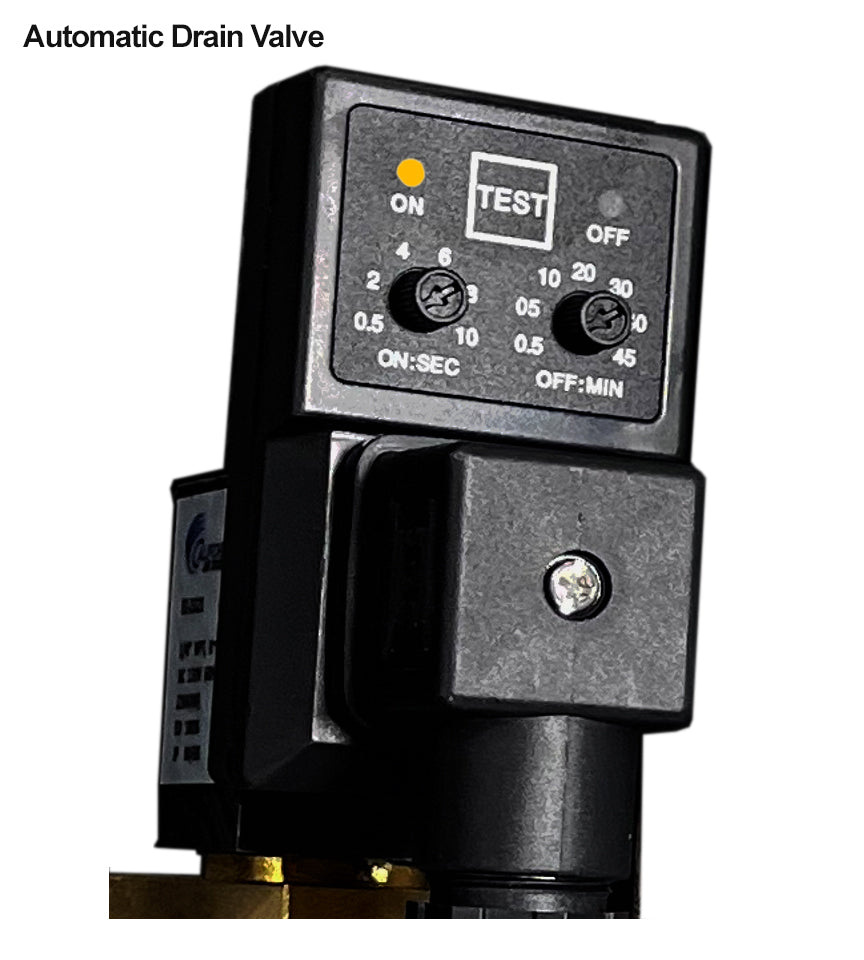

• Factory-installed EZ-1-2321 automatic drain valve
• 70/30 duty cycle
• Activated Alumina desiccant with approximately 4,000-hour life

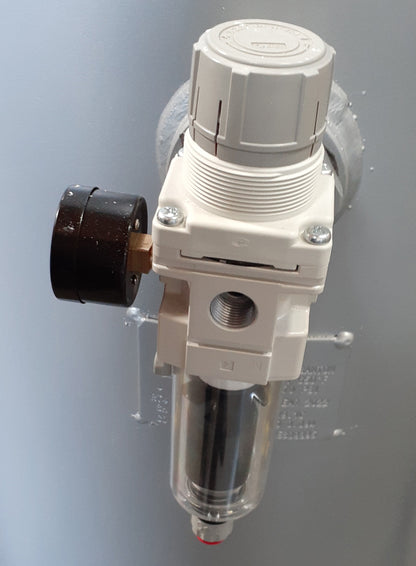

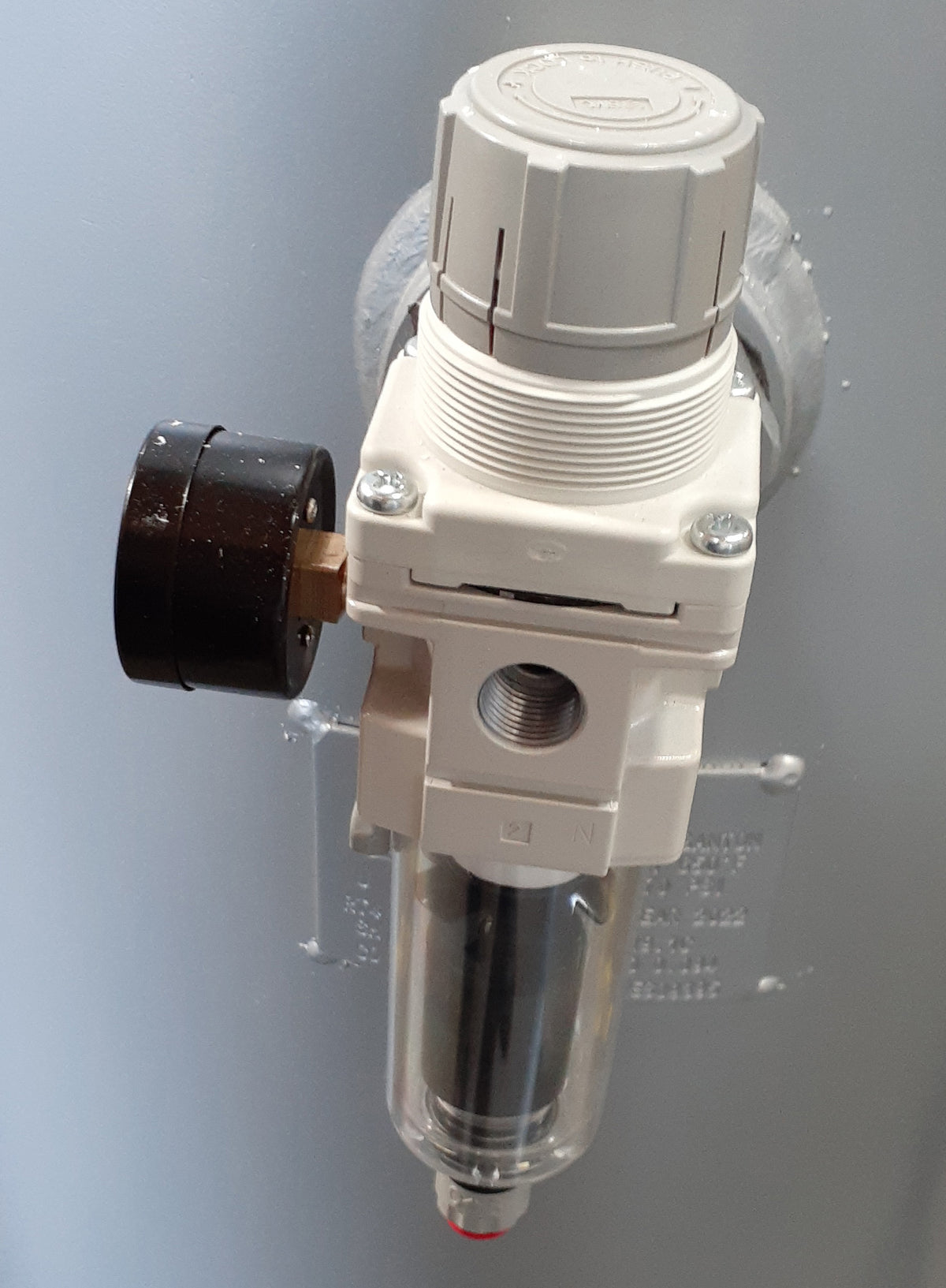

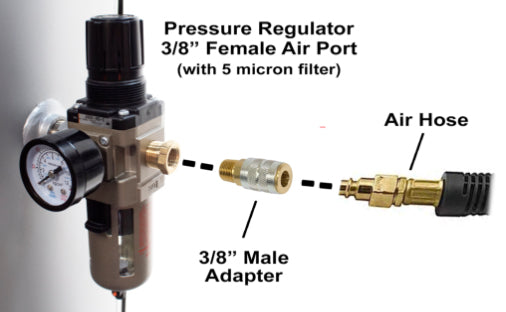

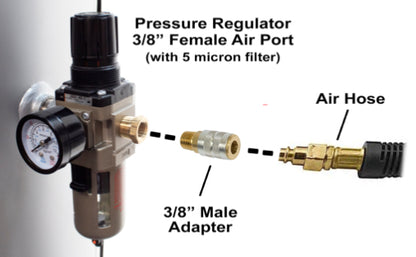

• 5-micron air filter and regulator with 3/8-inch port
• Two pressure control gauges
• Condor pressure switch
• Thermal overload protector
• Low 14-amp power draw
• ASME certified for commercial use
• NEMA 6-15P plug

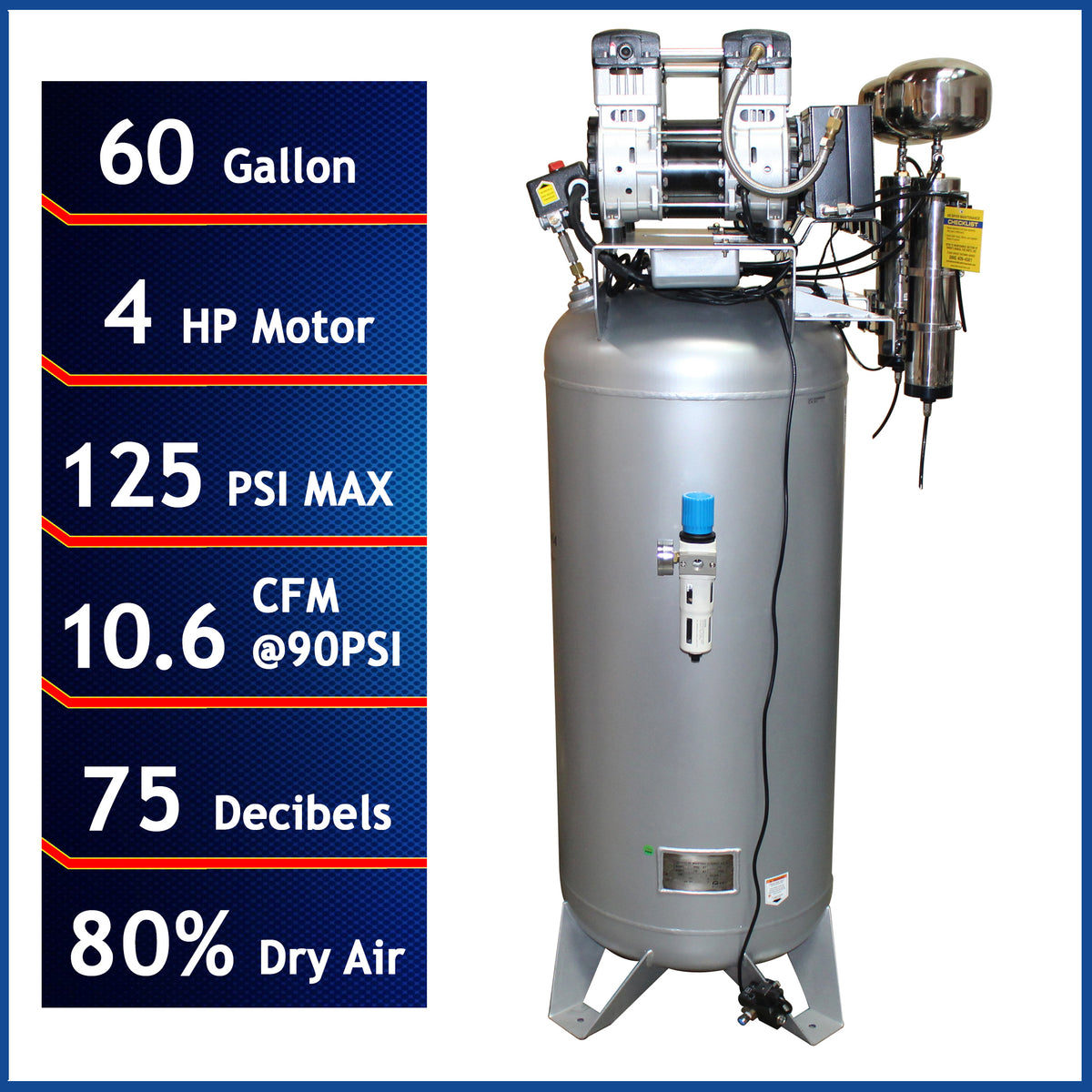

Specifications

• Brand: California Air Tools
• Model: 60040DCAD
• Motor Power: 4.0 HP
• Motor Configuration: Twin 2.0 HP motors
• Motor Speed: 1680 RPM
• Pump Type: Oil-Free Dual Piston
• Pump Life: 3000+ hours
• Tank Capacity: 60 gallons
• Tank Material: Steel
• Tank Certification: ASME Certified
• Tank Orientation: Vertical
• Noise Level: 75 dB
• Airflow: 12.80 CFM @ 40 PSI
• Airflow: 10.60 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current: 14 Amps
• Duty Cycle: 70/30
• Air Dryer: 80% Air Drying System
• Dryer Type: Desiccant / Activated Alumina
• Desiccant Life: Approximately 4,000 operating hours
• Air Filter: 5 Micron
• Air Hose Port: 3/8"
• Dimensions: 25.5" L × 29" W × 66.5" H
• Weight: 248 lbs
• Plug: NEMA 6-15P
• Automatic Drain Valve: EZ-1-2321
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 60040DCAD 4.0 HP Air Compressor
• 60-gallon ASME-certified steel air tank
• Integrated 80% air drying system
• Aftercooler/condenser
• Activated Alumina desiccant
• Factory-installed EZ-1-2321 automatic drain valve
• 5-micron air filter and regulator
• Four air filters
• NEMA 6-15P power plug

Applications

The California Air Tools 60040DCAD is designed for professional workshops, garages, dental offices, dental laboratories, dental milling applications, pneumatic tools, and other applications where reduced moisture in compressed air is important. The 60-gallon ASME tank provides substantial air storage for larger compressed-air requirements.

Maintenance

The oil-free pump eliminates the need for compressor oil changes and helps reduce routine maintenance. Replace the 80% air dryer desiccant approximately every 4,000 operating hours, or about every two years under average use. Replace the 2 HP motor air filters every two years, or annually when operating in dirty or dusty environments. The automatic drain valve helps remove accumulated moisture from the tank without requiring manual draining.
