California Air Tools 60040DCADC Ultra Quiet & Oil-Free 4.0 HP 60 Gallon Air Compressor with 98% Air Drying System & Automatic Drain Valve – 220V

Product Description

The California Air Tools 60040DCADC is a powerful 4.0 HP ultra-quiet, ultra-dry and oil-free stationary air compressor designed for applications requiring clean, dry compressed air. It combines twin 2.0 HP motors with a large 60-gallon ASME-certified steel air tank and an integrated 98% air drying system.

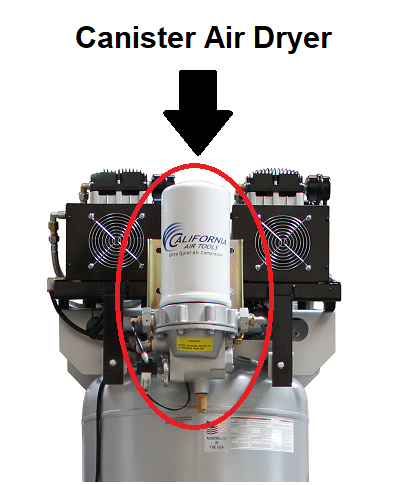

The 98% air dryer is designed to remove up to 98% of water vapor from compressed air, helping protect sensitive tools and machinery. The aftercooler condenses water vapor from the compressed air before it enters the dryer, while the replaceable molecular sieve desiccant cartridge provides a low-pressure-dew-point air supply. The factory-installed EZ-1-2321 automatic drain valve helps eliminate manual tank draining.

Operating at only 75 dB, the 60040DCADC delivers 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI. Its oil-free dual-piston pump is designed for a 3000+ hour life cycle before wear and operates at 1680 RPM for reduced noise and wear.

Key Features

• 4.0 HP rated/running power
• Ultra-quiet 75 dB operation
• Oil-free dual-piston pump system
• Twin 2.0 HP motors operating at 1680 RPM
• 60-gallon ASME-certified steel air tank
• 98% air drying system
• Air dryer cartridge system with high-temperature molecular sieve desiccant
• Aftercooler/condenser for moisture removal
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure
• ISO 8573 Class 2.3.1 air quality
• PDP performance range of -20°F to -51°F

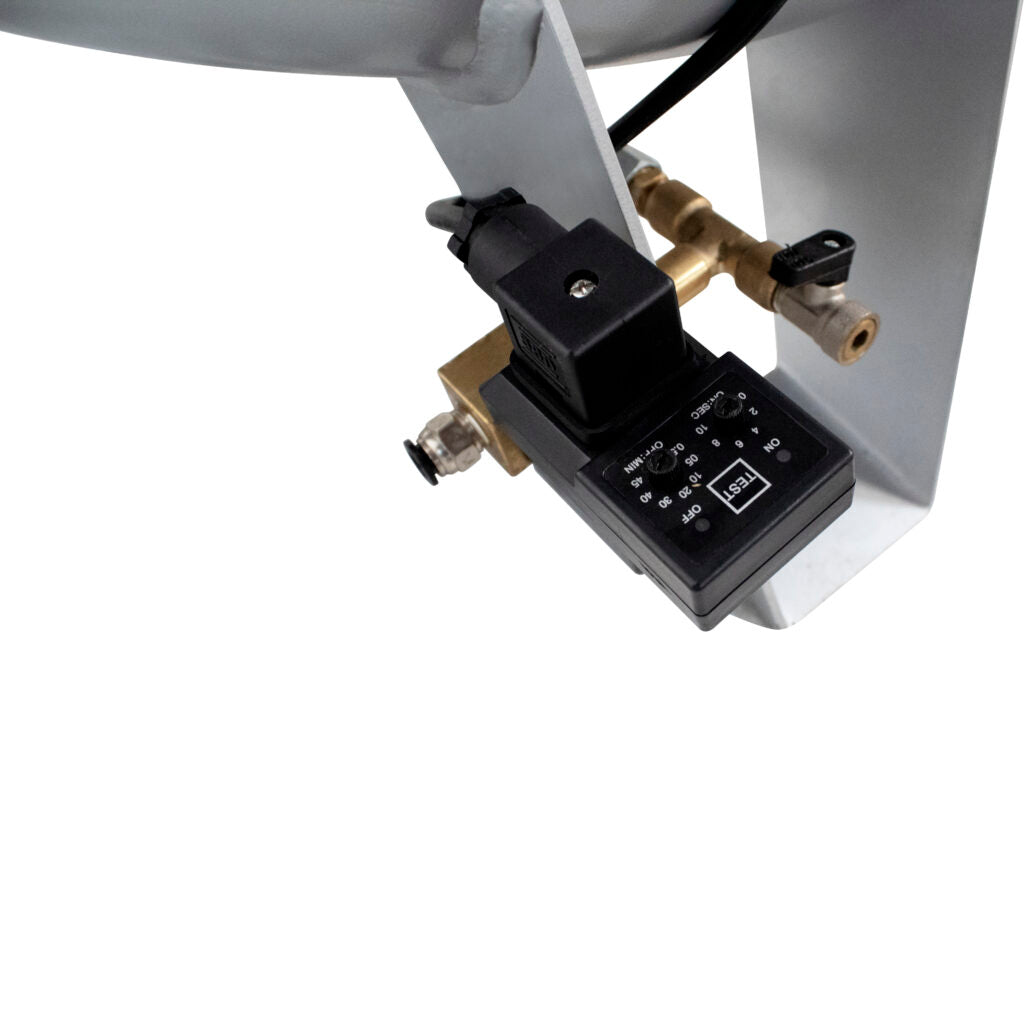

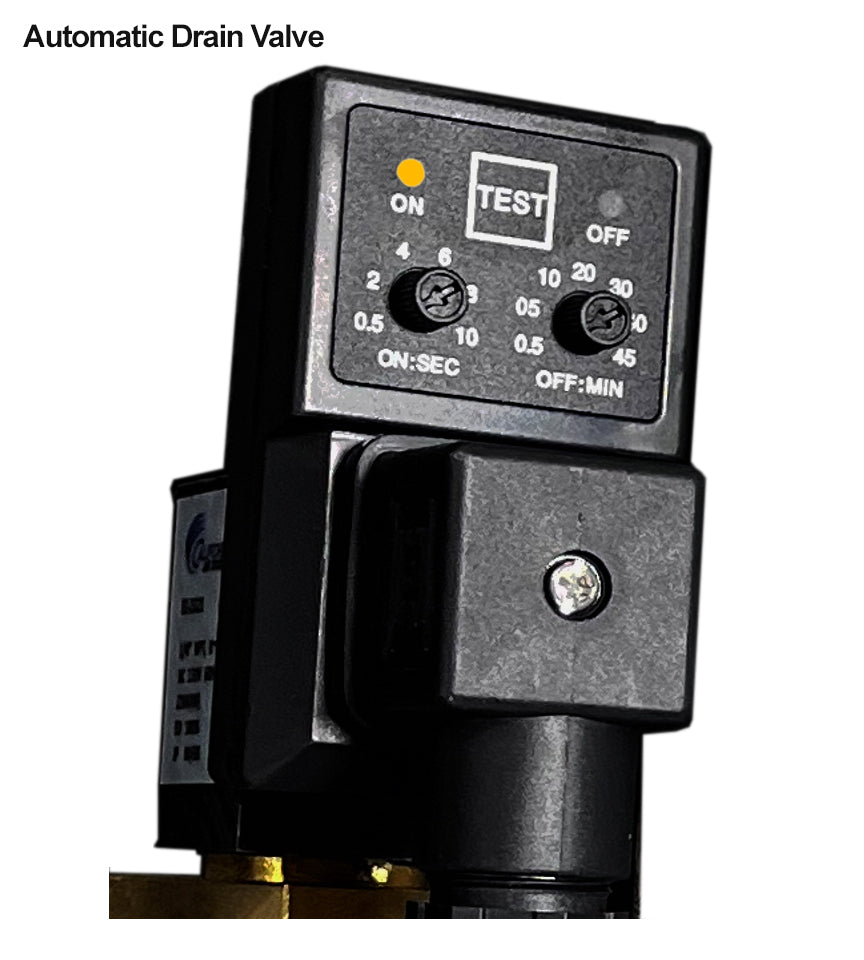

• Factory-installed EZ-1-2321 automatic drain valve
• Two 0.01-micron prefilters
• 5-micron air filter and regulator with 3/8-inch port
• Two pressure control gauges
• 70/30 duty cycle
• Thermal overload protector
• Low 14-amp draw
• NEMA 6-15P plug

Specifications

• Brand: California Air Tools
• Model: 60040DCADC
• Motor Power: 4.0 HP
• Motor Configuration: Twin 2.0 HP motors
• Motor Speed: 1680 RPM
• Pump Type: Oil-Free Dual Piston
• Pump Life: 3000+ hours
• Tank Capacity: 60 gallons
• Tank Material: Steel
• Tank Certification: ASME Certified
• Noise Level: 75 dB
• Airflow: 12.80 CFM @ 40 PSI
• Airflow: 10.60 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current: 14 Amps
• Duty Cycle: 70/30
• Air Dryer: 98% Air Drying System
• Dryer Type: Molecular Sieve Desiccant Cartridge
• Desiccant Cartridge Life: Approximately 4,000 operating hours / 2 years
• Air Quality: ISO 8573 Class 2.3.1
• PDP Performance Range: -20°F to -51°F
• Prefilters: Two 0.01-Micron Prefilters
• Air Filter: 5 Micron
• Air Hose Port: 3/8"
• Dimensions: 27" L × 31" W × 66.5" H
• Weight: 241 lbs
• Plug: NEMA 6-15P
• Automatic Drain Valve: EZ-1-2321
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 60040DCADC 4.0 HP Air Compressor
• 60-gallon ASME-certified steel air tank
• Integrated 98% air drying system
• Air dryer cartridge with molecular sieve desiccant
• Aftercooler/condenser
• Two 0.01-micron prefilters
• 5-micron air filter and regulator
• Factory-installed EZ-1-2321 automatic drain valve
• Four air filters
• NEMA 6-15P power plug

Applications

The California Air Tools 60040DCADC is designed for applications requiring clean, ultra-dry compressed air, including dental offices, dental laboratories, dental milling, surgical applications, manufacturing clean rooms, restaurants and general engineering applications. Its 60-gallon ASME-certified tank also makes it suitable for professional shops and commercial environments.

Maintenance

The oil-free pump eliminates the need for compressor oil changes and helps reduce routine maintenance. Replace the 98% air dryer cartridge every 4,000 operating hours, approximately every two years under average use. Replace the 2 HP motor air filters every two years, or annually when operating in dirty or dusty environments. The automatic drain valve should be checked periodically to ensure proper moisture removal.
