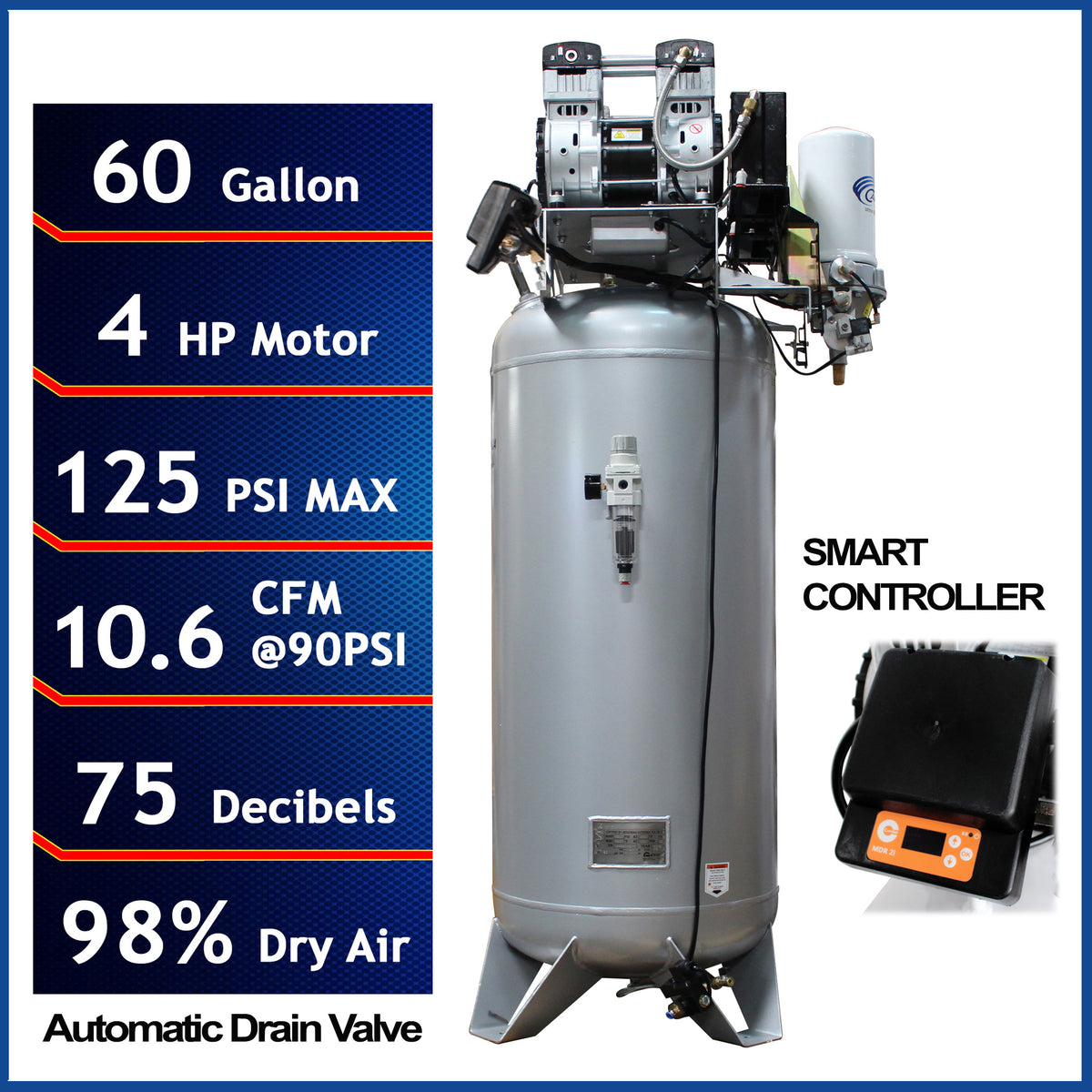

California Air Tools 60040DSMADC SMART Ultra Quiet & Oil-Free 4.0 HP 60 Gallon Air Compressor with 98% Air Dryer & Automatic Drain Valve – 220V

Product Description

The California Air Tools 60040DSMADC is a powerful 4.0 HP SMART, ultra-quiet and oil-free stationary air compressor featuring a 60-gallon ASME-certified steel tank, integrated 98% air drying system and automatic drain valve. It is designed for users who need clean, ultra-dry compressed air together with remote monitoring and control capabilities.

The integrated 98% air dryer uses an aftercooler and replaceable high-temperature molecular sieve desiccant cartridge to remove water vapor from compressed air. The system provides ISO 8573 Class 2.3.1 air quality and a PDP performance range of -20°F to -51°F, making it suitable for sensitive applications.

The MDR2i OLED SMART Controller provides remote monitoring and control through a mobile phone, tablet, notebook or computer. It can operate as an access point or connect to a Wi-Fi network, allowing users to adjust compressor parameters and monitor operating conditions remotely.

Key Features

• 4.0 HP rated/running power

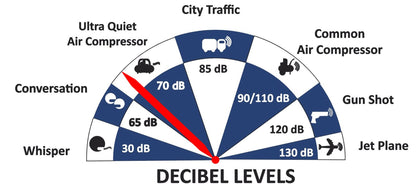

• Ultra-quiet 75 dB operation
• Oil-free dual-piston pump system
• Twin 2.0 HP motors operating at 1680 RPM
• 60-gallon ASME-certified steel air tank
• Integrated 98% air drying system
• ISO 8573 Class 2.3.1 compliant air quality
• Air dryer cartridge with high-temperature molecular sieve desiccant
• Aftercooler/condenser for moisture removal
• MDR2i OLED SMART Controller
• Remote monitoring and control
• Wi-Fi connectivity or controller access-point operation
• Programmable ON/OFF times
• Adjustable pressure ON and OFF levels
• Programmable unloader relay delay
• Programmable automatic drain and drain valve timing
• Overcurrent limit adjustment
• Total motor-pump running hours monitoring
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum working pressure
• Automatic EZ-1-2301 drain valve
• Two 0.01-micron prefilters
• 5-micron air filter and regulator
• Two Easy Start Valves for reduced starting amperage
• 70/30 duty cycle

Specifications

• Brand: California Air Tools
• Model: 60040DSMADC
• Motor Power: 4.0 HP
• Motor Configuration: Twin 2.0 HP motors
• Motor Speed: 1680 RPM
• Pump Type: Oil-Free Dual Piston
• Pump Life: 3000+ hours
• Tank Capacity: 60 gallons
• Tank Material: Steel
• Tank Certification: ASME Certified
• Tank Orientation: Vertical
• Noise Level: 75 dB
• Airflow: 12.80 CFM @ 40 PSI
• Airflow: 10.60 CFM @ 90 PSI
• Working Pressure: 90–120 PSI (+/-5 PSI)
• Adjustable Maximum Kick-On: 105 PSI
• Maximum Kick-Off: 130 PSI
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Acceptable Voltage Range: 215V–250V
• Current: 14 Amps
• Required Breaker: 30 Amp
• Duty Cycle: 70/30
• Air Dryer: 98% Air Drying System
• Air Quality: ISO 8573 Class 2.3.1
• PDP Performance Range: -20°F to -51°F
• Dryer Type: Molecular Sieve Desiccant Cartridge
• Dryer Cartridge Life: Approximately 4,000 operating hours / 2 years
• Prefilters: Two 0.01-Micron Prefilters
• Air Filter: 5 Micron
• Air Port: 3/8" NPT Female
• Automatic Drain Valve: EZ-1-2301
• Dimensions: 25.5" L × 29" W × 66.5" H
• Weight: 248 lbs
• Plug: NEMA 6-15P
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 60040DSMADC 4.0 HP SMART Air Compressor
• 60-gallon ASME-certified steel air tank
• MDR2i OLED SMART Controller
• Integrated 98% air drying system
• High-temperature molecular sieve desiccant dryer cartridge
• Aftercooler/condenser
• Two 0.01-micron prefilters
• 5-micron air filter and regulator
• EZ-1-2301 automatic drain valve
• Four air filters
• NEMA 6-15P power plug

Applications

The California Air Tools 60040DSMADC is designed for applications requiring clean, ultra-dry compressed air and smart compressor control. Ideal applications include dental practices, dental laboratories, dental milling, biotechnology, manufacturing, packaging, restaurants and general engineering environments.

Maintenance

The oil-free pump eliminates the need for compressor oil changes. Replace the 98% air dryer cartridge every 4,000 operating hours, approximately every two years under average use. Replace the 2 HP motor air filters every two years, or annually when operating in dirty or dusty environments. Periodically inspect the automatic drain system, filters, electrical connections and air lines. The SMART Controller can also be used to monitor operating hours and compressor parameters.
