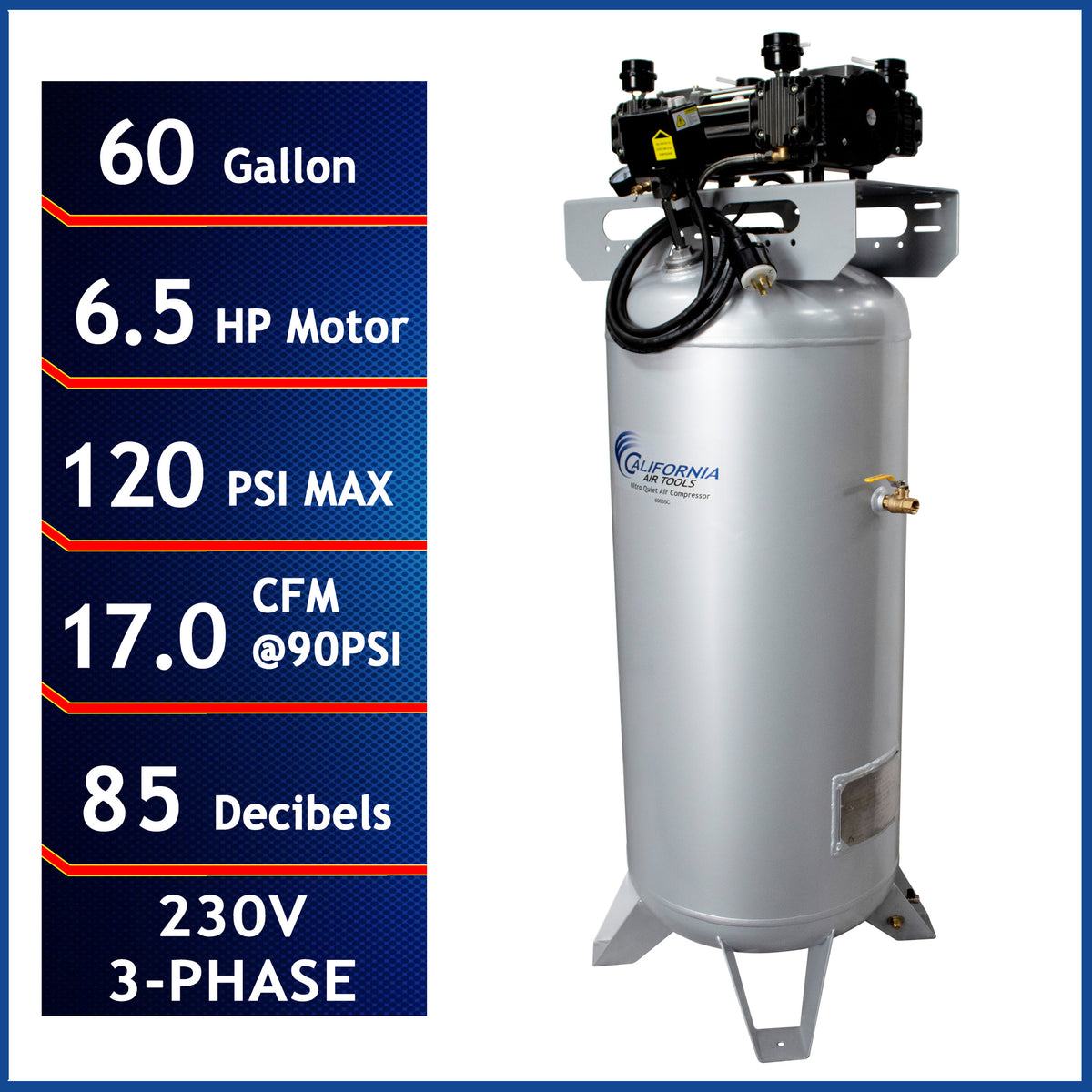

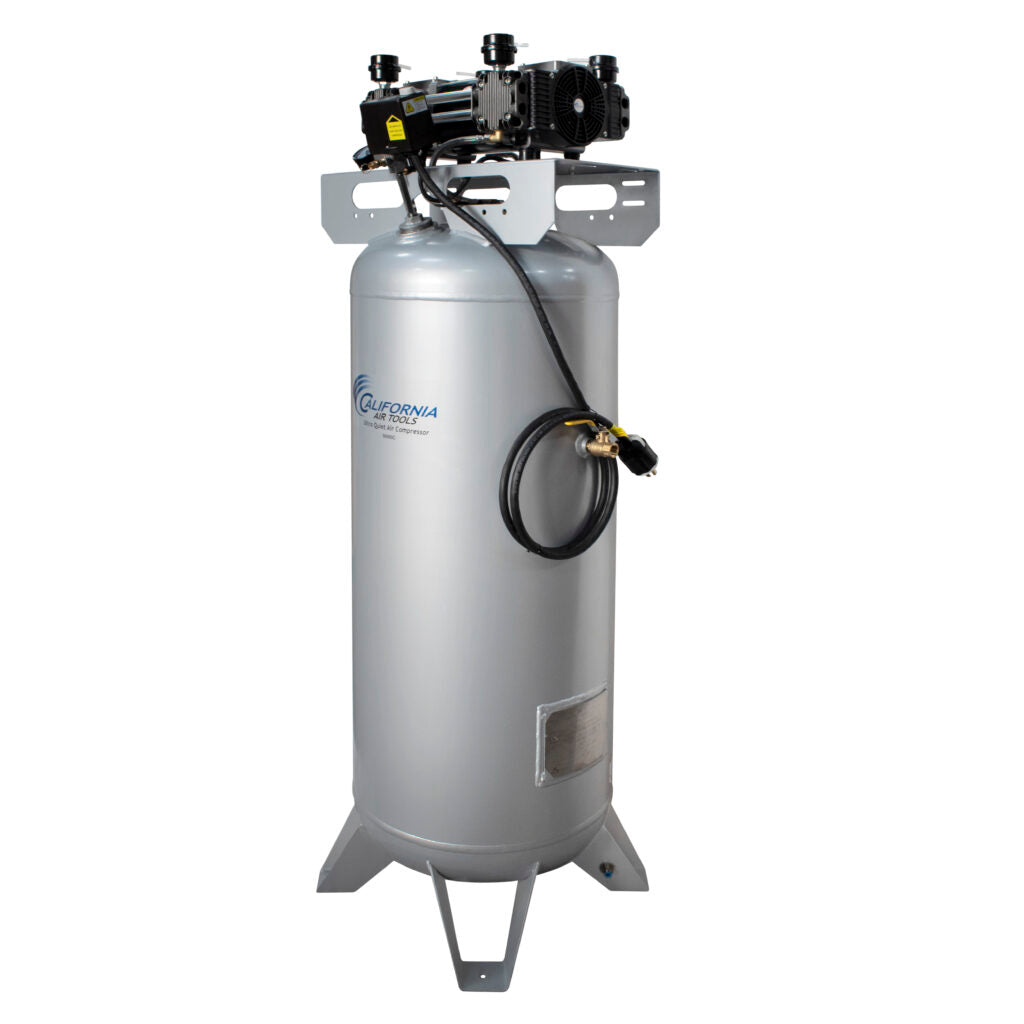

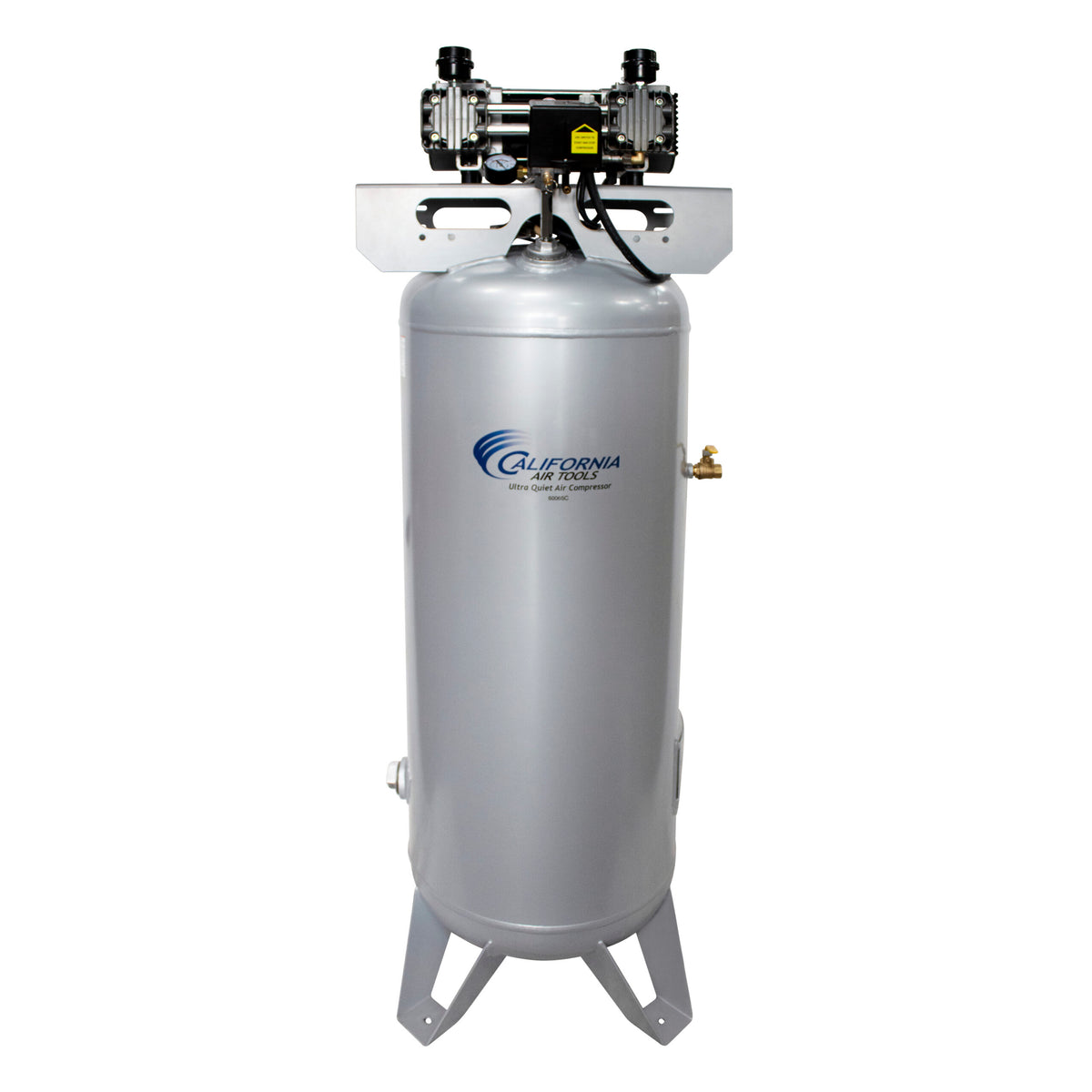

California Air Tools 60065C Ultra Quiet & Oil-Free 6.5 HP 60 Gallon ASME Air Compressor – 208/230V 3-Phase

Product Description

The California Air Tools 60065C is a powerful 6.5 HP ultra-quiet and oil-free stationary air compressor designed for professional shops, garages, industrial environments, and applications requiring high airflow with reduced maintenance. It features a large 60-gallon ASME-certified steel air tank and the OLF-3500 oil-free dual-piston motor/pump system.

The 6.5 HP motor/pump operates at only 1700 RPM, helping reduce noise, vibration, heat and wear while supporting longer continuous run times. The compressor delivers 20.0 CFM at 40 PSI and 17.0 CFM at 90 PSI while producing approximately 85 dB of operating noise.

The 60065C uses a 208/230V, 60Hz, 3-phase electrical configuration and is rated at 15 amps. The large ASME-certified 60-gallon tank provides substantial air storage for demanding compressed-air applications.

Key Features

• 6.5 HP rated/running power
• Ultra-quiet 85 dB operation
• Oil-free dual-piston pump system

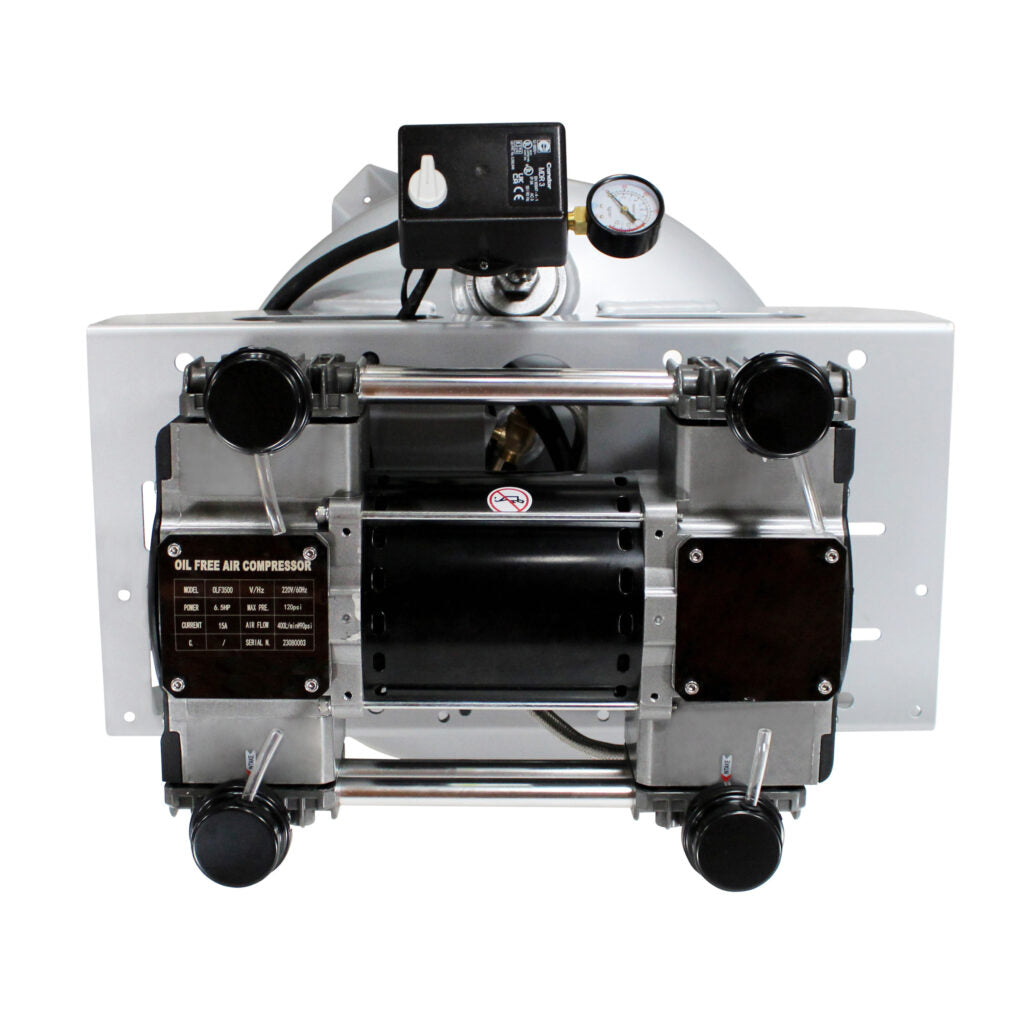

• OLF-3500 6.5 HP motor/pump
• Motor/pump operates at 1700 RPM
• 60-gallon ASME-certified steel air tank
• 20.0 CFM at 40 PSI
• 17.0 CFM at 90 PSI
• 120 PSI maximum pressure
• 155 PSI-rated ASME air tank
• 70/30 duty cycle
• Thermal overload protection

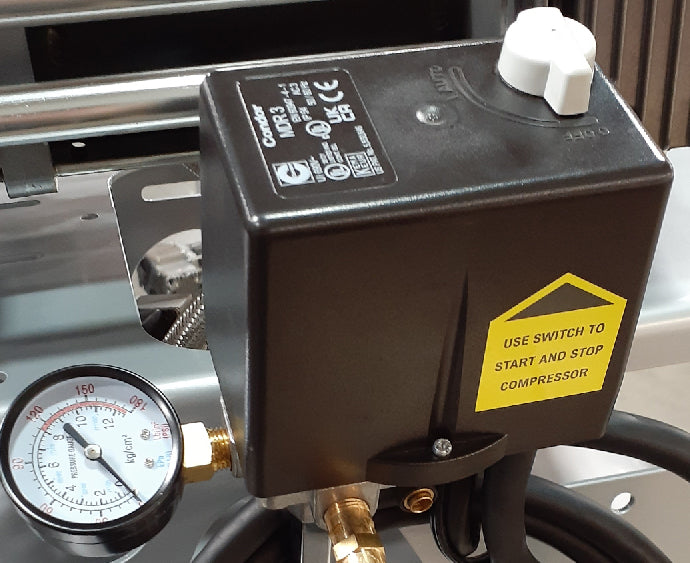

• One tank pressure gauge
• 1/2-inch NPT female air port
• Manual drain valve with strainer cleanout
• Four air filters included
• Low-vibration oil-free pump design
• Designed for longer continuous run times
• NEMA L15-20P plug

Specifications

• Brand: California Air Tools
• Model: 60065C
• Motor Power: 6.5 HP
• Motor/Pump: OLF-3500
• Motor Speed: 1700 RPM
• Pump Type: Oil-Free Dual Piston
• Pump Life: 3000+ hours
• Tank Capacity: 60 gallons
• Tank Material: Steel
• Tank Certification: ASME Certified
• Tank Orientation: Vertical
• Tank Rating: 155 PSI
• Noise Level: 85 dB
• Airflow: 20.0 CFM @ 40 PSI
• Airflow: 17.0 CFM @ 90 PSI
• Maximum Compressor Pressure: 120 PSI
• Voltage: 208/230V
• Frequency: 60 Hz
• Phase: 3-Phase
• Current: 15 Amps
• Acceptable Voltage Range: 200–250V
• Recommended Breaker: 20 Amp
• Duty Cycle: 70/30
• Air Port: 1/2" NPT Female
• Drain: Manual Drain Valve with Strainer Cleanout
• Dimensions: 32.5" L × 28" W × 60.5" H
• Weight: 260 lbs
• Plug: NEMA L15-20P
• Cord Length: 7 ft
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 60065C 6.5 HP Air Compressor
• 60-gallon ASME-certified steel air tank
• OLF-3500 oil-free motor/pump
• Four air filters
• Manual drain valve with strainer cleanout
• NEMA L15-20P power plug
• 7-foot power cord

Applications

The California Air Tools 60065C is designed for professional workshops, garages, industrial applications, automotive work, pneumatic tools, sanding, grinding, painting and other applications requiring higher compressed-air flow. The 60-gallon ASME tank provides substantial air storage for demanding shop environments.

Maintenance

The oil-free pump eliminates the need for compressor oil changes and helps reduce routine maintenance. California Air Tools recommends servicing or replacing the piston seals every 2,000 operating hours. Replace the motor-pump air filters every two years, or annually when operating in dirty or dusty environments. Regularly inspect the manual drain valve, strainer, air connections and electrical components.
