California Air Tools 6010LFC 1.0 HP Ultra Quiet Oil-Free Lightweight 6 Gallon Air Compressor

Product Description

The California Air Tools 6010LFC is a 1.0 HP ultra-quiet, oil-free air compressor from the Industrial Series. Designed for applications where low noise, portability, and reliable compressed air are important, this compressor features a 6.0-gallon air tank and operates at only 60 dB.

The long-life MP100LF dual piston motor/pump operates at 1,400 RPM, helping reduce noise and wear while delivering 4.00 CFM at 40 PSI and 3.00 CFM at 90 PSI. The oil-free pump design provides cleaner compressed air while reducing maintenance requirements.

With a 125 PSI maximum pressure, 110V/60Hz single-phase power, and a 70/30 duty cycle, the 6010LFC is well suited for indoor workspaces, workshops, contractors, and applications where quiet operation is important.

Key Features

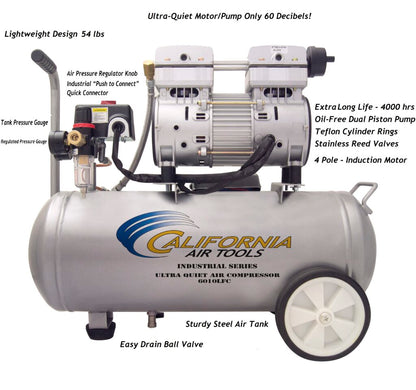

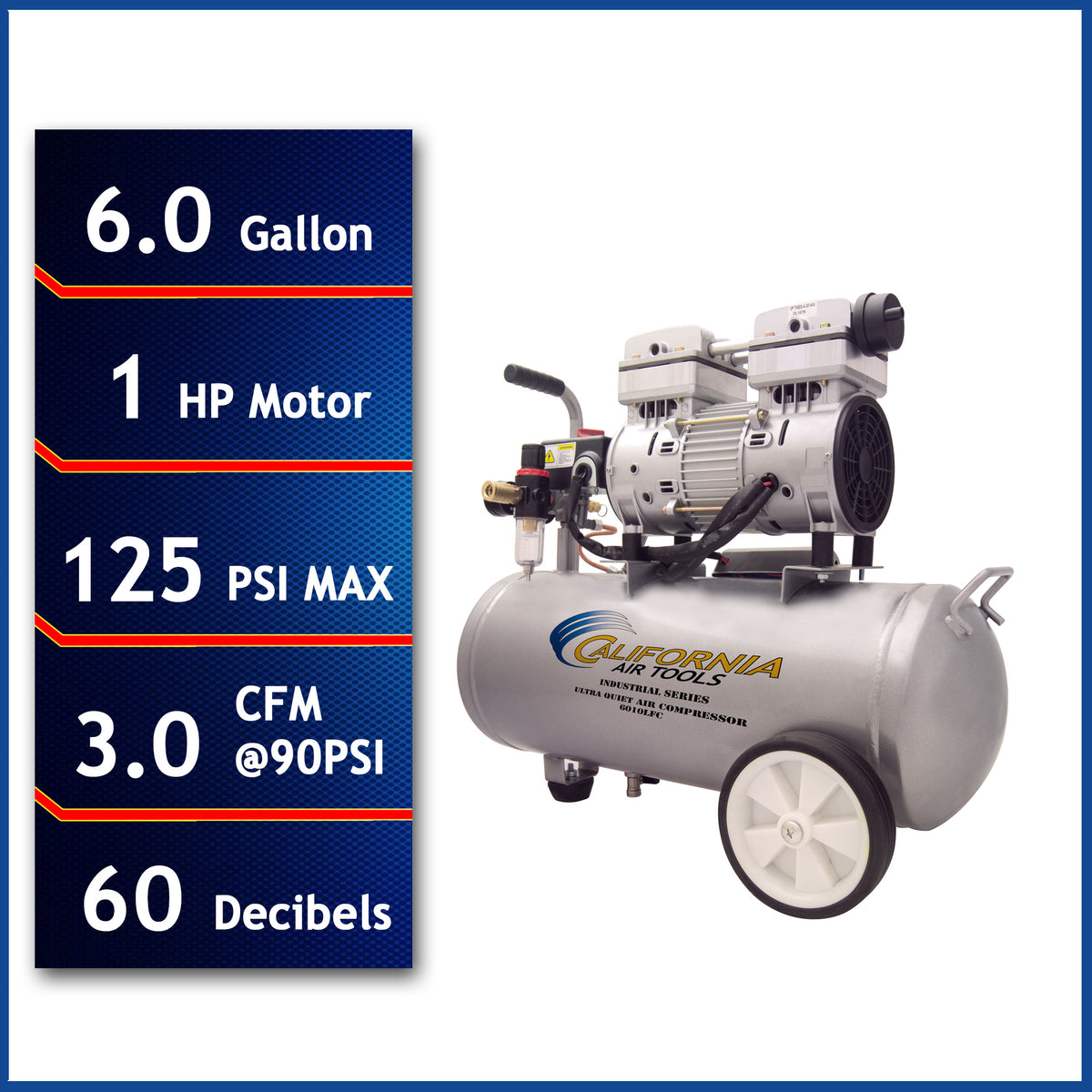

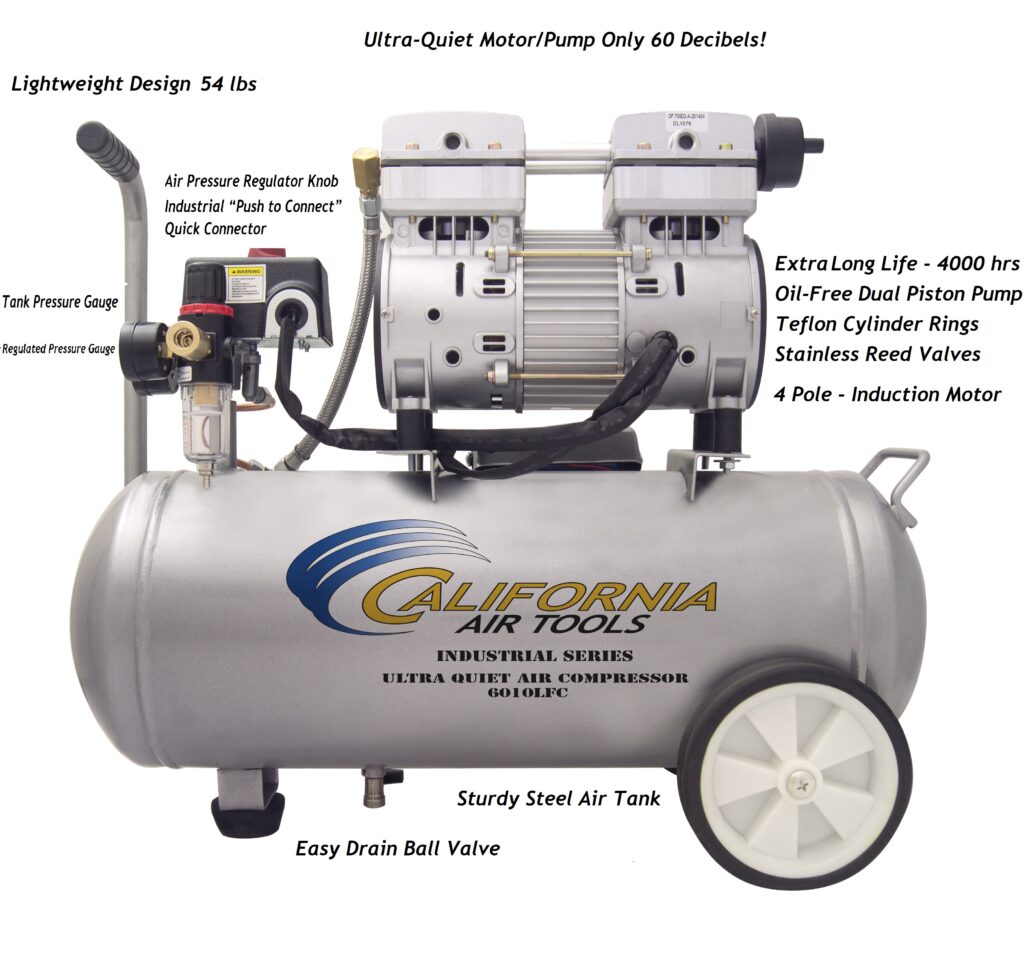

• 1.0 HP rated/running motor with 2.0 HP peak power
• Ultra-quiet operation at only 60 dB
• Oil-free dual piston pump
• 6.0-gallon air tank
• 4.00 CFM at 40 PSI
• 3.00 CFM at 90 PSI
• 125 PSI maximum pressure
• Long-life MP100LF motor/pump
• 1,400 RPM motor speed
• 70/30 duty cycle
• 110V / 60 Hz / single phase
• Low 7.6 amp current draw
• Thermal overload protector
• Condor pressure switch
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Lightweight 6-gallon tank design
• Tank fill time of approximately 125 seconds
• Recovery time from 90 PSI to 120 PSI of approximately 20 seconds

Specifications

What's Included

• California Air Tools 6010LFC Air Compressor
• Air Filter
• Two Pressure Control Gauges
• Female Industrial Push-to-Connect Quick Connector

Applications

The 6010LFC is ideal for indoor workspaces, workshops, contractors, pneumatic tools, and other applications where quiet operation and clean compressed air are important. Its 60 dB operating noise level makes it suitable for environments where compressor noise is a concern.

Maintenance

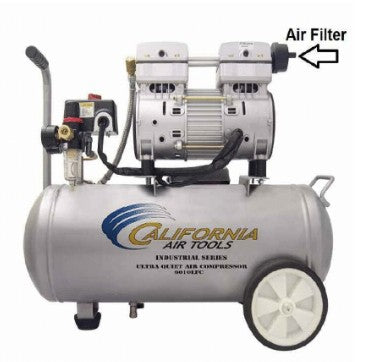

Replace the 1 HP air filter every 2 years, or annually when the compressor is exposed to a dirty or dusty environment. The oil-free pump eliminates the need for regular compressor oil changes. Periodically inspect the air filter, fittings, electrical connections, and compressor components according to the manufacturer's maintenance recommendations.
