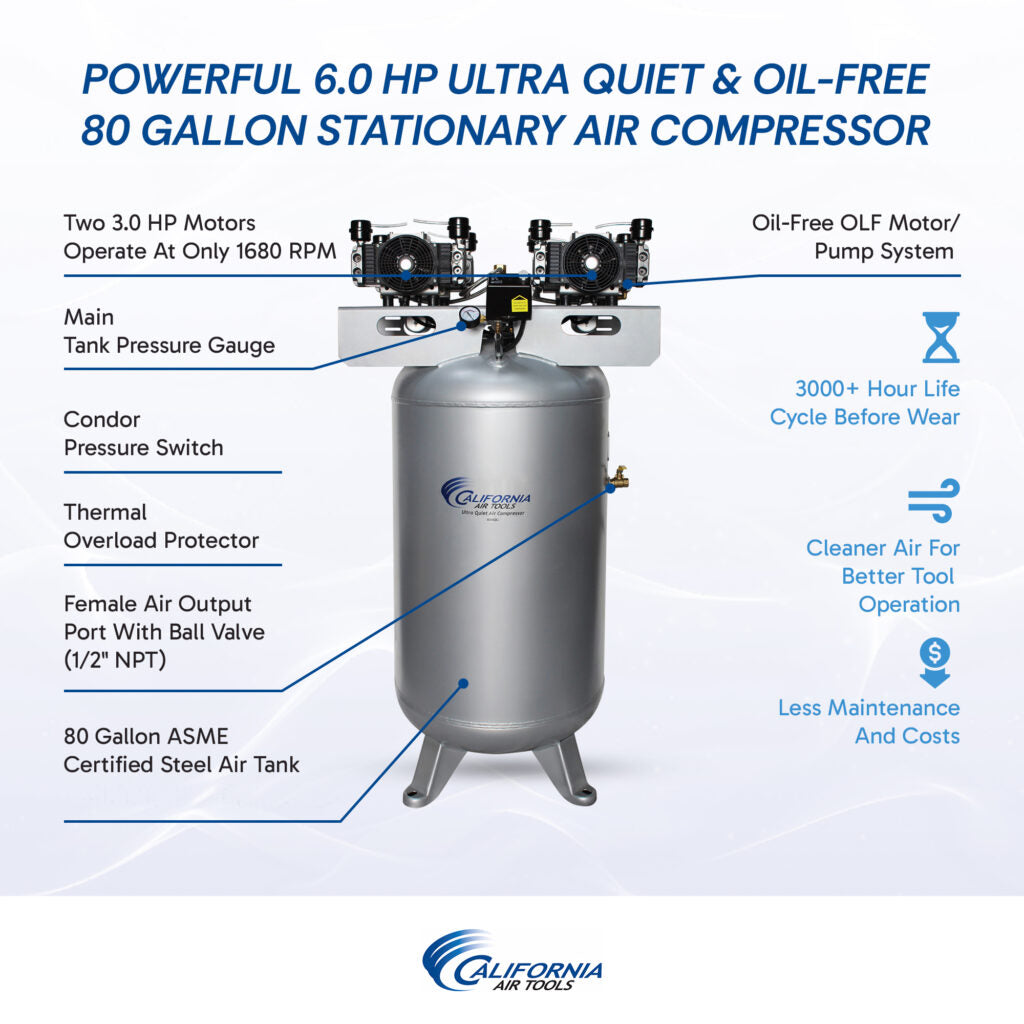

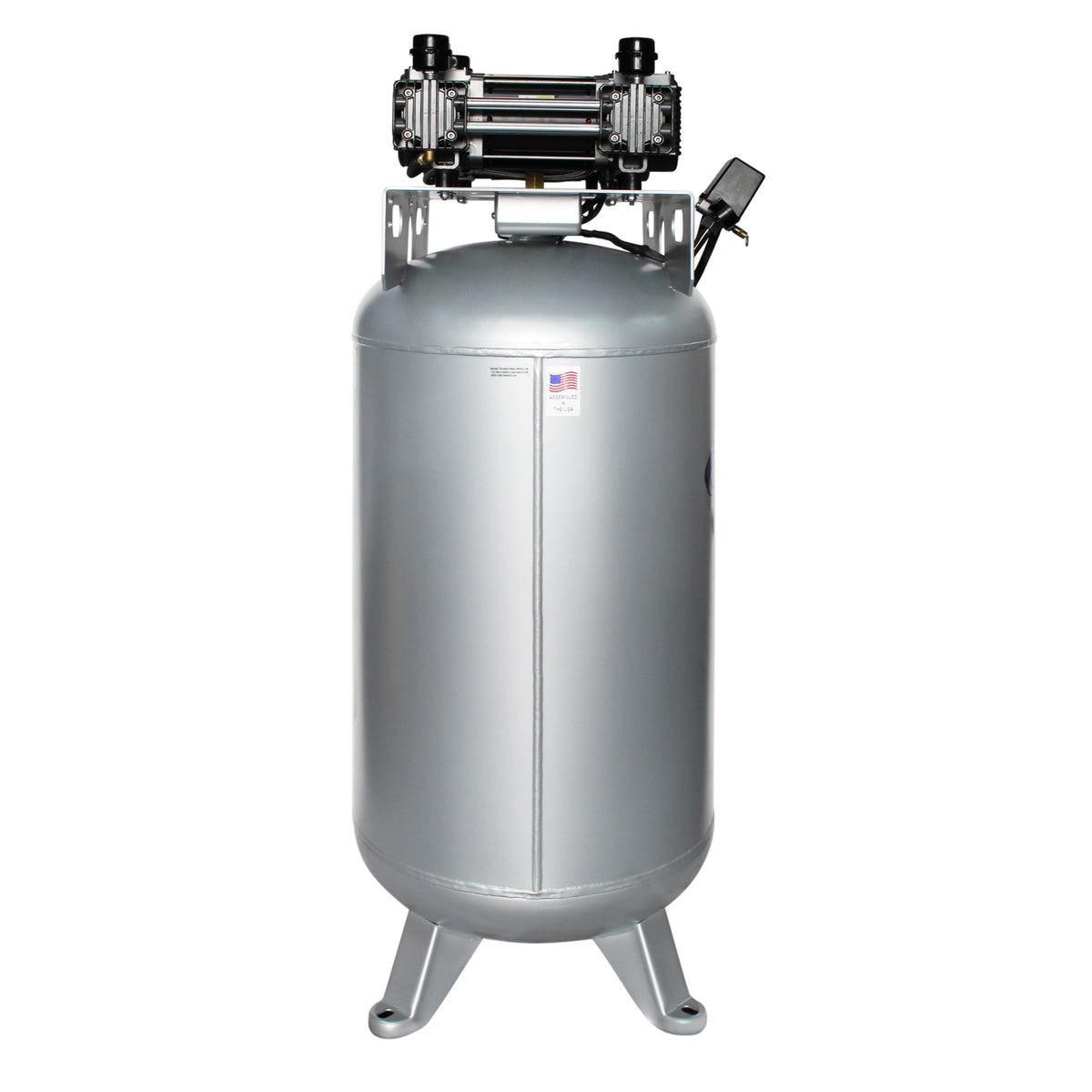

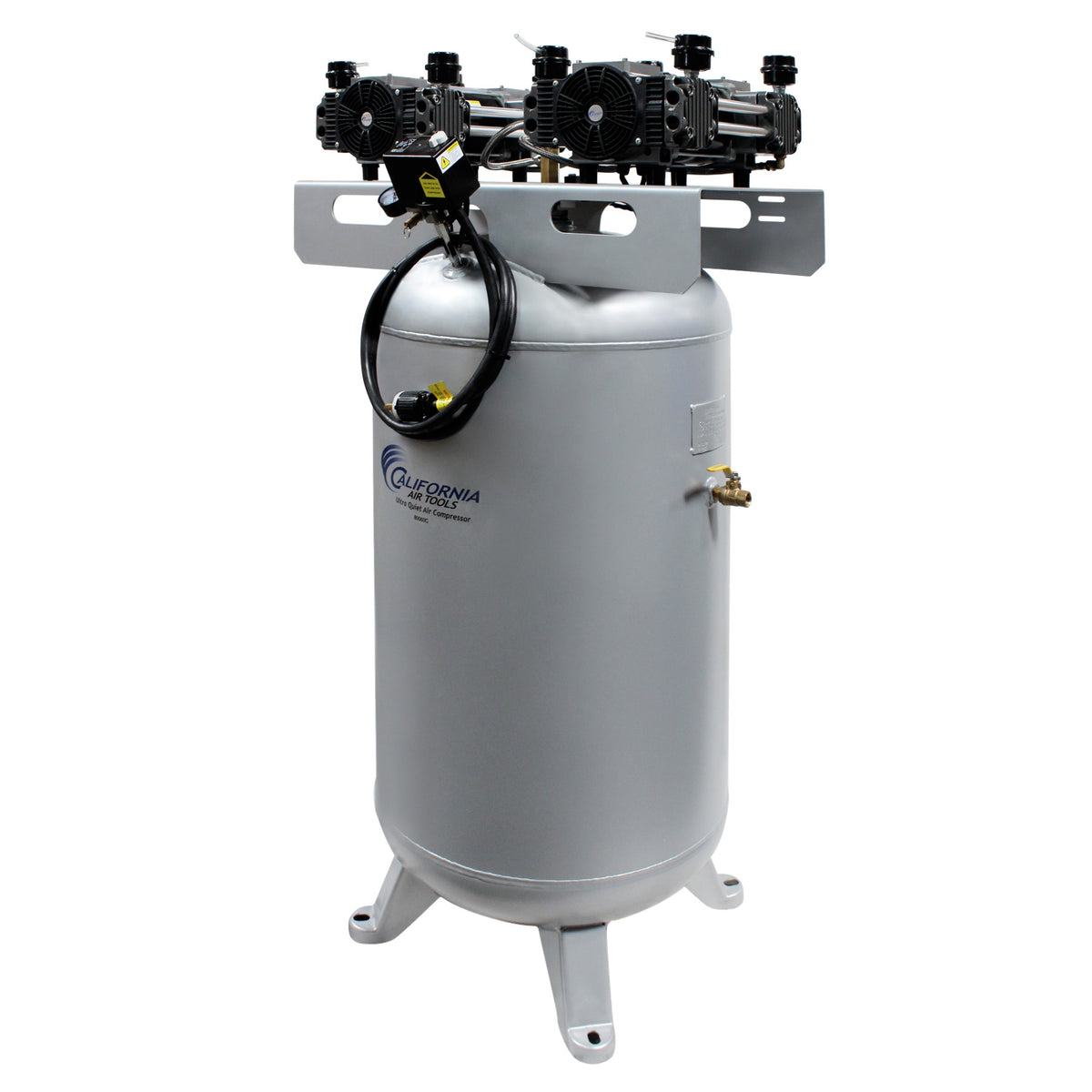

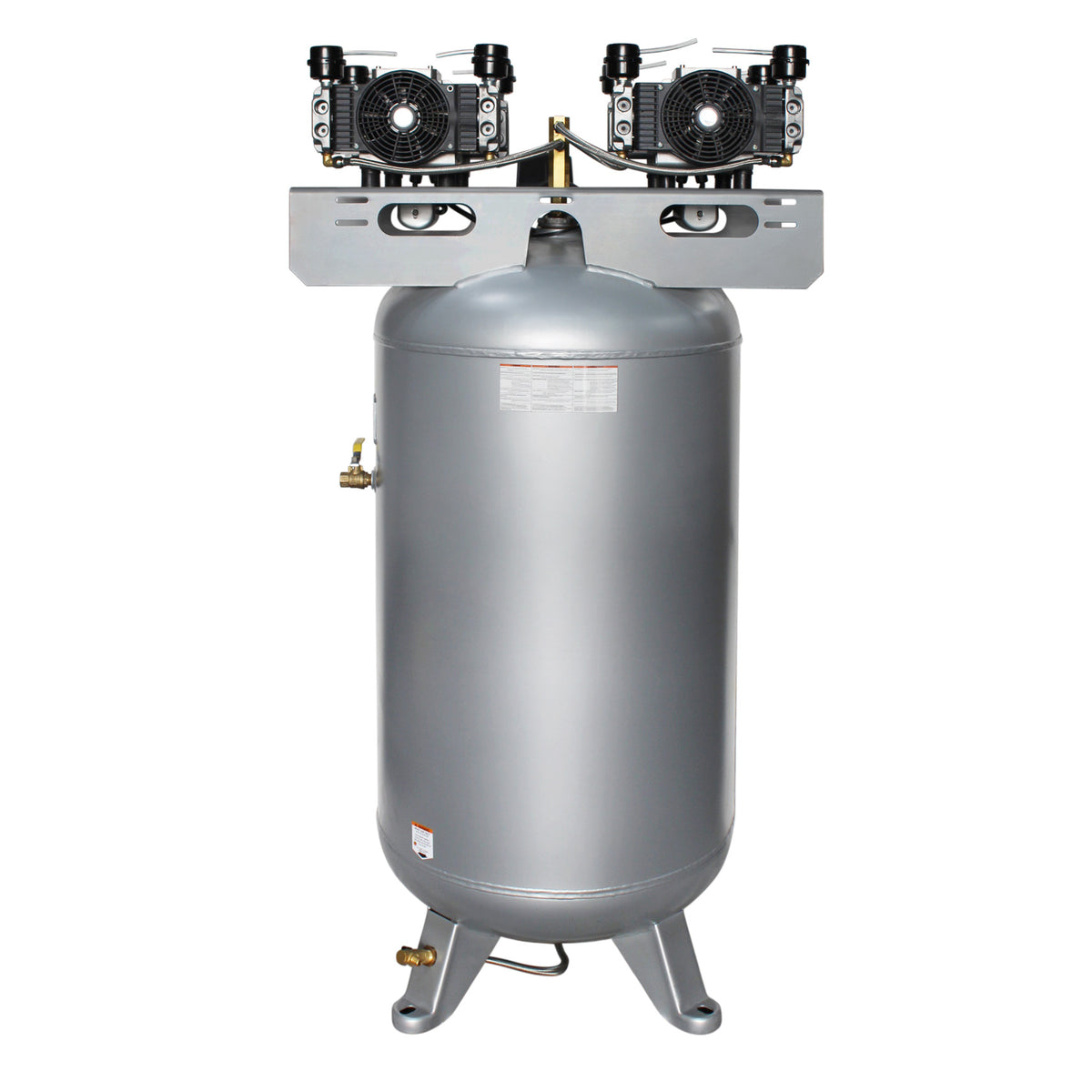

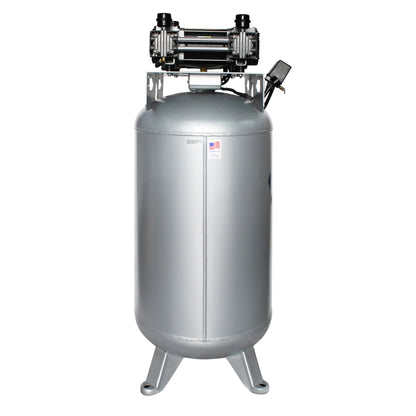

California Air Tools 80060C 6.0 HP Ultra Quiet Oil-Free 80 Gallon Stationary Air Compressor

Product Description

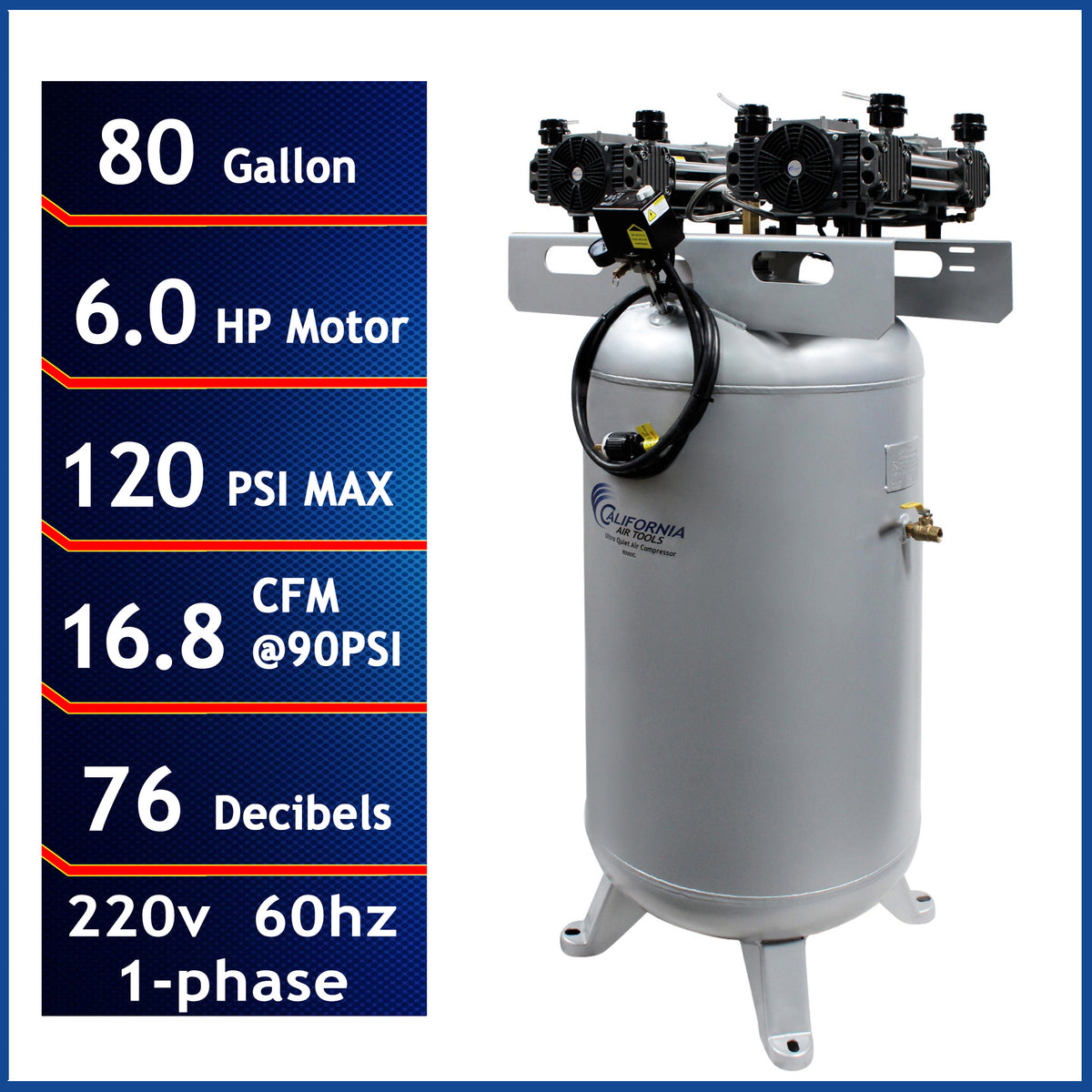

The California Air Tools 80060C is a powerful 6.0 HP ultra-quiet, oil-free stationary air compressor designed for large shops, garages, and demanding professional applications. It features an 80-gallon ASME-certified steel air tank and produces 16.80 CFM at 90 PSI while operating at only 76 dB.

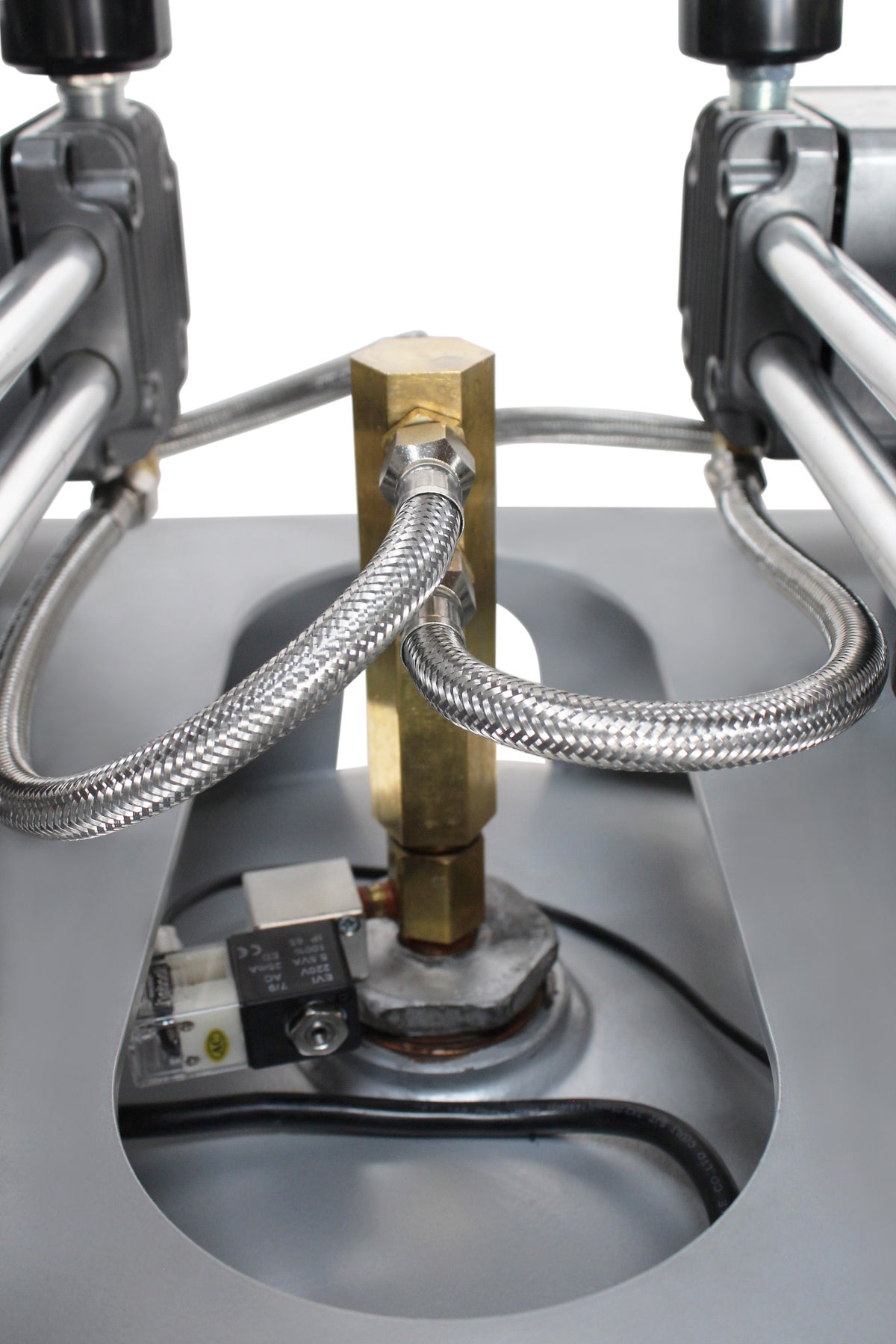

The compressor uses two OLF2800 3.0 HP oil-free motor/pumps operating at 1,680 RPM. The oil-free design provides cleaner compressed air, reduced maintenance requirements, and reliable performance across a range of operating temperatures. The 80060C is also designed for continuous-run applications, with California Air Tools identifying it for operation at approximately 16 CFM for up to 2 hours at a time.

With a maximum pressure of 120 PSI, 208/220V single-phase power, a 24-amp draw, and an ASME-certified 80-gallon tank, the 80060C is built for high-volume compressed-air requirements in professional shop and industrial environments.

Key Features

• 6.0 HP rated/running motor
• Two OLF2800 3.0 HP oil-free motor/pumps
• Ultra-quiet operation at only 76 dB
• 80-gallon ASME-certified steel air tank
• 20.0 CFM at 40 PSI
• 16.80 CFM at 90 PSI
• 120 PSI maximum pressure
• 208/220V / 60 Hz / single phase
• 24 amp current draw
• 1,680 RPM motor speed
• 70/30 duty cycle
• Designed for continuous-run applications
• Approximately 16 CFM continuous operation for up to 2 hours at a time
• Oil-free pump system for cleaner compressed air
• Thermal overload protection

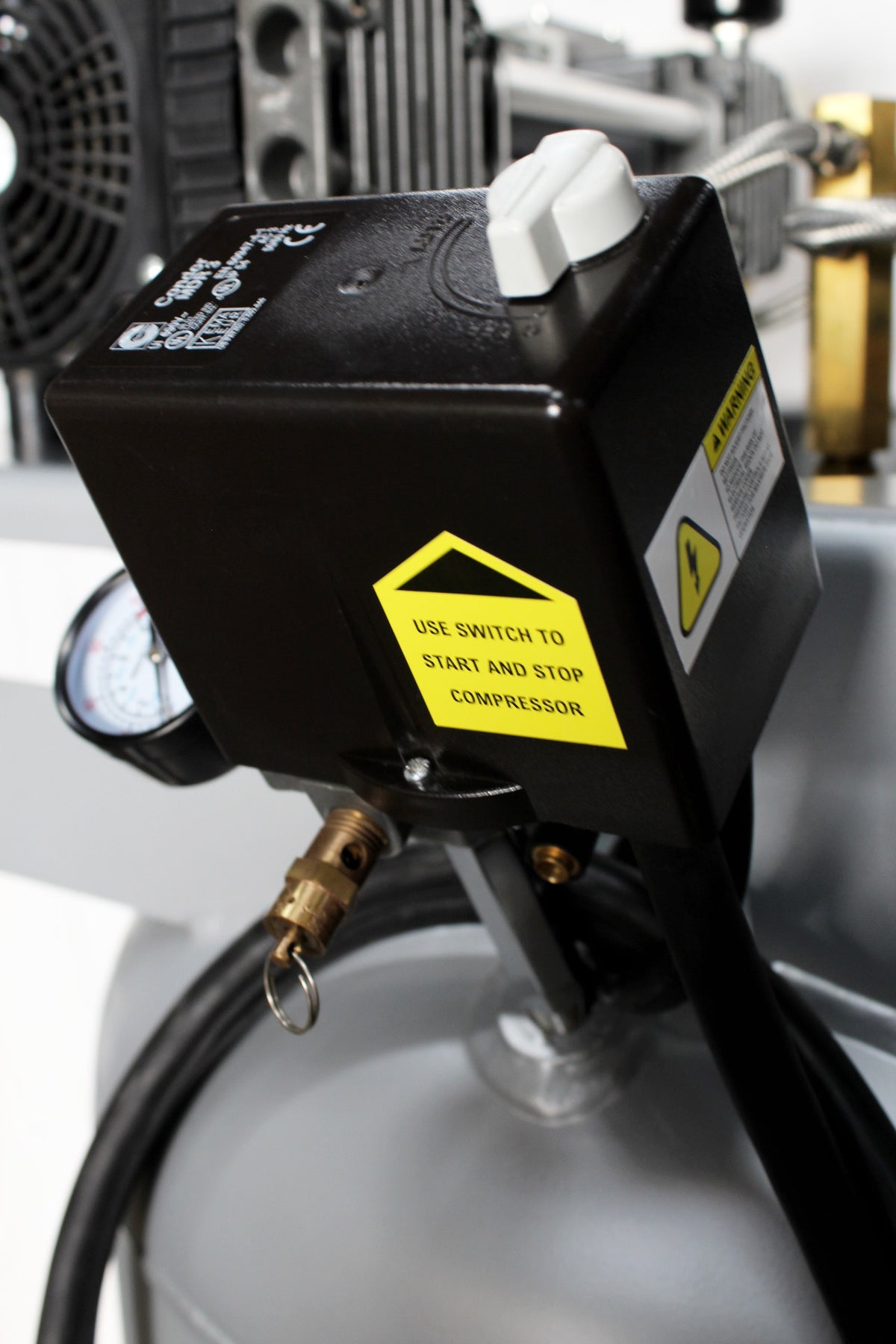

• Condor pressure switch
• 80-gallon ASME-certified steel tank

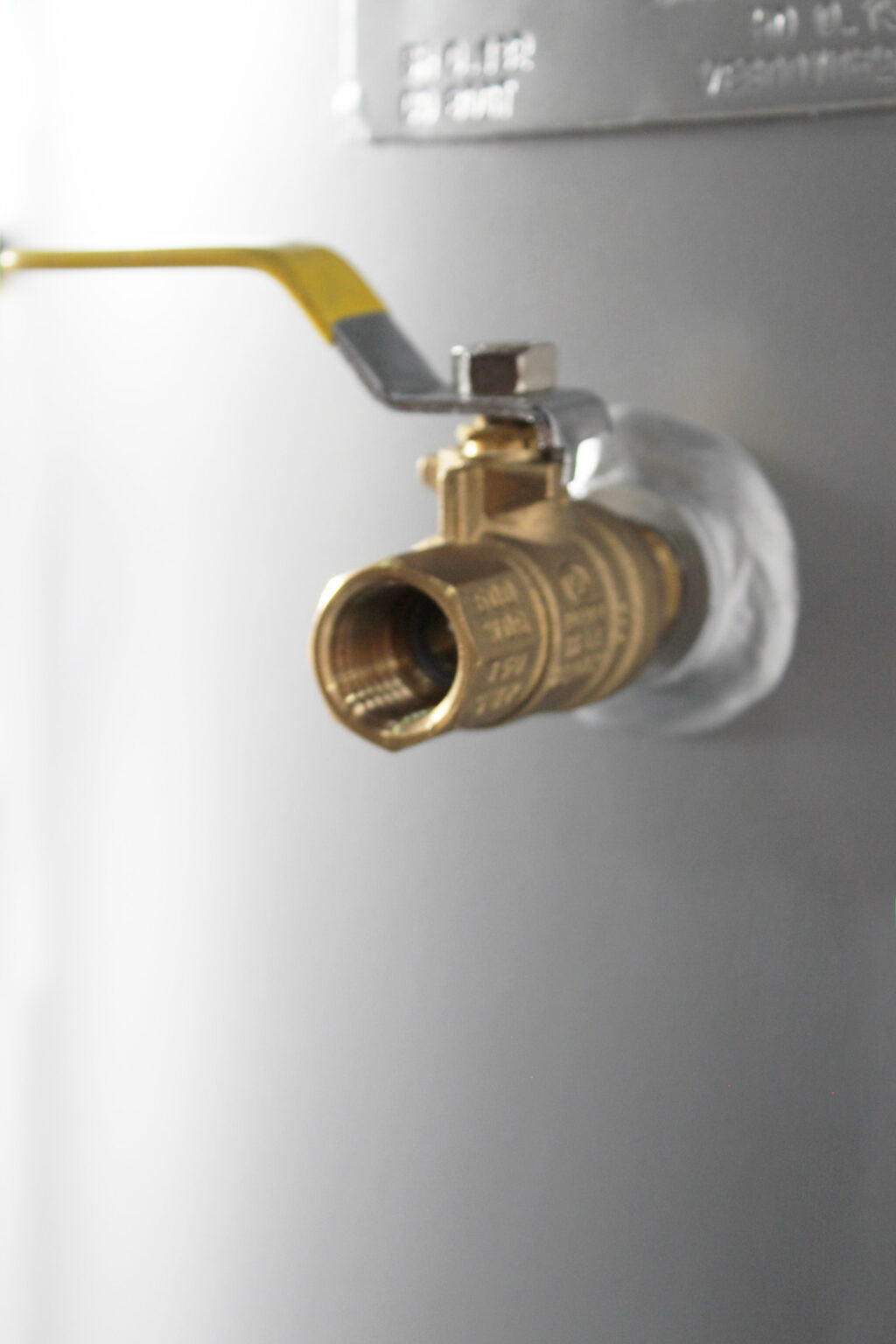

• 1/2-inch NPT female air output port with ball valve
• Manual ball drain valve

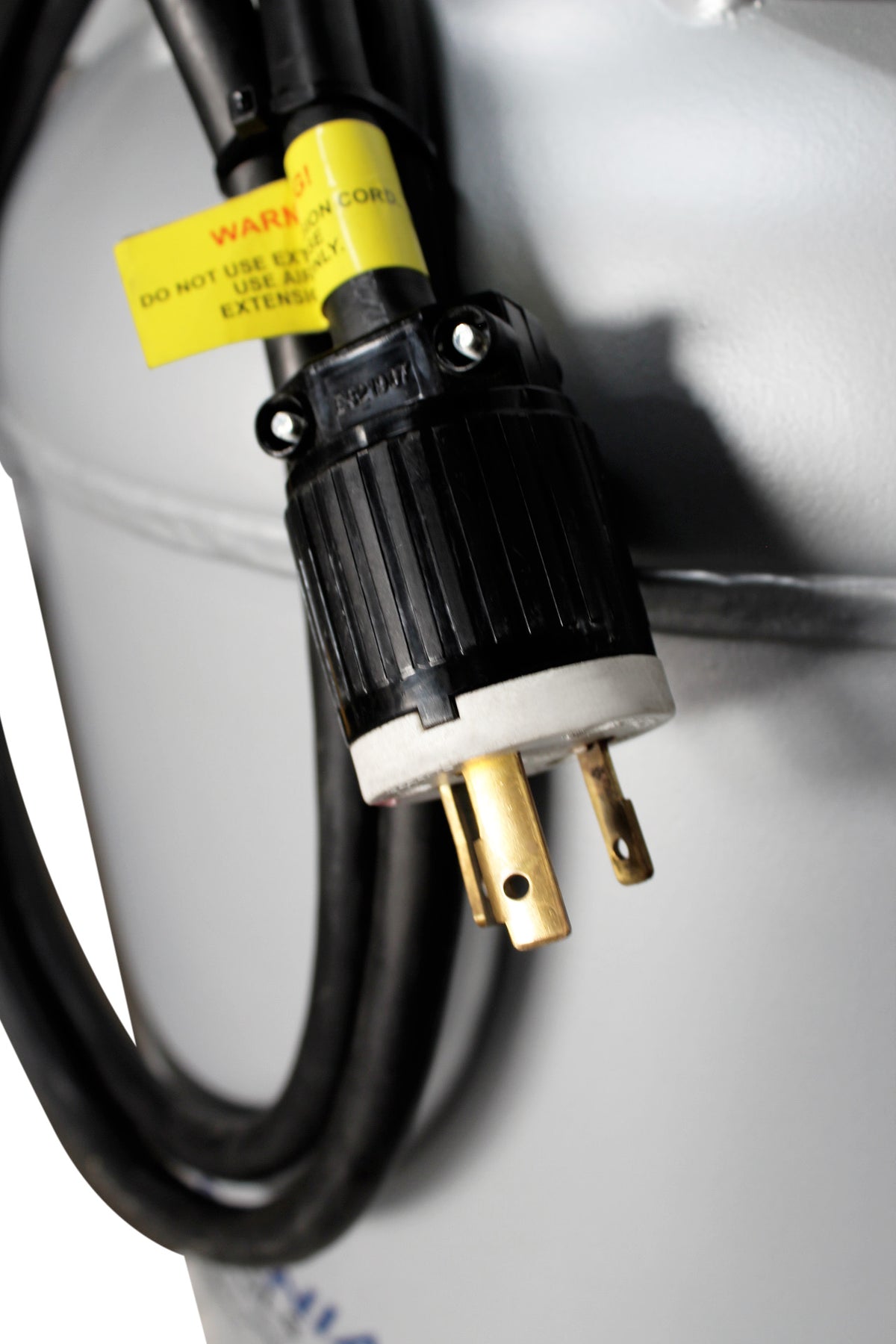

• NEMA L6-30P plug
• 7-foot power cord

Specifications

What's Included

• California Air Tools 80060C 80-Gallon Air Compressor
• Two OLF2800 3.0 HP Oil-Free Motor/Pumps
• Eight Air Filters
• Eight Air Intake Tubes
• 7-Foot Power Cord
• Manual Ball Drain Valve

Applications

The 80060C is designed for large shops, garages, professional workshops, manufacturing environments, automotive applications, pneumatic tools, and other high-volume compressed-air applications. California Air Tools also identifies the model for continuous-run pneumatics requiring approximately 16 CFM for up to 2 hours at a time.

Maintenance

Replace the two air filters attached to the motor-pumps every 2 years, or annually when the compressor is exposed to dirty or dusty environments. Inspect and maintain the air filters, drain system, check valve, electrical connections, and other compressor components according to the manufacturer's maintenance recommendations.
