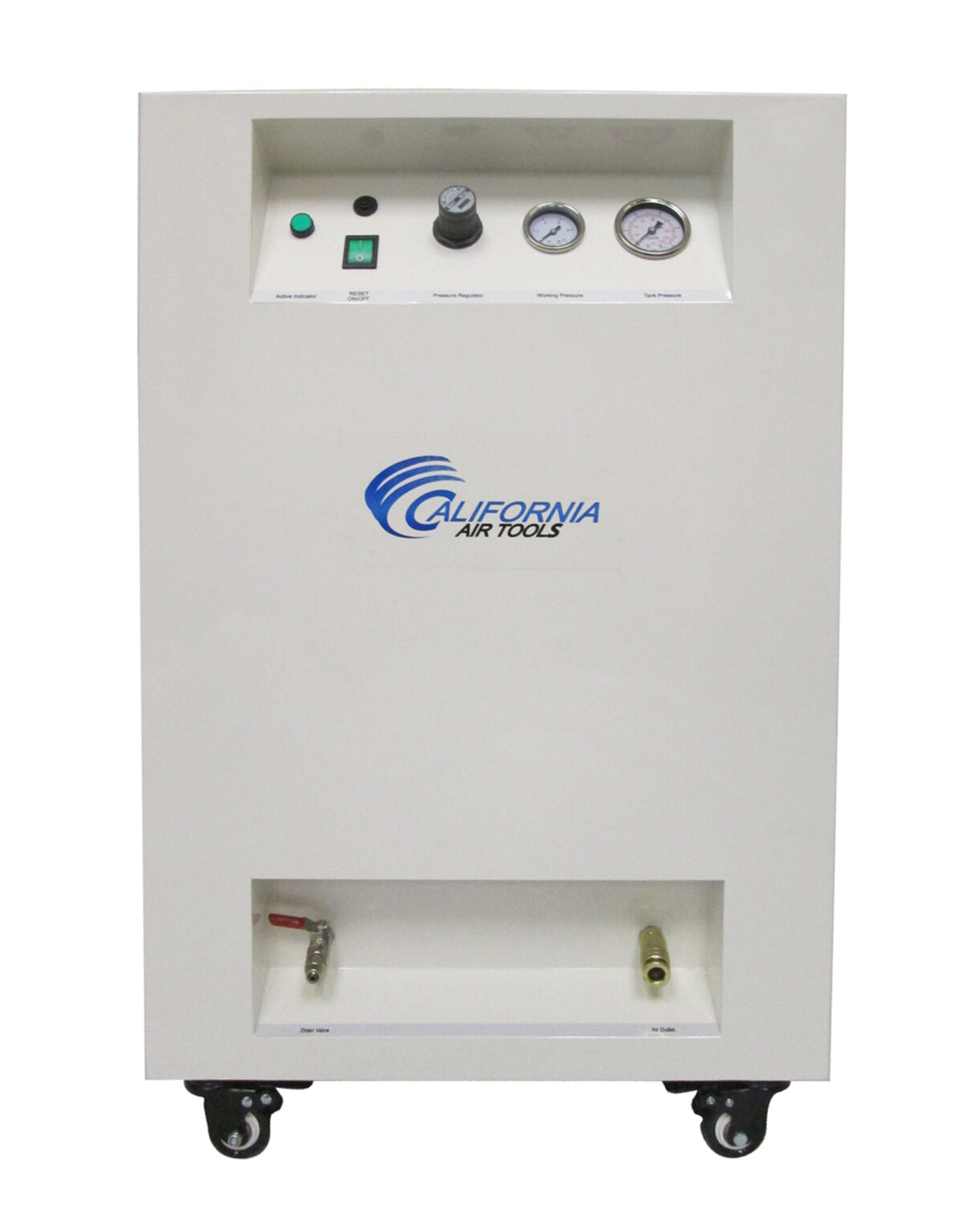

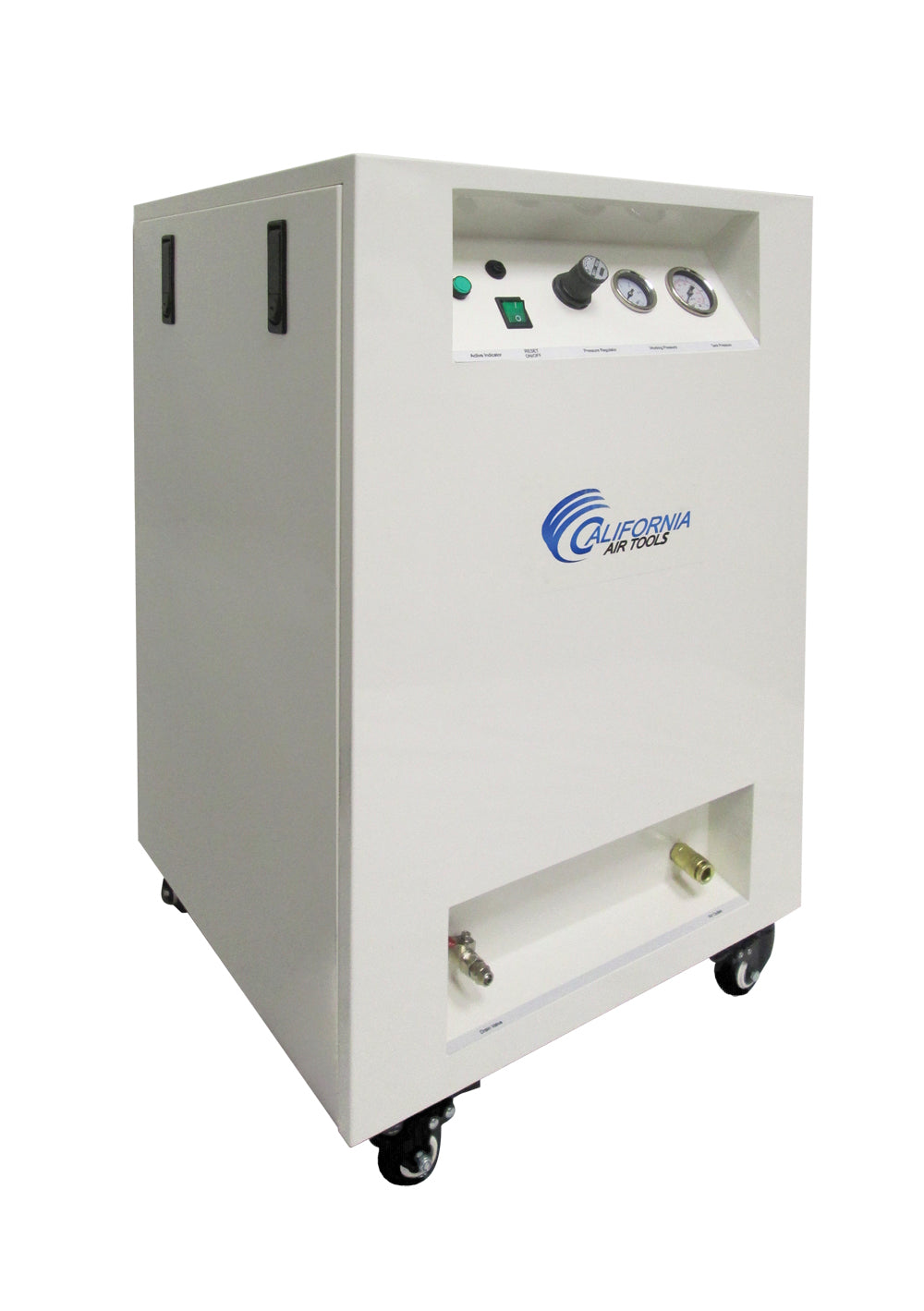

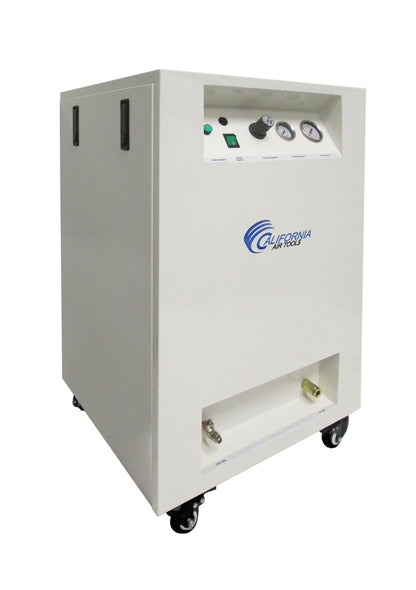

California Air Tools 8010SPC 1.0 HP Ultra Quiet Oil-Free 8 Gallon Air Compressor with Soundproof Cabinet, 110V

Product Description

The California Air Tools 8010SPC is a 1.0 HP ultra-quiet, oil-free air compressor designed for indoor applications where low operating noise and reliable compressed air are important. Operating at only 40 dB, this compressor is well suited for offices, shops, stores, warehouses, homes, and other work environments where compressor noise is a concern.

The compressor features an 8-gallon coated steel air tank with an internal epoxy coating designed to help prevent corrosion. Its oil-free CAT-MP100LF motor and pump operate at 1400 RPM and are designed to provide reduced noise, vibration, and wear. The compressor delivers 4.00 CFM at 40 PSI and 3.00 CFM at 90 PSI.

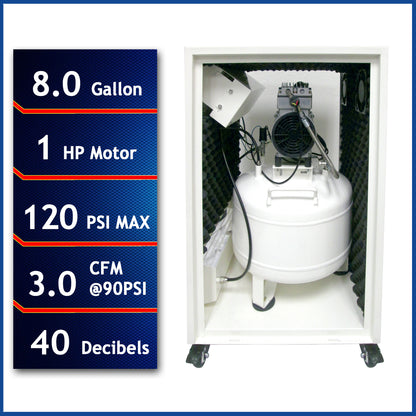

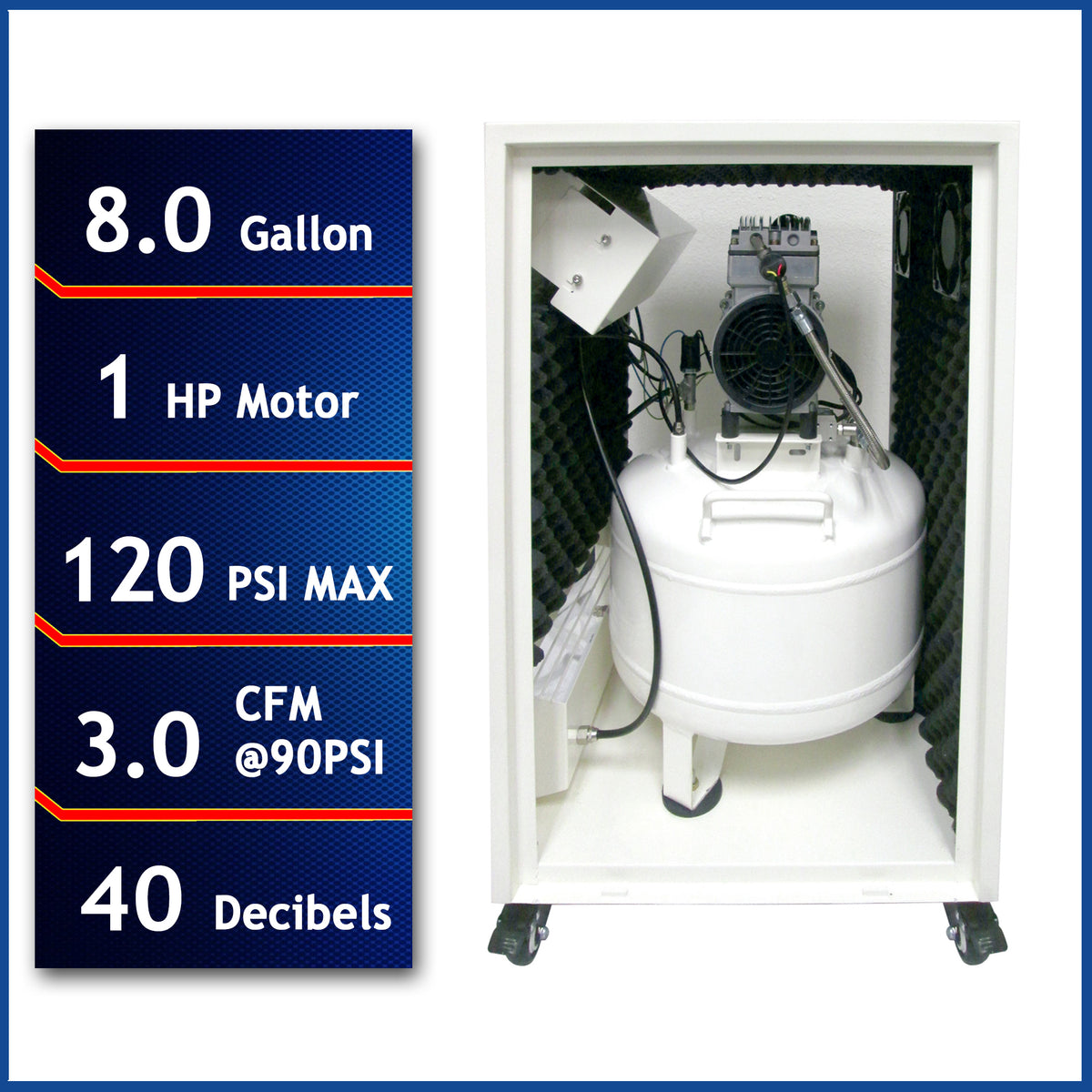

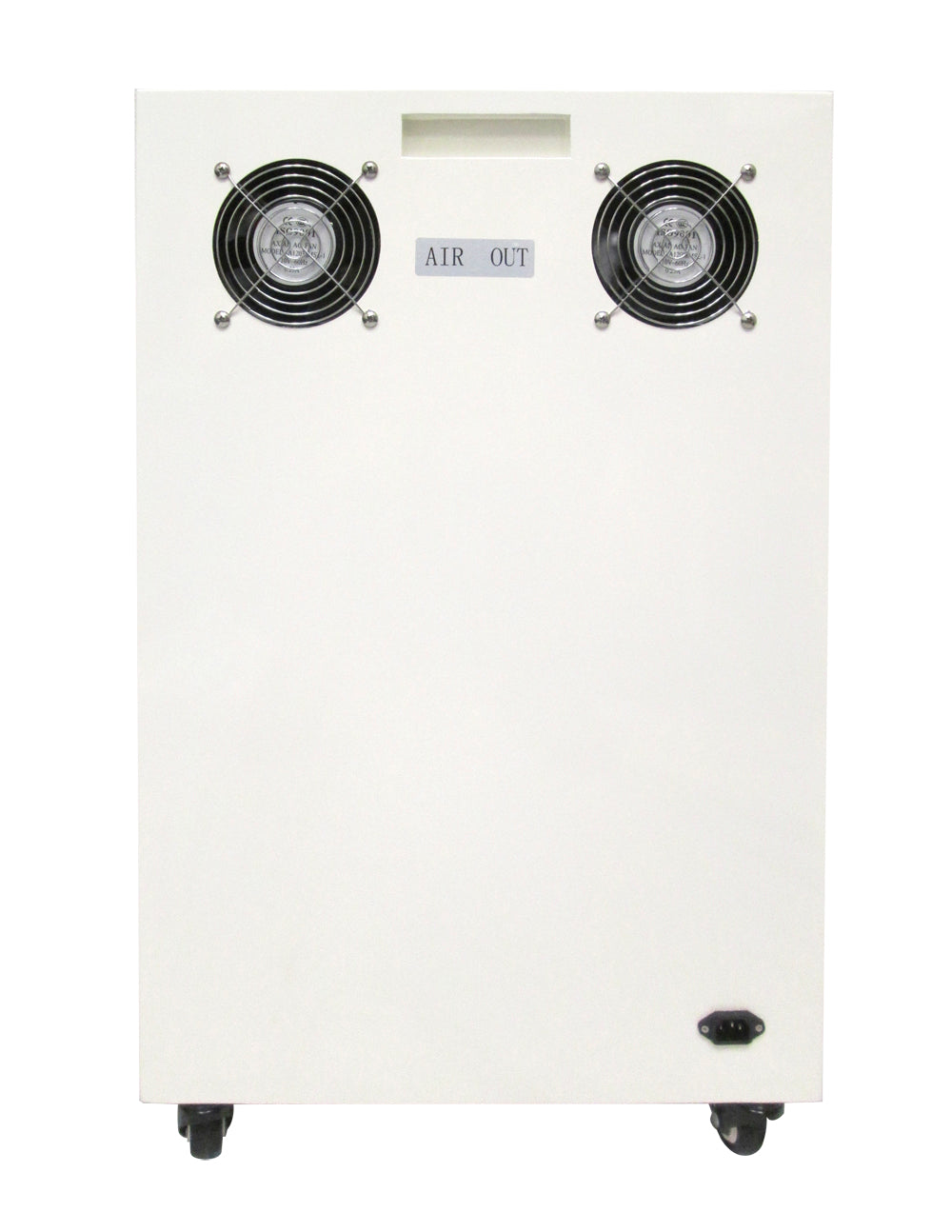

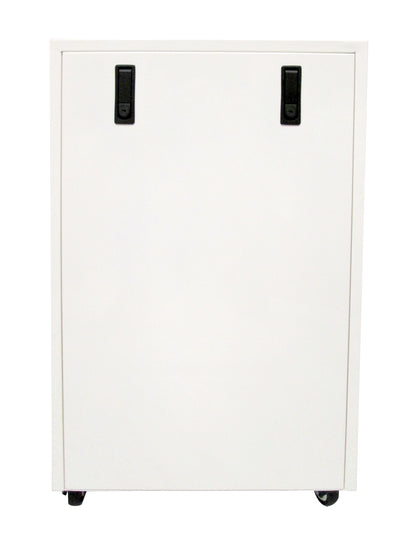

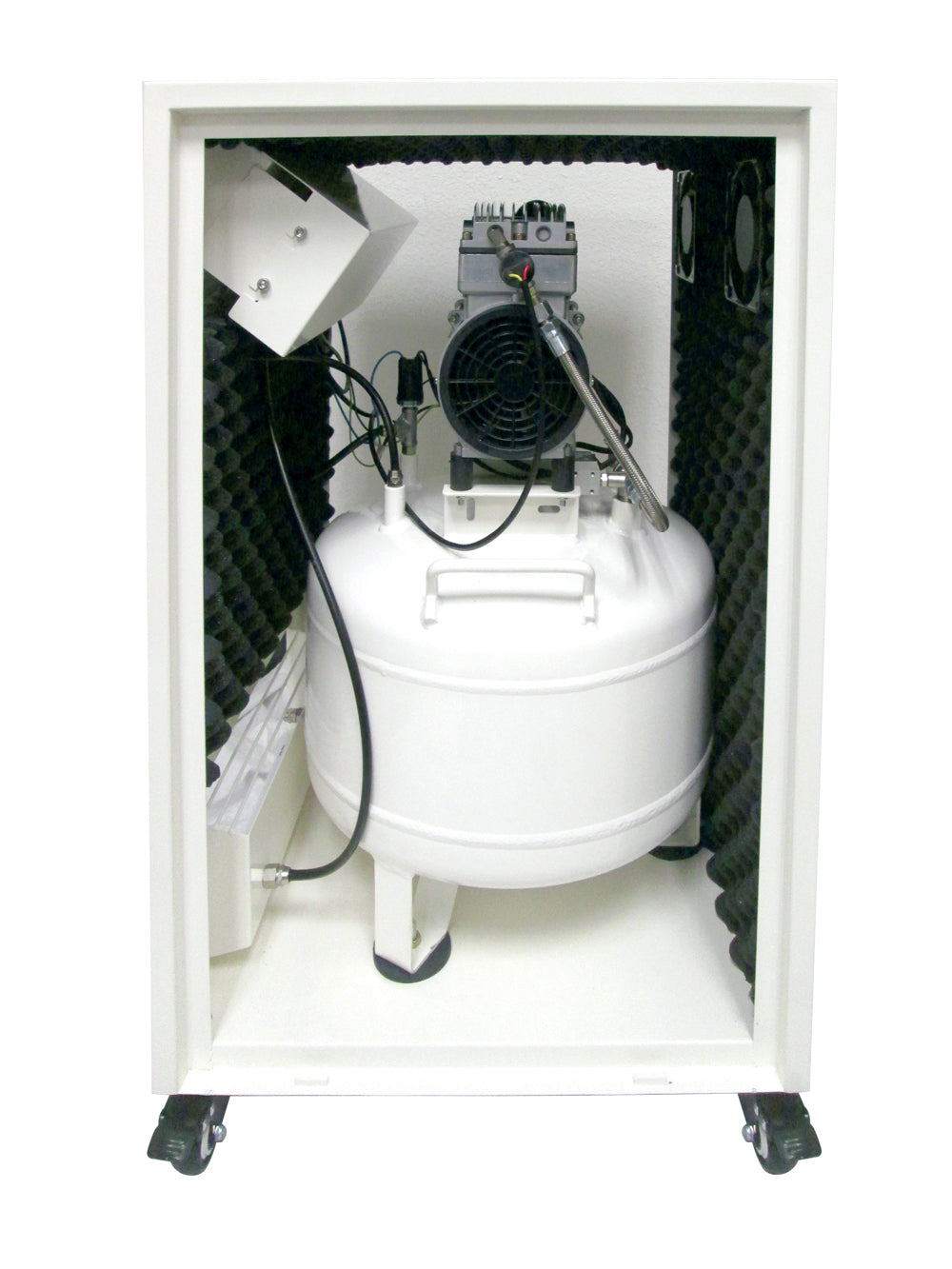

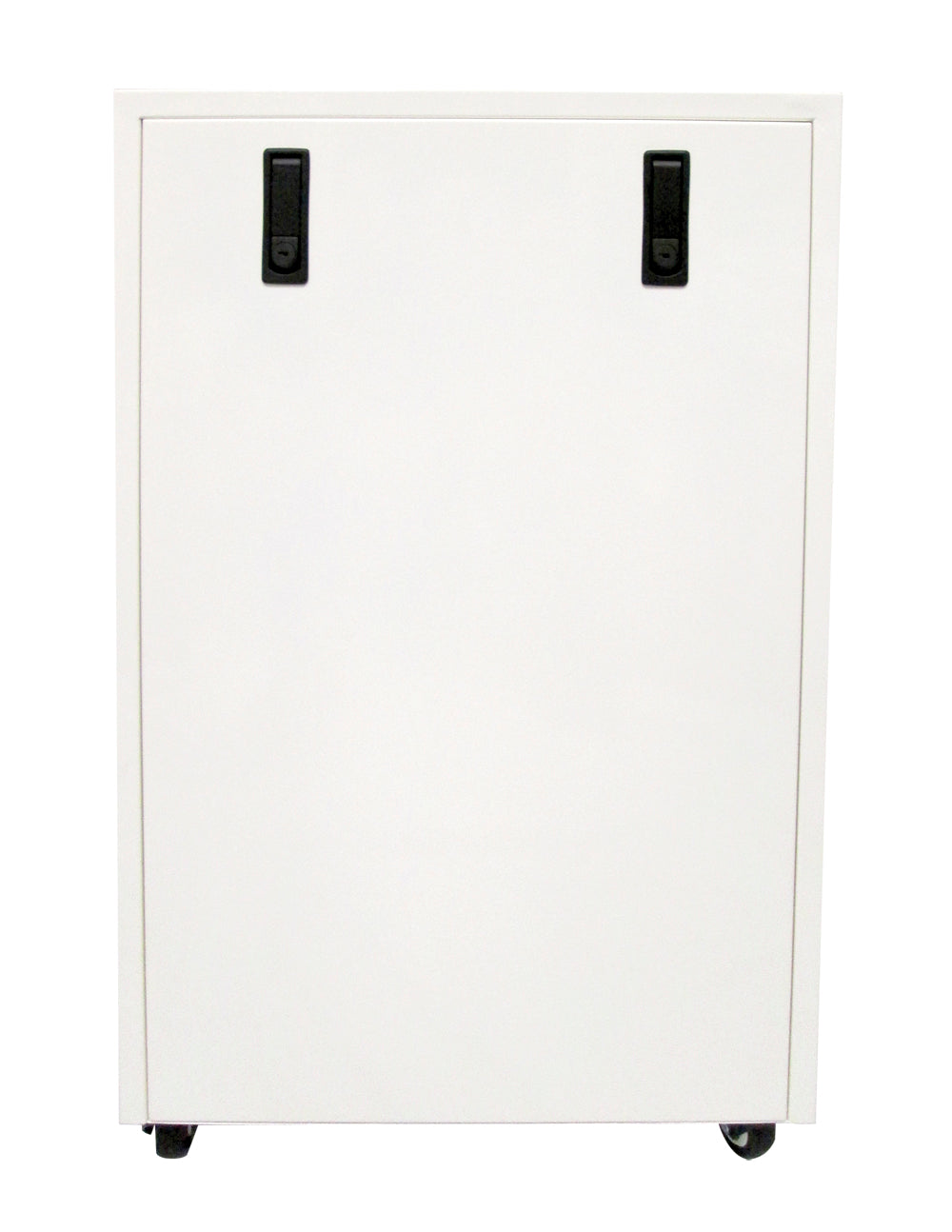

The complete soundproof cabinet uses acoustic soundproofing foam to reduce operating noise and includes two latching doors for access to the compressor components. Two cabinet exhaust fans help maintain a cool operating environment, while four swivel caster wheels make it easier to move the compressor between locations.

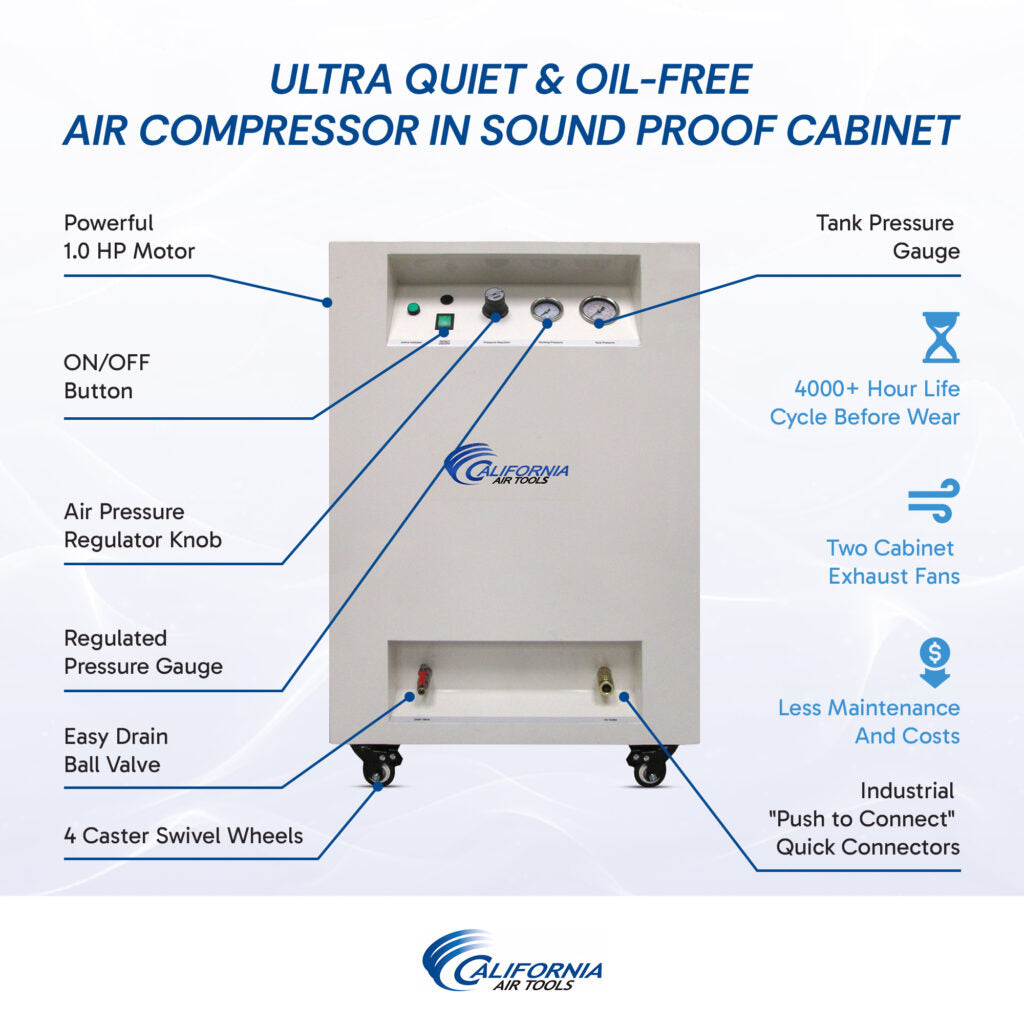

Key Features

• 1.0 HP rated/running motor
• Ultra-quiet 40 dB operation
• Oil-free dual piston pump
• 8-gallon coated steel air tank
• Internally epoxy-coated tank to help prevent corrosion
• Soundproof cabinet with acoustic insulation
• CAT-MP100LF motor/pump
• 1400 RPM motor speed
• 4.00 CFM at 40 PSI
• 3.00 CFM at 90 PSI
• 115 PSI maximum pressure
• 85 PSI kick-on pressure
• 115 PSI kick-off pressure
• 110V / 60 Hz operation
• Low 7.6A amp draw

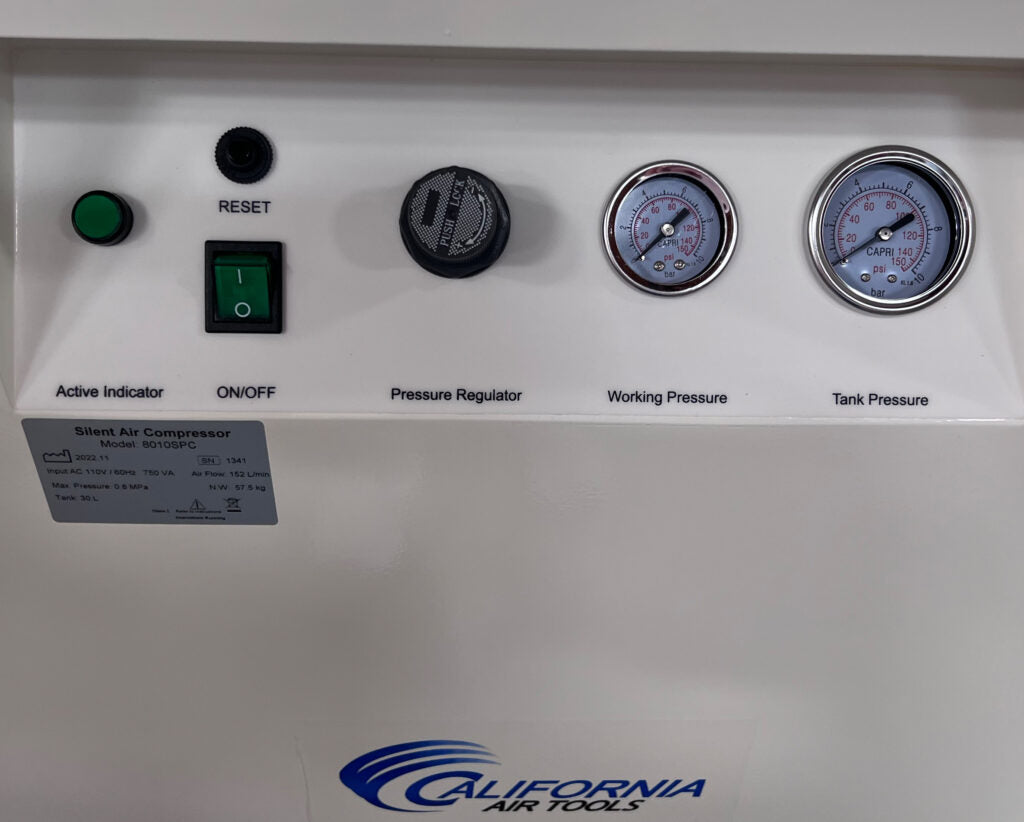

• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Thermal overload protector
• Two cabinet exhaust fans
• Two latching cabinet doors
• Four swivel caster wheels
• 70/30 duty cycle

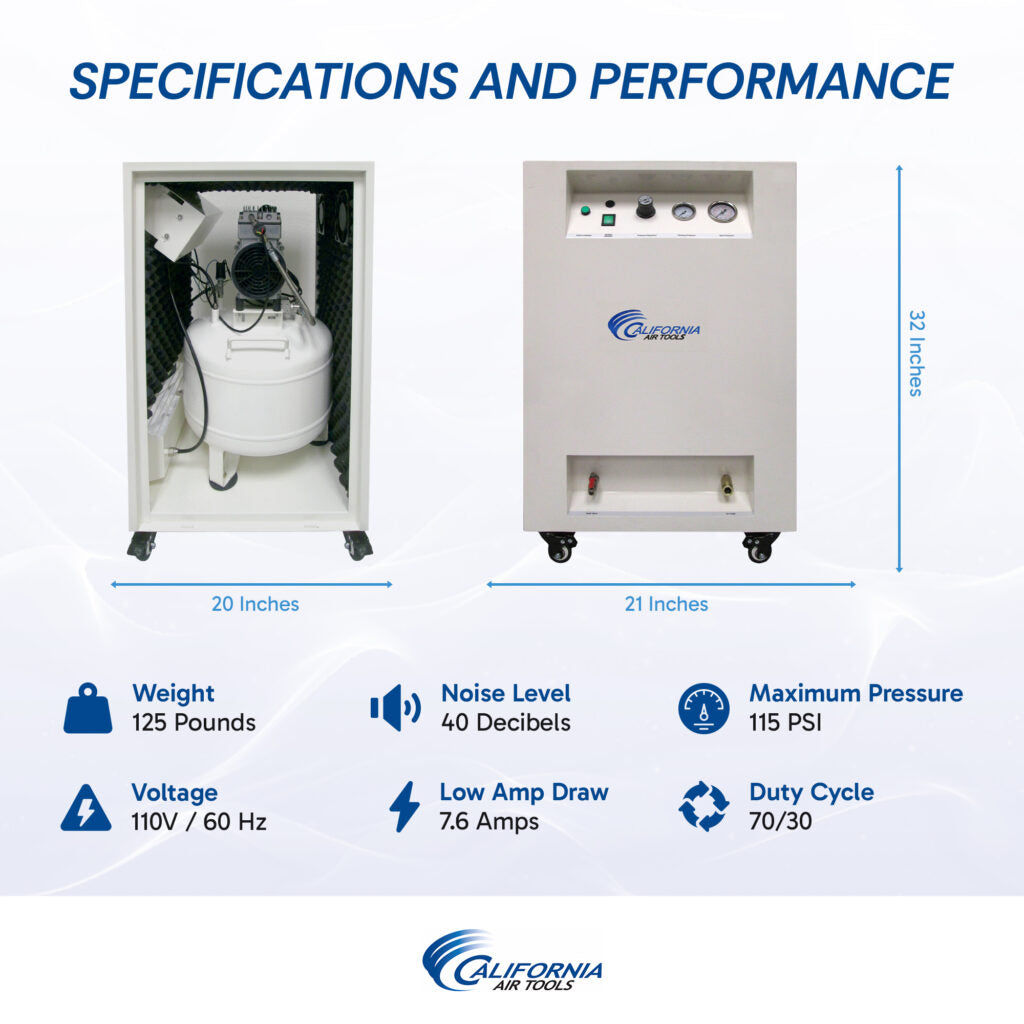

Specifications

• Model: 8010SPC
• Motor Power: 1.0 HP
• Pump Type: Oil-Free Dual Piston
• Motor/Pump: CAT-MP100LF
• Tank Capacity: 8 Gallons
• Tank Material: Coated Steel
• Tank Coating: Internal Epoxy Coating
• Cabinet: Soundproof
• Noise Level: 40 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Amperage: 7.6A
• Airflow: 4.00 CFM @ 40 PSI
• Airflow: 3.00 CFM @ 90 PSI
• Maximum Pressure: 115 PSI
• Kick-On Pressure: 85 PSI
• Kick-Off Pressure: 115 PSI
• Motor Speed: 1400 RPM
• Duty Cycle: 70/30
• Maximum Continuous Running: 30–60 minutes depending on PSI and CFM
• Tank Fill Time: Approximately 3 minutes
• Tank Type: Non-ASME
• Dimensions: 19.75" L x 19.75" W x 31.5" H
• Weight: 131 lbs
• Pump Life Before Service: Minimum 4,000 hours
• Warranty: 18 Month Limited Warranty

What's Included

• California Air Tools 8010SPC Air Compressor
• 8-gallon coated steel air tank
• Soundproof cabinet
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Thermal overload protector
• Two cabinet exhaust fans
• Four swivel caster wheels

Applications

The California Air Tools 8010SPC is designed for indoor environments where quiet compressed-air operation is important. Suitable applications include offices, shops, stores, warehouses, homes, workshops, and other professional workspaces. The compressor can also support applications such as milling and general pneumatic tool use where its airflow and pressure specifications are appropriate.

Maintenance

The oil-free pump eliminates the need for routine pump oil changes. California Air Tools recommends replacing the 1 HP air filter attached to the motor-pump every 2 years, or annually when the compressor is exposed to dusty or dirty environments. The soundproof cabinet exhaust fans and ventilation areas should also be kept clear of dust and debris to maintain proper cooling.
