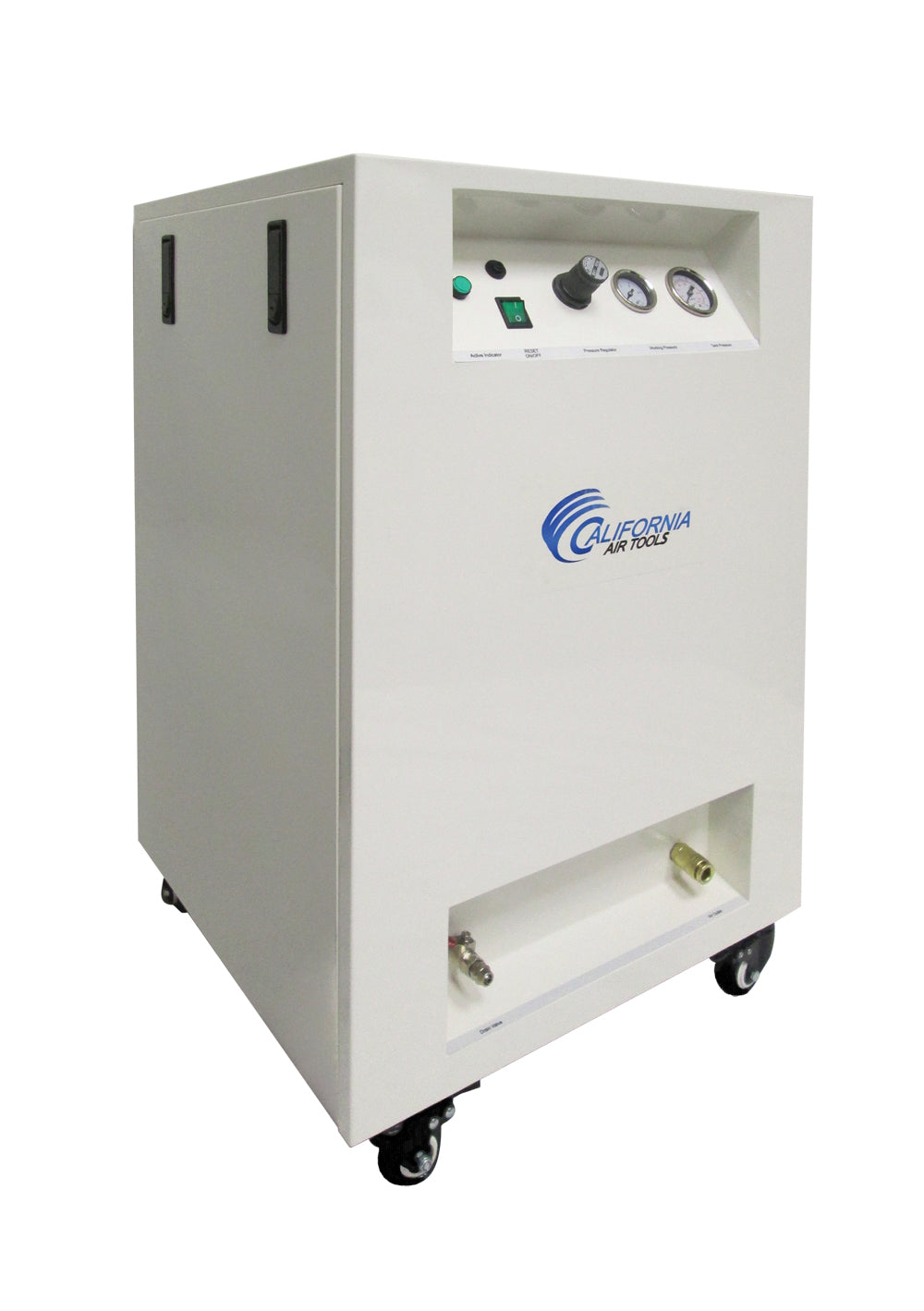

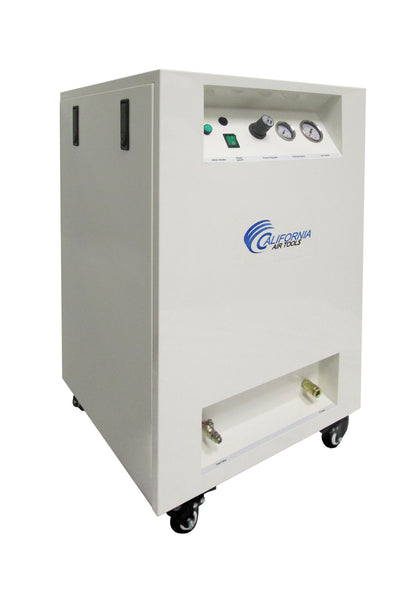

California Air Tools 8010SPCAD 1.0 HP Ultra Quiet Oil-Free 8 Gallon Air Compressor with Automatic Drain & Soundproof Cabinet, 110V

Product Description

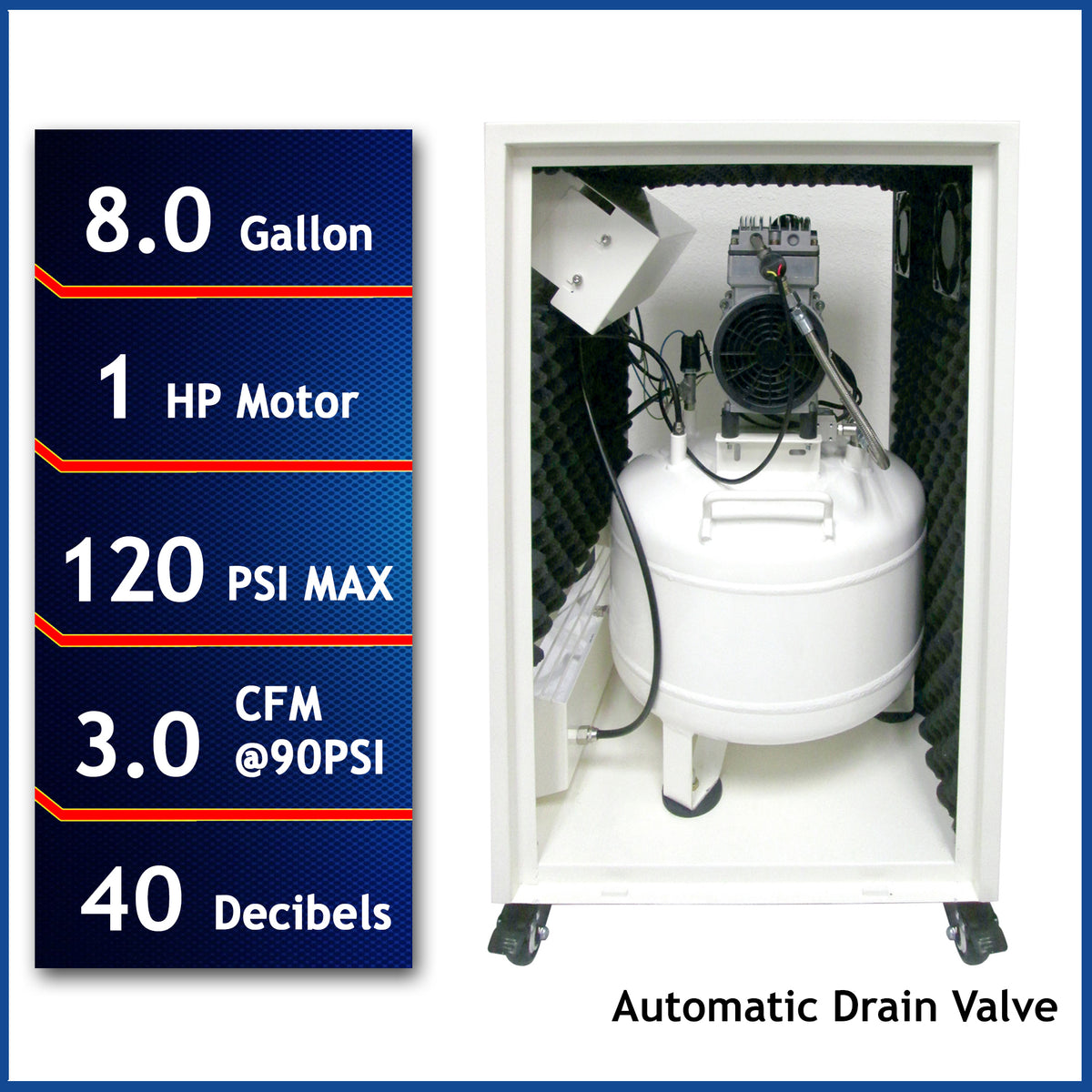

The California Air Tools 8010SPCAD is a 1.0 HP ultra-quiet, oil-free air compressor designed for indoor applications where low operating noise, reliable compressed air, and automatic tank drainage are important. It features an 8-gallon coated steel air tank enclosed in a soundproof cabinet and operates at only 40 dB.

The oil-free dual piston pump and CAT-MP100LF motor operate at 1400 RPM and are engineered for longevity, high performance, and durability. The compressor delivers 4.00 CFM at 40 PSI and 3.00 CFM at 90 PSI, with a maximum pressure of 115 PSI.

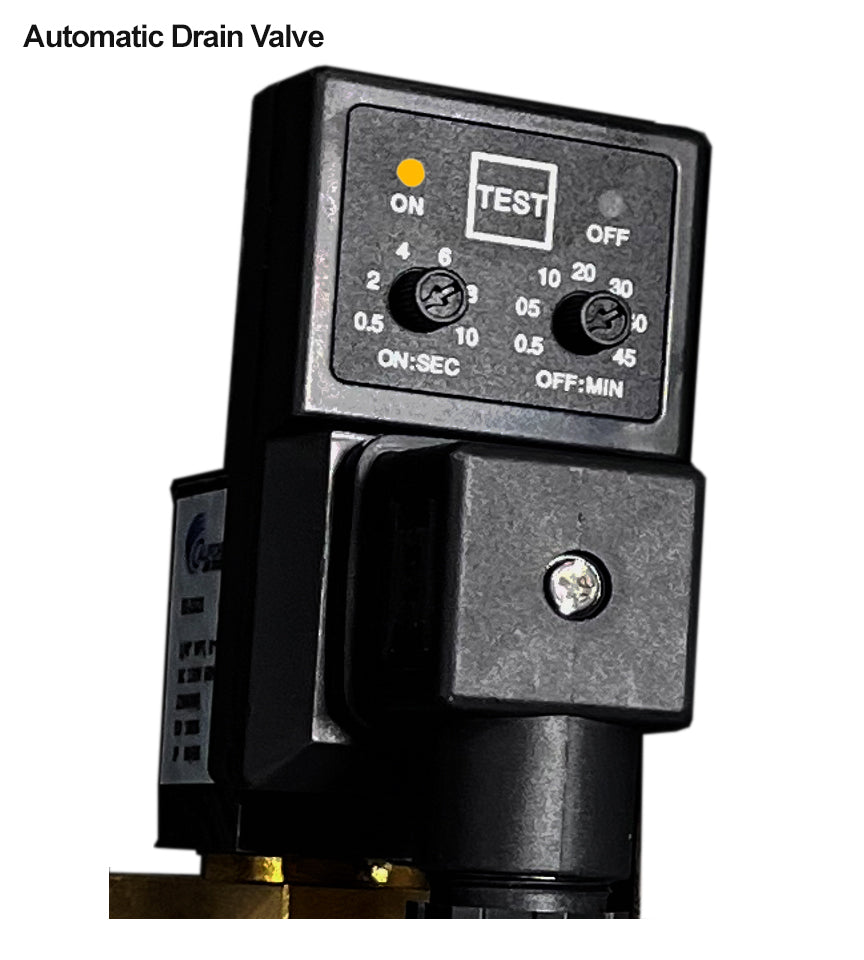

The 8010SPCAD includes the California Air Tools EZ-1 automatic drain valve, which eliminates the need to manually drain accumulated moisture from the air tank. The timer can be manually configured for both the frequency and duration of the draining process.

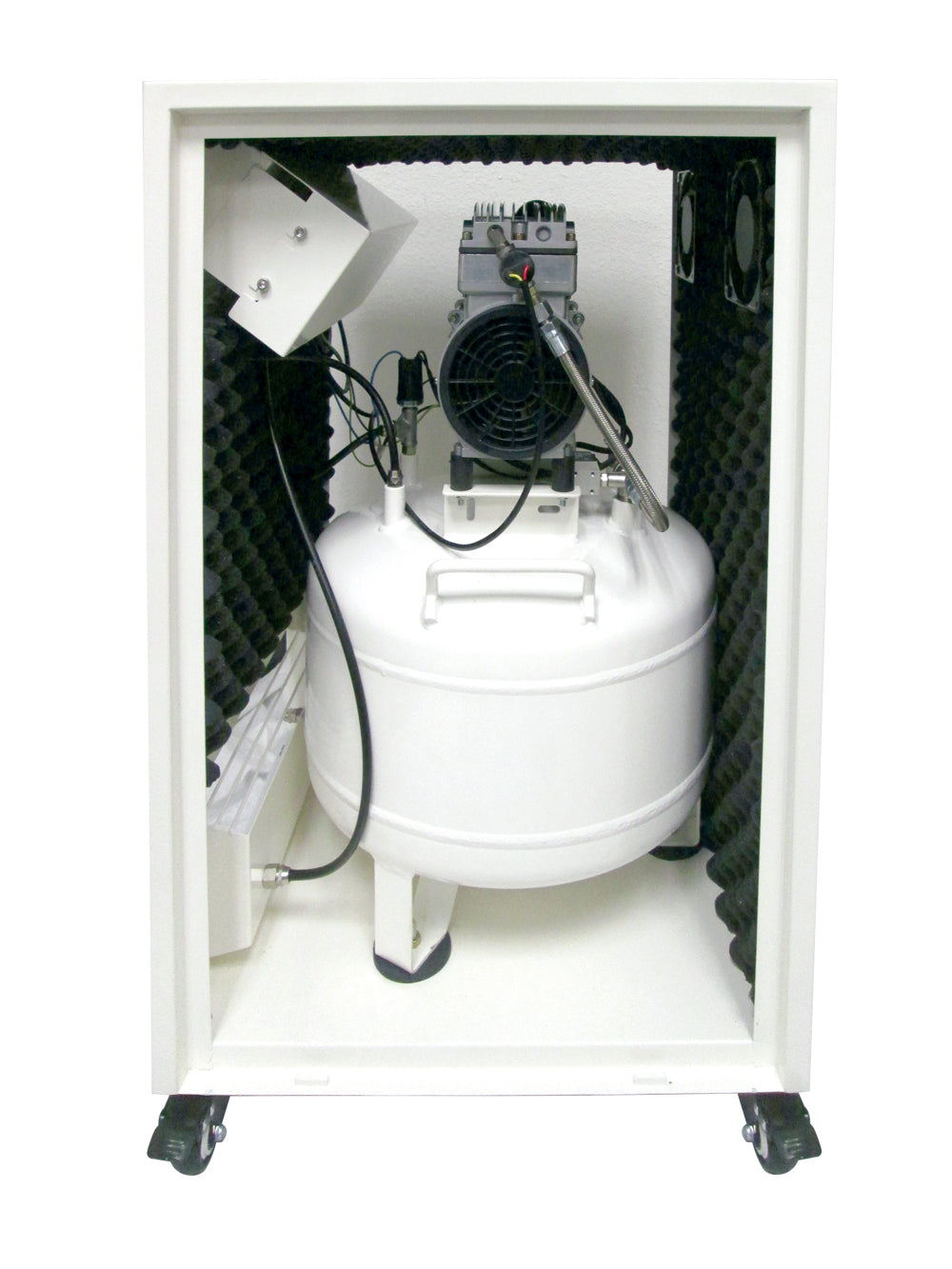

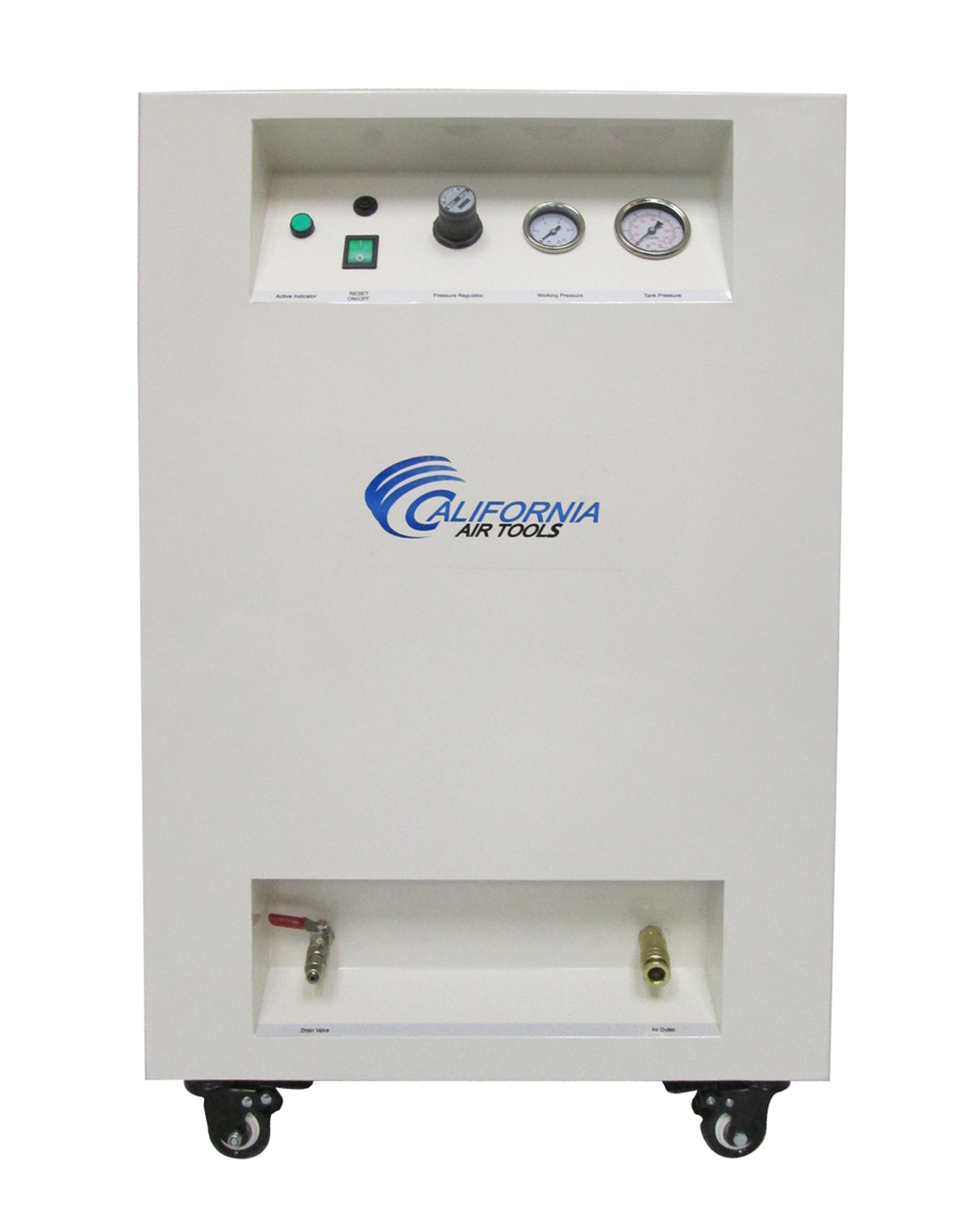

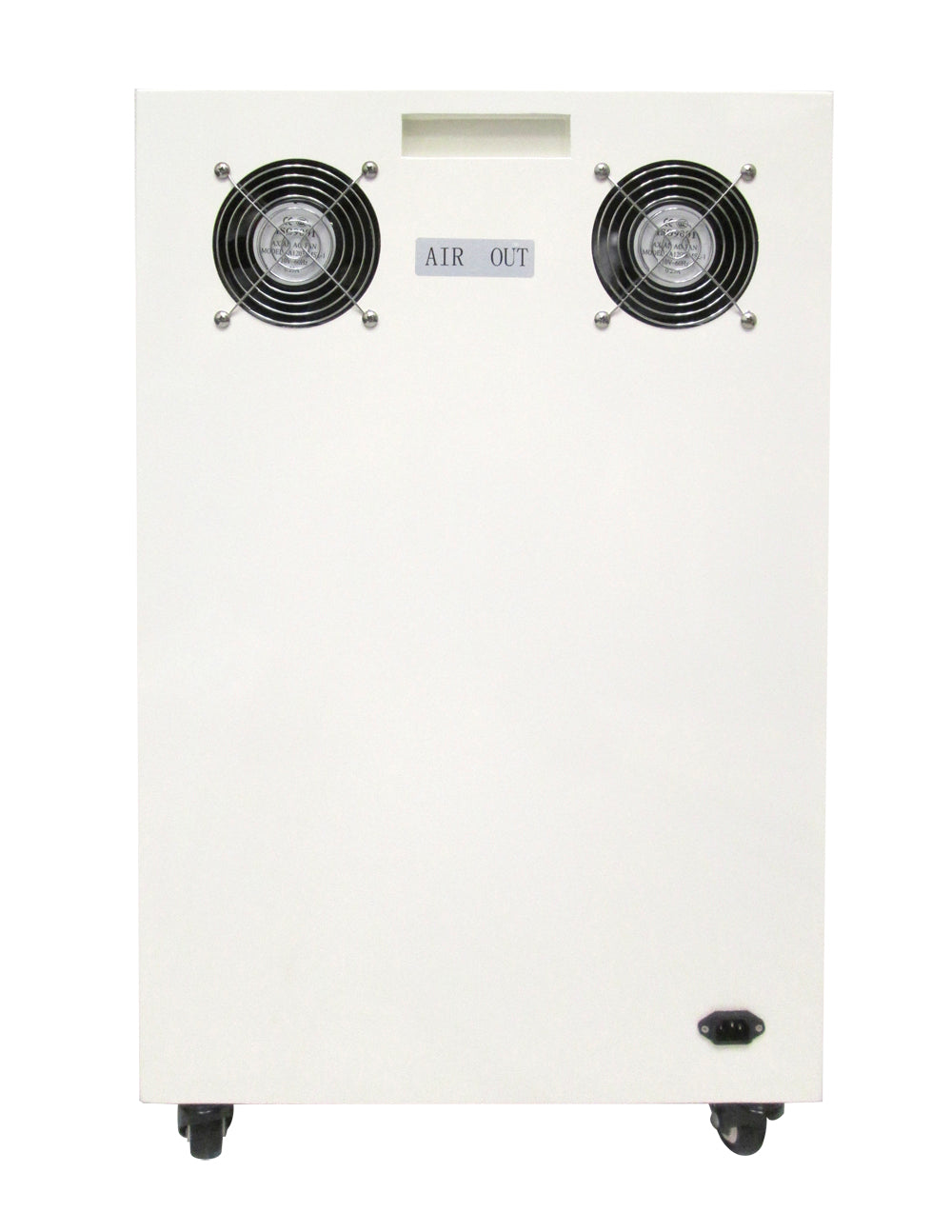

The soundproof cabinet is constructed with a sturdy metal frame and acoustic soundproofing foam designed to reduce operating noise. Two latching doors provide access to the compressor components, while two cabinet exhaust fans help maintain proper cooling. Four caster wheels make it easier to move the compressor when needed.

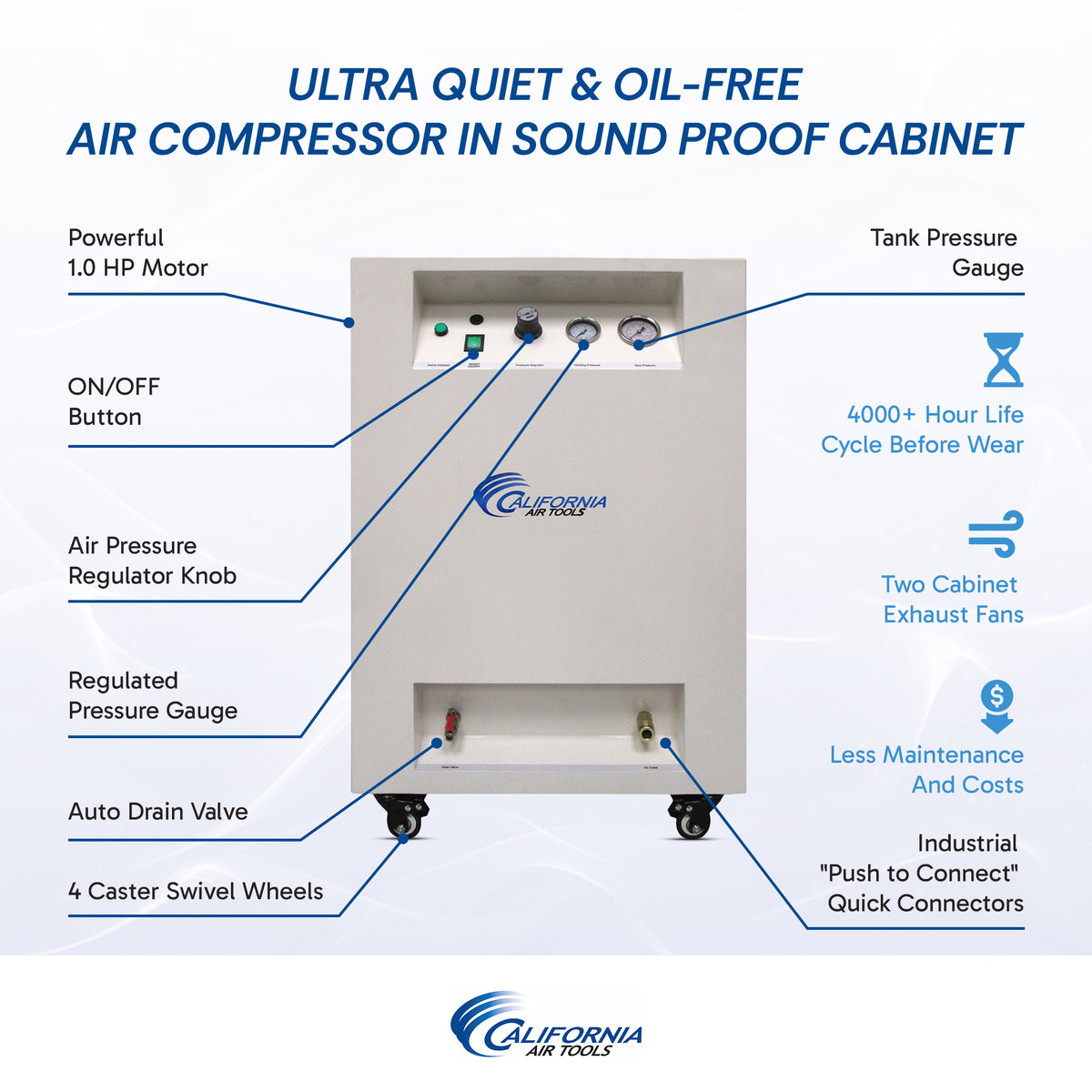

Key Features

• 1.0 HP rated/running motor
• Ultra-quiet 40 dB operation
• Oil-free dual piston pump
• CAT-MP100LF long-life motor/pump
• 8-gallon coated steel air tank
• Internally epoxy-coated tank to help prevent corrosion
• Soundproof cabinet with acoustic insulation
• Factory-installed EZ-1 automatic drain valve
• Automatic tank draining with manually adjustable timer
• 1400 RPM motor speed
• 4.00 CFM at 40 PSI
• 3.00 CFM at 90 PSI
• 115 PSI maximum pressure
• 85 PSI kick-on pressure
• 115 PSI kick-off pressure
• 110V / 60 Hz operation
• Low 7.6A amp draw

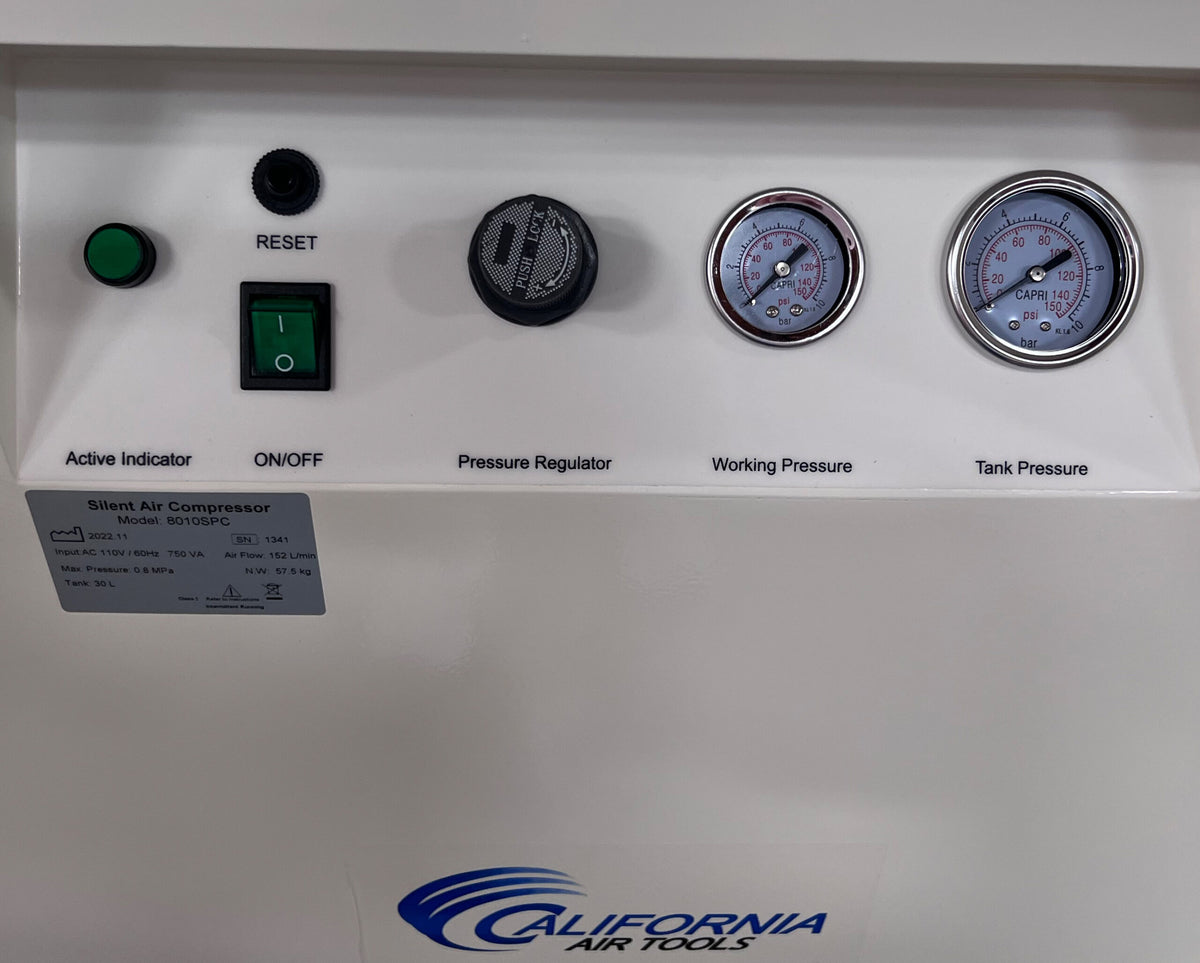

• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Thermal overload protector
• Two cabinet exhaust fans
• Two latching cabinet doors
• Four caster swivel wheels
• 70/30 duty cycle

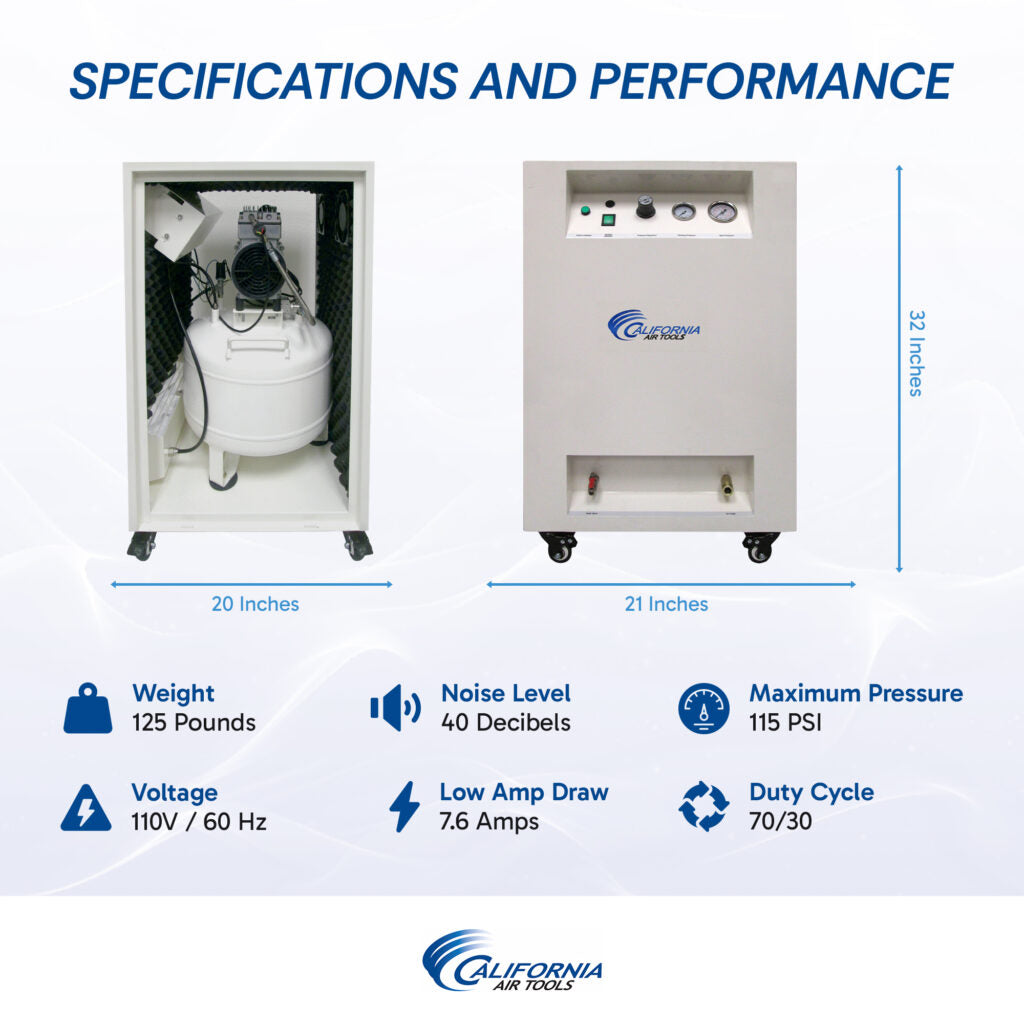

Specifications

• Model: 8010SPCAD
• Motor Power: 1.0 HP
• Pump Type: Oil-Free Dual Piston
• Motor/Pump: CAT-MP100LF
• Tank Capacity: 8 Gallons
• Tank Material: Coated Steel
• Tank Coating: Internal Epoxy Coating
• Cabinet: Soundproof
• Noise Level: 40 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Amperage: 7.6A
• Airflow: 4.00 CFM @ 40 PSI
• Airflow: 3.00 CFM @ 90 PSI
• Maximum Pressure: 115 PSI
• Kick-On Pressure: 85 PSI
• Kick-Off Pressure: 115 PSI
• Motor Speed: 1400 RPM
• Duty Cycle: 70/30
• Maximum Continuous Running: 30–60 minutes depending on PSI and CFM
• Tank Fill Time: Approximately 3 minutes
• Automatic Drain: EZ-1
• Tank Type: Non-ASME
• Dimensions: 19.75" L x 19.75" W x 31.5" H
• Product Weight: 132 lbs
• Pump Life Before Service: Minimum 4,000 hours
• Warranty: 18 Month Limited Warranty

What's Included

• California Air Tools 8010SPCAD Air Compressor
• 8-gallon coated steel air tank
• Soundproof cabinet
• EZ-1 automatic drain valve
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Thermal overload protector
• Two cabinet exhaust fans
• Four caster swivel wheels

Applications

The California Air Tools 8010SPCAD is designed for indoor environments where quiet compressed-air operation and automatic moisture drainage are important. Suitable applications include offices, shops, stores, warehouses, homes, workshops, milling applications, and other professional workspaces where compressor noise is a major concern.

Maintenance

The oil-free dual piston pump eliminates the need for routine pump oil changes. California Air Tools recommends replacing the 1 HP air filter attached to the motor-pump every 2 years, or annually when the compressor is exposed to a dirty or dusty environment. The EZ-1 automatic drain valve should be checked periodically to ensure proper operation, and the cabinet exhaust fans and ventilation areas should be kept clean for proper cooling.
