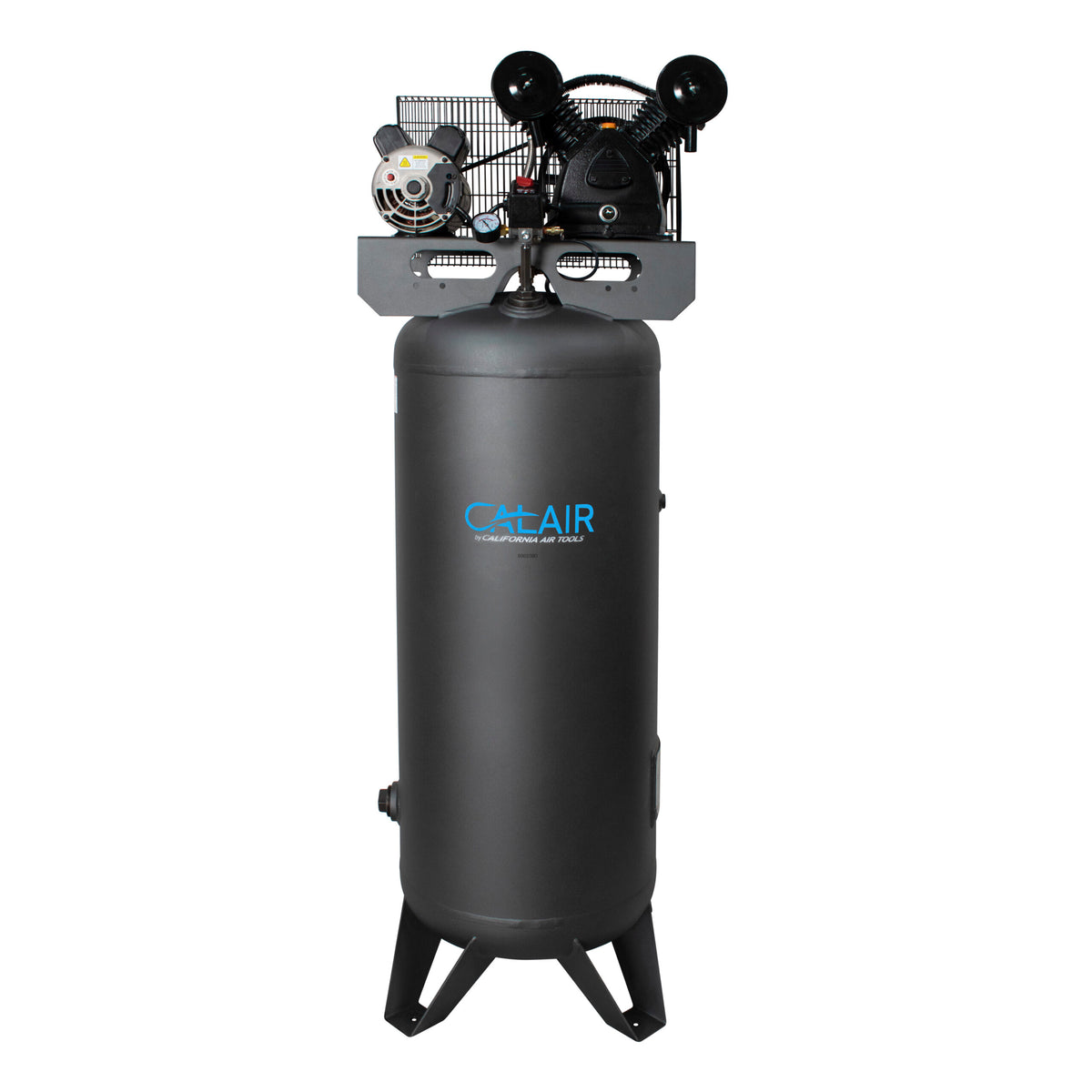

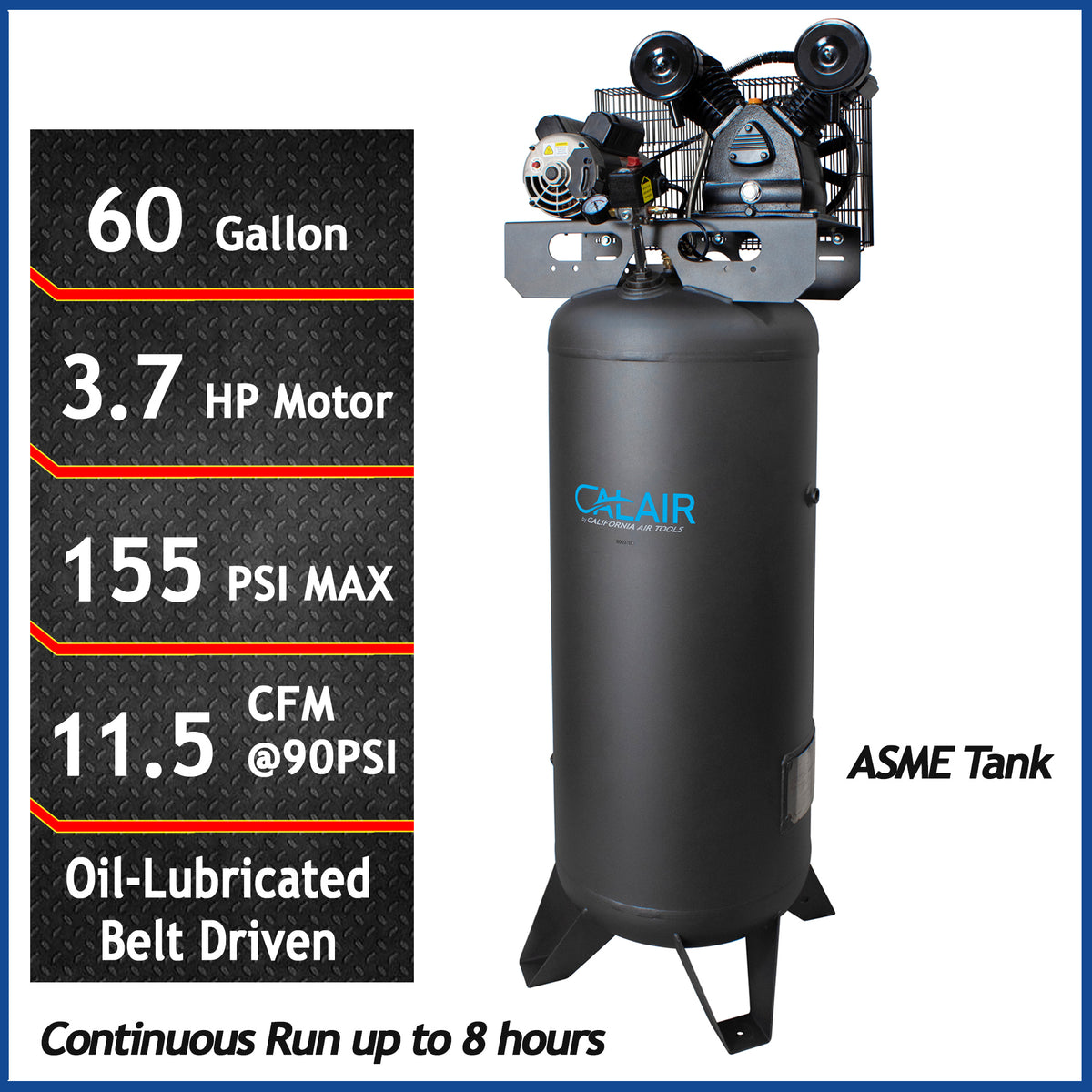

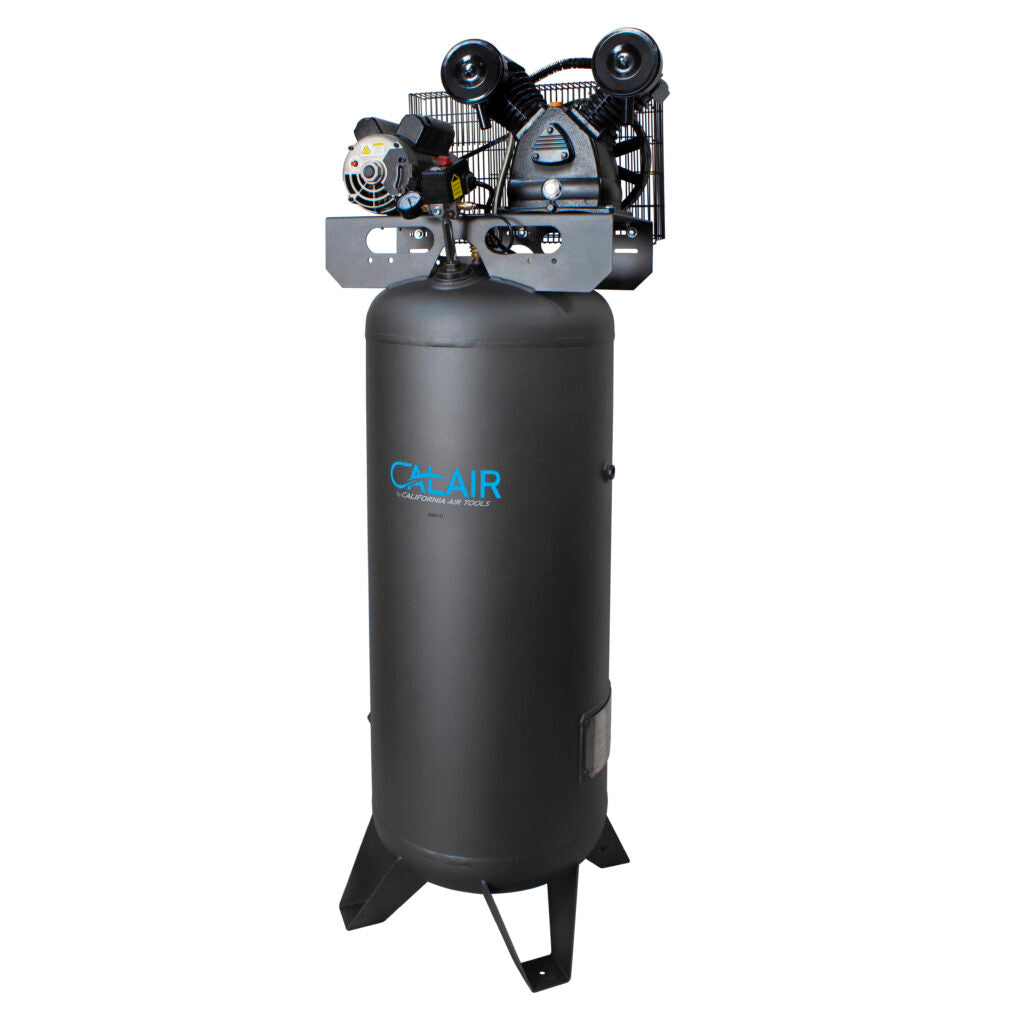

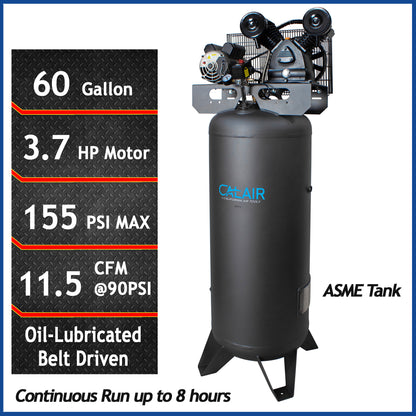

California Air Tools CALAIR 60037BD 3.7 HP 60 Gallon One-Stage Oil-Lubricated Belt-Driven Air Compressor

Product Description

The California Air Tools CALAIR 60037BD is a 3.7 HP continuous-run, oil-lubricated belt-driven air compressor designed for commercial and semi-rugged shop environments. It features a 60-gallon ASME-certified steel vertical air tank and a two-cylinder, single-stage belt-driven pump designed for continuous operation for up to 8 hours at 90 PSI.

The belt-driven pump operates with an oil-lubricated design and is engineered for a 5,000 to 10,000-hour service life before maintenance or service. The compressor delivers 13.6 CFM at 40 PSI and 11.5 CFM at 90 PSI, making it suitable for a wide range of pneumatic tools and shop applications.

Key Features

• 3.7 HP electric motor
• Continuous-run design for up to 8 hours at 90 PSI
• Oil-lubricated belt-driven pump
• Two-cylinder single-stage pump
• 60-gallon ASME-certified steel air tank
• 13.6 CFM at 40 PSI
• 11.5 CFM at 90 PSI
• 125–155 PSI working pressure
• 180 PSI maximum tank pressure
• 5,000–10,000-hour pump service life
• 16.7-amp draw
• Dedicated 20-amp outlet required
• Motor thermal overload protection
• Motor reset switch

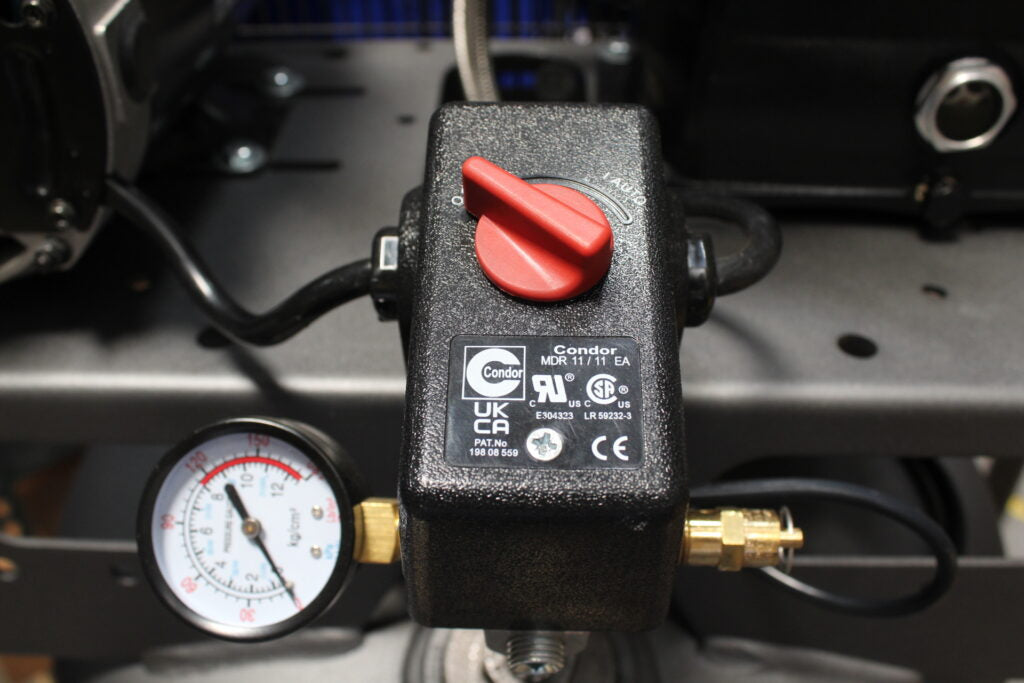

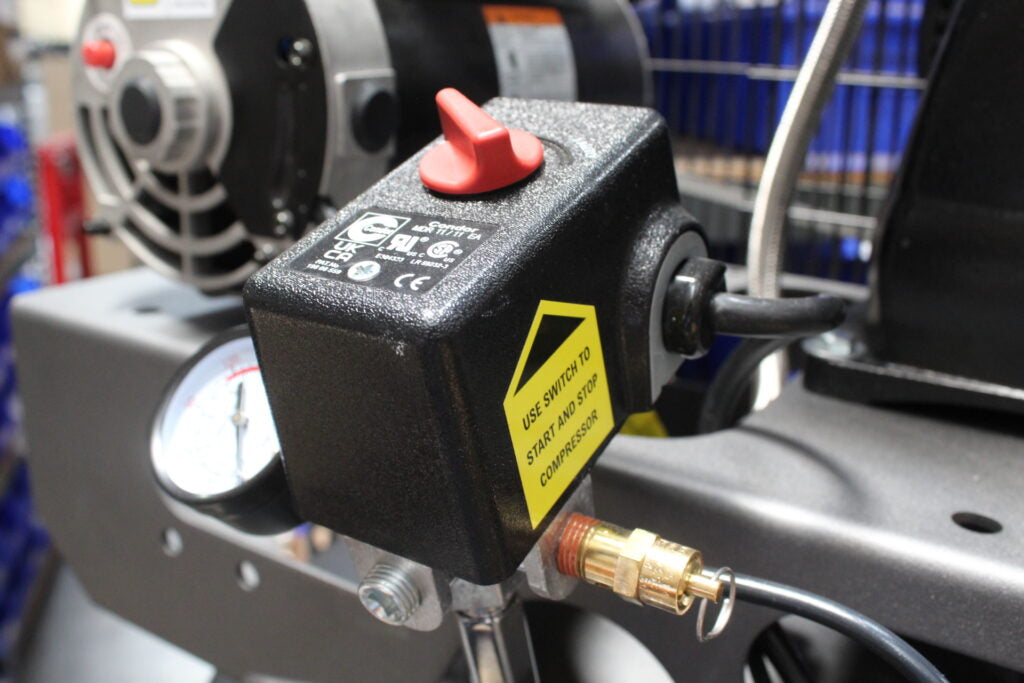

• Power-on/pressure switch
• 1/2-inch NPT output port
• Manual ball drain valve
• 200 PSI safety relief valve
• 90 dB noise level
• NEMA L6-30P plug

Specifications

• Brand: California Air Tools
• Series: CALAIR
• Model: 60037BD
• Motor Power: 3.7 HP
• Pump Type: Belt-Driven
• Pump Lubrication: Oil-Lubricated
• Pump Configuration: Two-Cylinder Single Stage
• Pump Service Life: 5,000–10,000 hours
• Tank Capacity: 60 gallons
• Tank Material: Steel
• Tank Certification: ASME Certified
• Tank Orientation: Vertical
• Airflow: 13.6 CFM @ 40 PSI
• Airflow: 11.5 CFM @ 90 PSI
• Working Pressure: 125–155 PSI
• Maximum Tank Pressure: 180 PSI
• Voltage: 208–230V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 16.7 Amps
• Required Outlet: Dedicated 20 Amp
• Noise Level: 90 dB
• Maximum Continuous Run: 8 hours at 90 PSI
• Maximum Run Time: 10 hours
• Air Port: 1/2" NPT
• Drain: Manual Ball Drain Valve
• Safety Valve: 200 PSI Safety Relief Valve
• Dimensions: 26" L × 20.5" W × 73.5" H
• Product Weight: 265 lbs
• Shipping Weight: 315 lbs on pallet
• Plug: NEMA L6-30P
• Ambient Operating Temperature: 36°F–108°F
• Warranty: 2-Year Limited Pump Warranty; 1-Year Limited Warranty on Other Components
• Assembly: Mexico with global components

What's Included

• California Air Tools CALAIR 60037BD 3.7 HP Air Compressor
• 60-gallon ASME-certified steel air tank
• Oil-lubricated belt-driven pump
• Manual ball drain valve
• 200 PSI safety relief valve
• NEMA L6-30P power plug

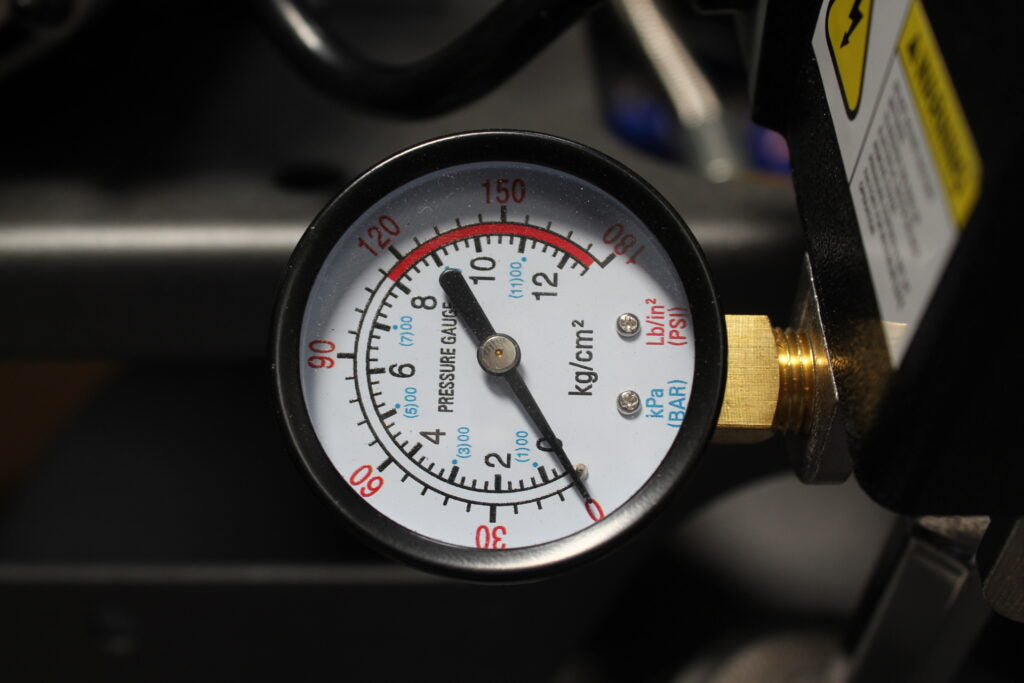

• Pressure gauge

Applications

The CALAIR 60037BD is designed for commercial and semi-rugged environments and is suitable for air brushing, bolting, brad nailing, cutting, drilling, grinding, finish nailing, framing nailing, HVLP painting, hobby nailing, hobby painting, inflation, roof nailing, spraying, stapling, trim work and impact tools or wrenching.

Maintenance

The oil-lubricated belt-driven pump requires regular oil and maintenance according to the manufacturer's recommendations. The pump is designed for approximately 5,000–10,000 hours of use before maintenance or service. Regularly check the pump oil level, belt condition, air filter, drain valve, safety relief valve and electrical connections. Use the specified ISO 68 / LDAB68 compressor oil and keep the air intake filter clean for proper airflow.
