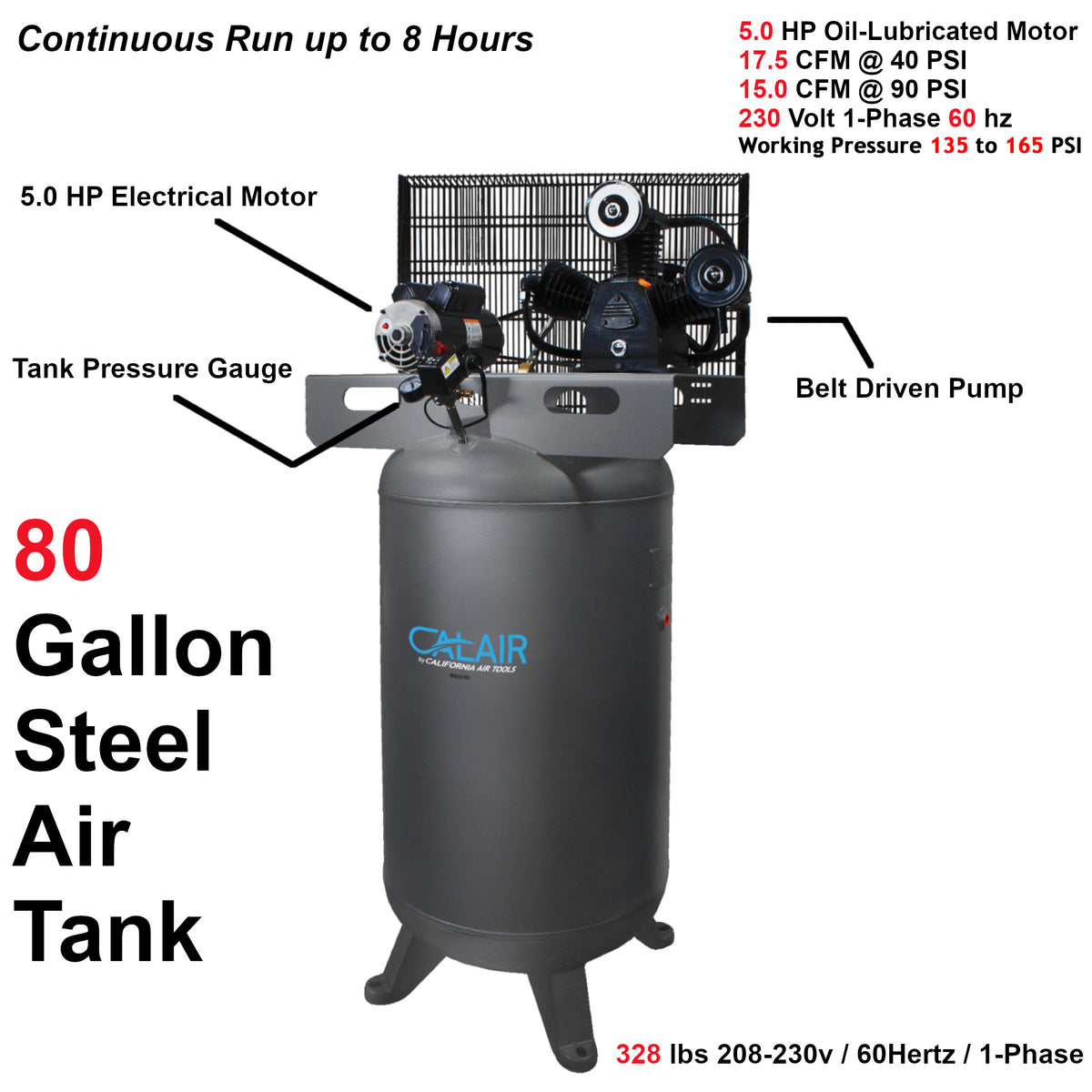

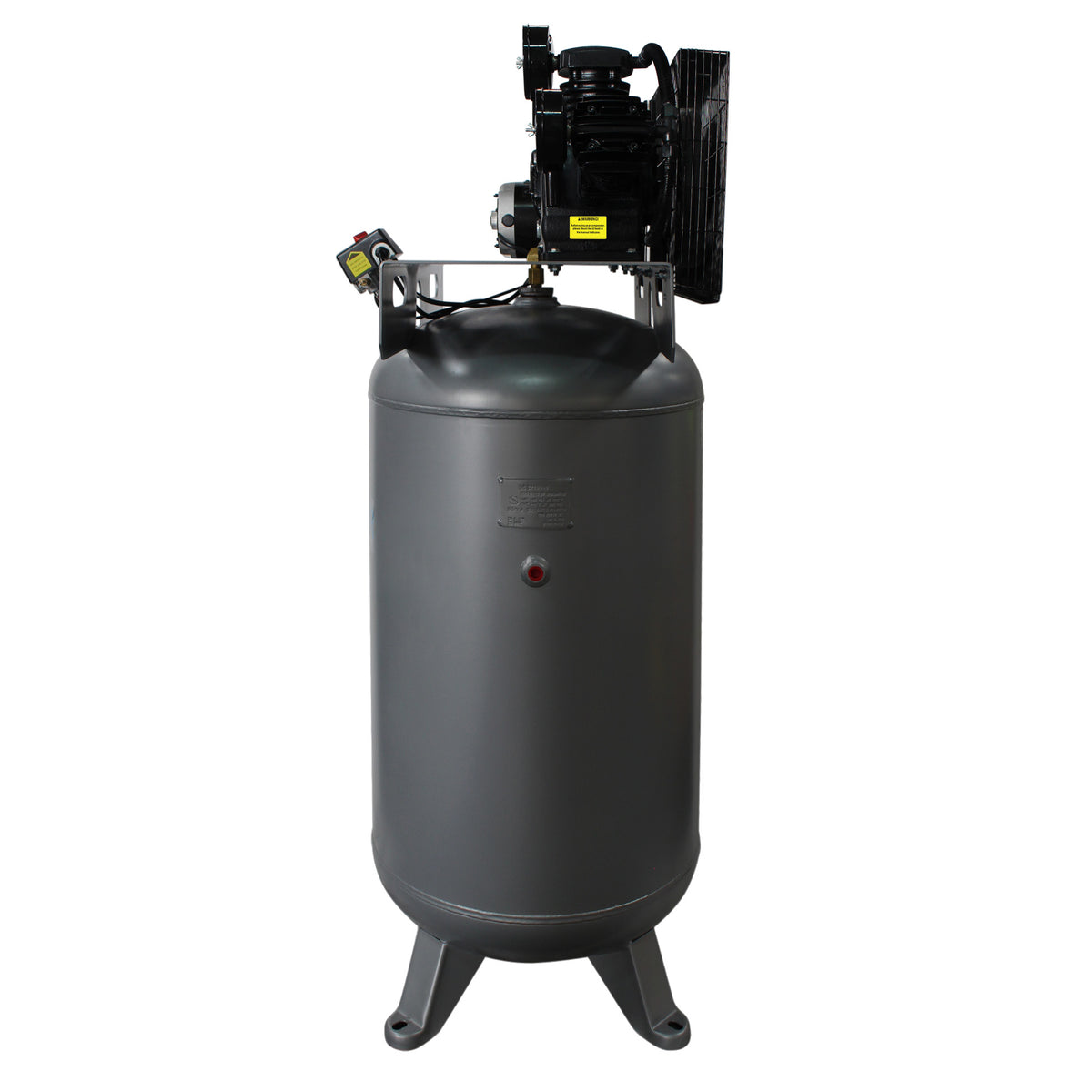

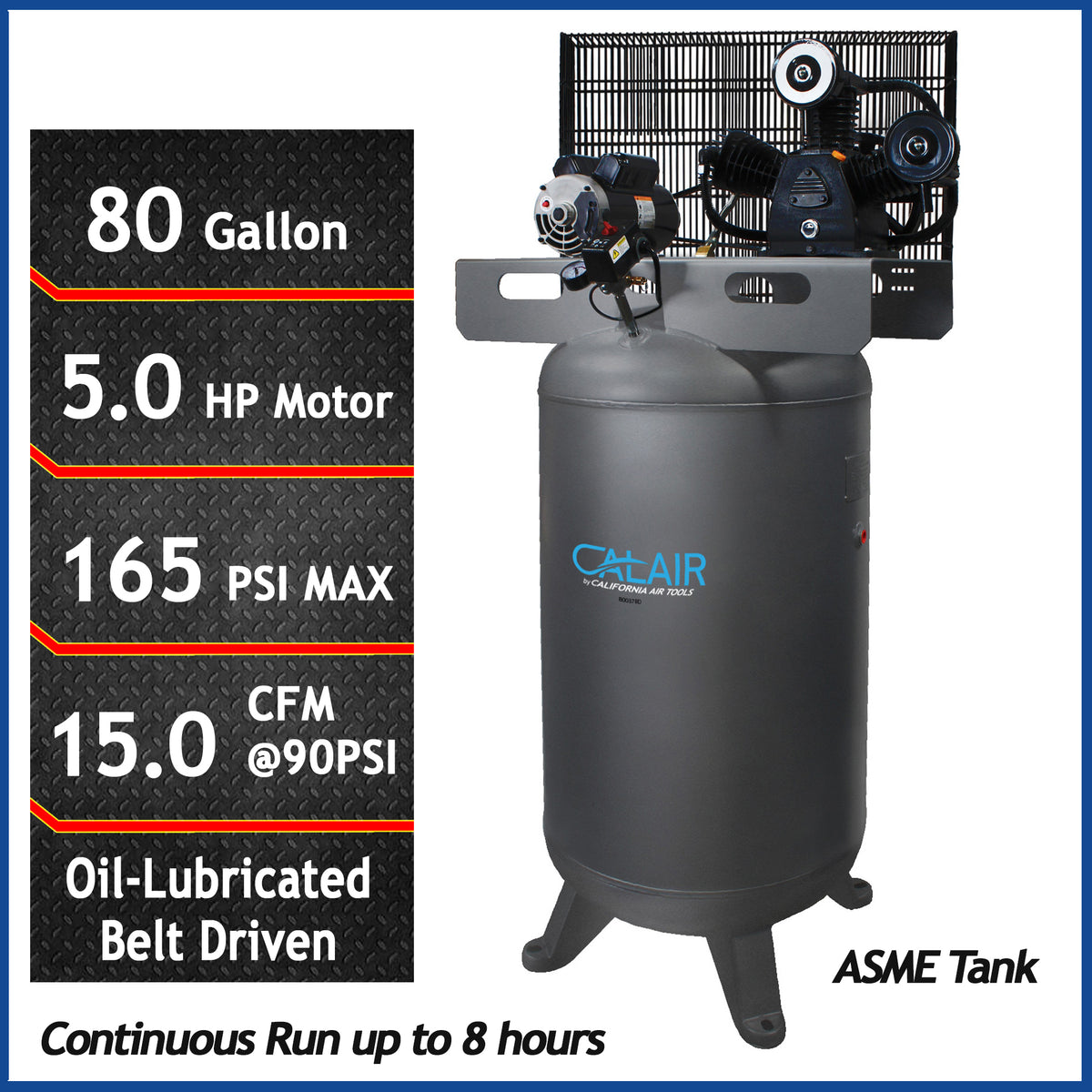

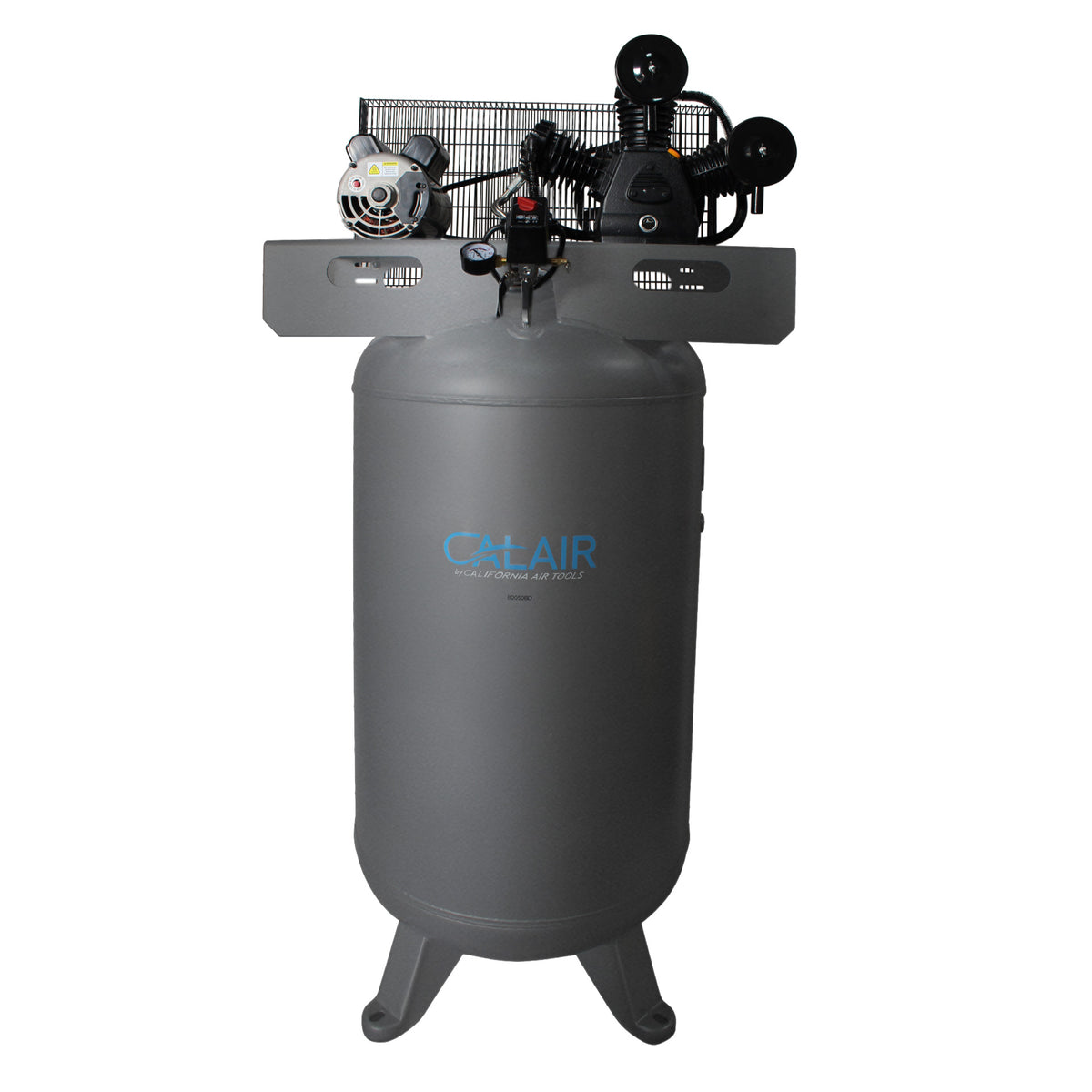

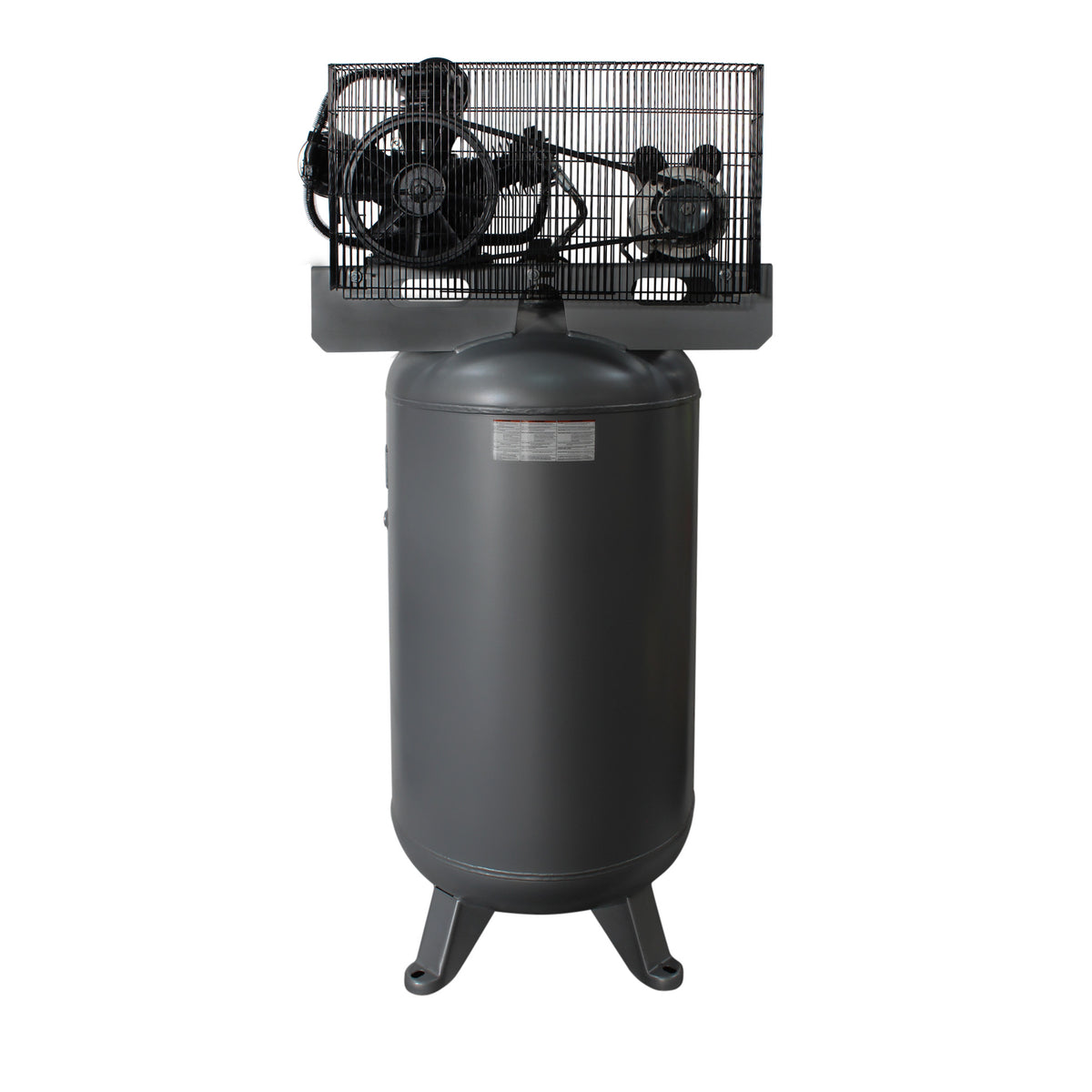

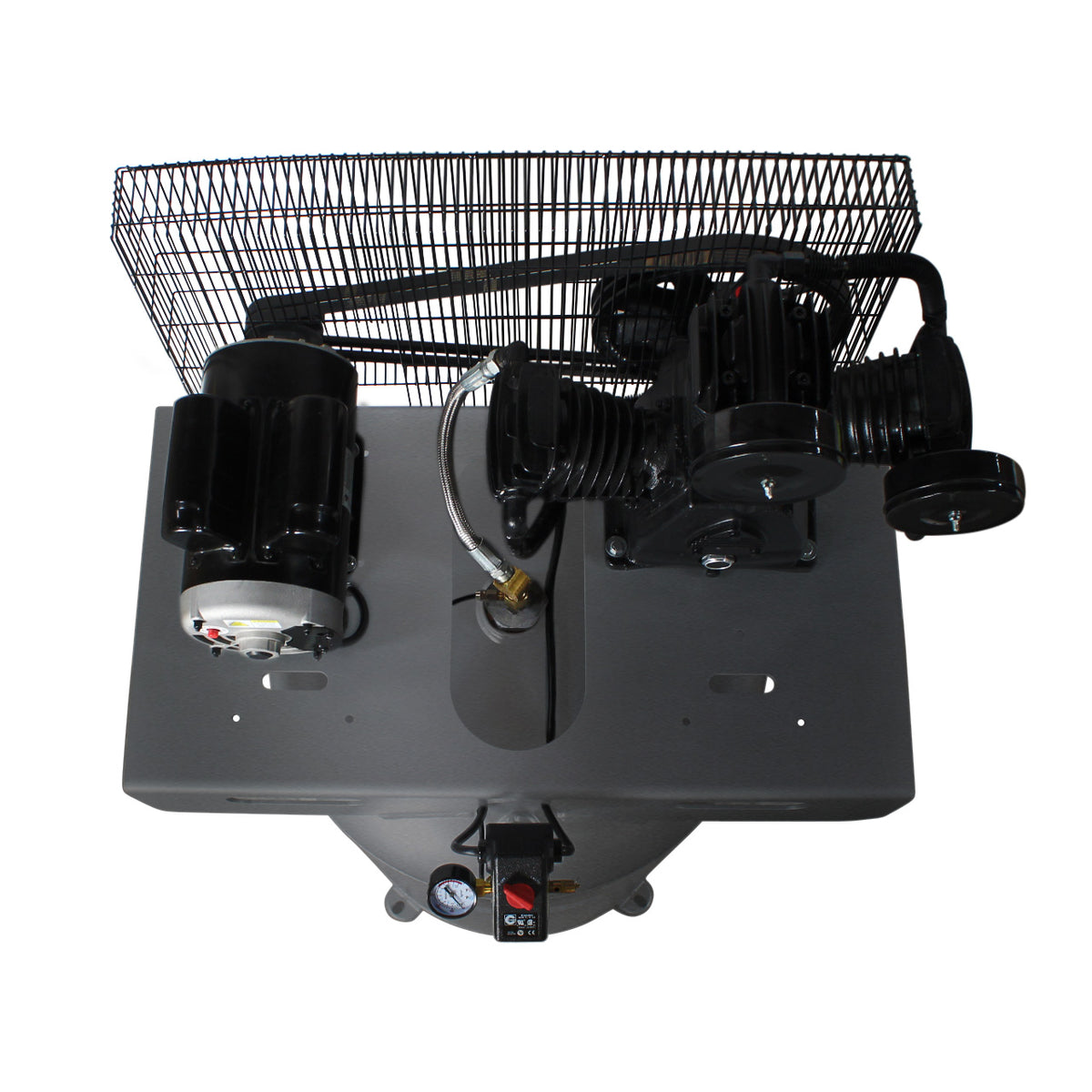

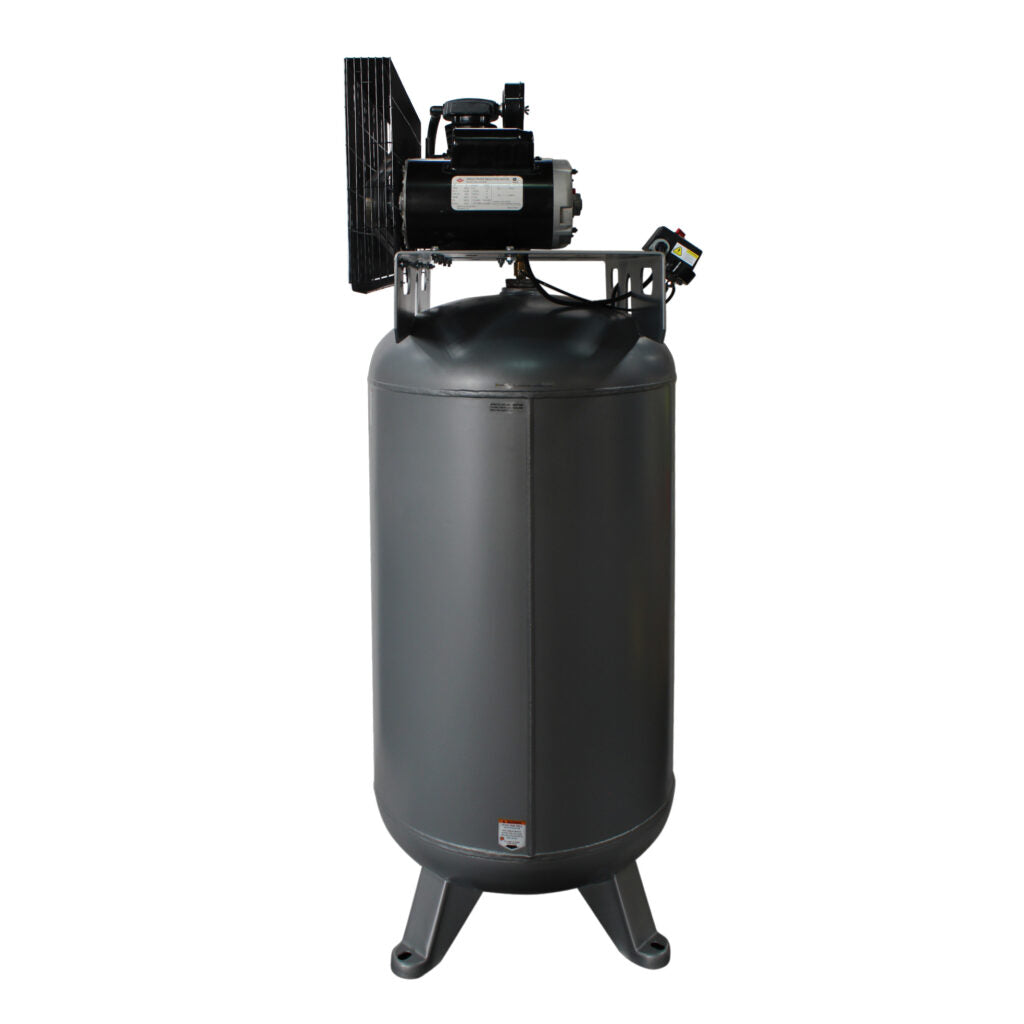

California Air Tools CALAIR 80050BD 5.0 HP 80 Gallon One-Stage Oil-Lubricated Belt-Driven Air Compressor

Product Description

The California Air Tools CALAIR 80050BD is a powerful 5.0 HP continuous-run, oil-lubricated belt-driven air compressor designed for commercial and industrial environments. It features a large 80-gallon ASME-certified steel air tank and a three-cylinder single-stage belt-driven pump engineered for reliable airflow and extended operation.

The CALAIR 80050BD is designed for continuous running for up to 8 hours at 90 PSI. Its belt-driven oil-lubricated pump operates at 1072 RPM and is designed for a 5,000 to 10,000-hour service life before maintenance or service. The compressor delivers 17.5 CFM at 40 PSI and 15.0 CFM at 90 PSI.

The large 80-gallon ASME-certified vertical steel tank provides substantial compressed-air storage for shops, warehouses and factories. The compressor uses a 208–230V, 60Hz, single-phase electrical configuration and requires a dedicated 30-amp outlet.

Key Features

• 5.0 HP electric motor
• Continuous-run design for up to 8 hours at 90 PSI
• Oil-lubricated belt-driven pump
• Three-cylinder single-stage pump
• 80-gallon ASME-certified steel air tank
• 17.5 CFM at 40 PSI
• 15.0 CFM at 90 PSI
• 135–165 PSI working pressure
• 165 PSI maximum tank pressure
• 5,000–10,000-hour pump service life
• 1072 RPM motor speed
• 24-amp draw
• Dedicated 30-amp outlet required
• Motor thermal overload protector
• Motor reset switch
• Power-on/pressure switch
• 1/2-inch NPT output air port
• Manual ball drain valve
• 200 PSI safety relief valve
• 90 dB noise level
• NEMA L6-30P plug

Specifications

• Brand: California Air Tools
• Series: CALAIR
• Model: 80050BD
• Motor Power: 5.0 HP
• Motor Speed: 1072 RPM
• Pump Type: Belt-Driven
• Pump Lubrication: Oil-Lubricated
• Pump Configuration: Three-Cylinder Single Stage
• Pump Service Life: 5,000–10,000 hours
• Tank Capacity: 80 gallons
• Tank Material: Steel
• Tank Certification: ASME Certified
• Tank Orientation: Vertical
• Airflow: 17.5 CFM @ 40 PSI
• Airflow: 15.0 CFM @ 90 PSI
• Working Pressure: 135–165 PSI
• Maximum Tank Pressure: 165 PSI
• Voltage: 208–230V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 24 Amps
• Power Requirements: Dedicated 30 Amp Outlet
• Noise Level: 90 dB
• Maximum Continuous Run: 8 hours at 90 PSI
• Maximum Run Time: 10 hours
• Air Port: 1/2" NPT
• Drain: Manual Ball Drain Valve
• Safety Valve: 200 PSI Safety Relief Valve
• Tank Fill Time: Approximately 7 minutes 50 seconds to 155 PSI
• Recovery Time: Approximately 1 minute 19 seconds from 135 to 165 PSI
• Dimensions: 35" L × 28" W × 68" H
• Weight: 328 lbs
• Shipping Weight: 416 lbs on pallet

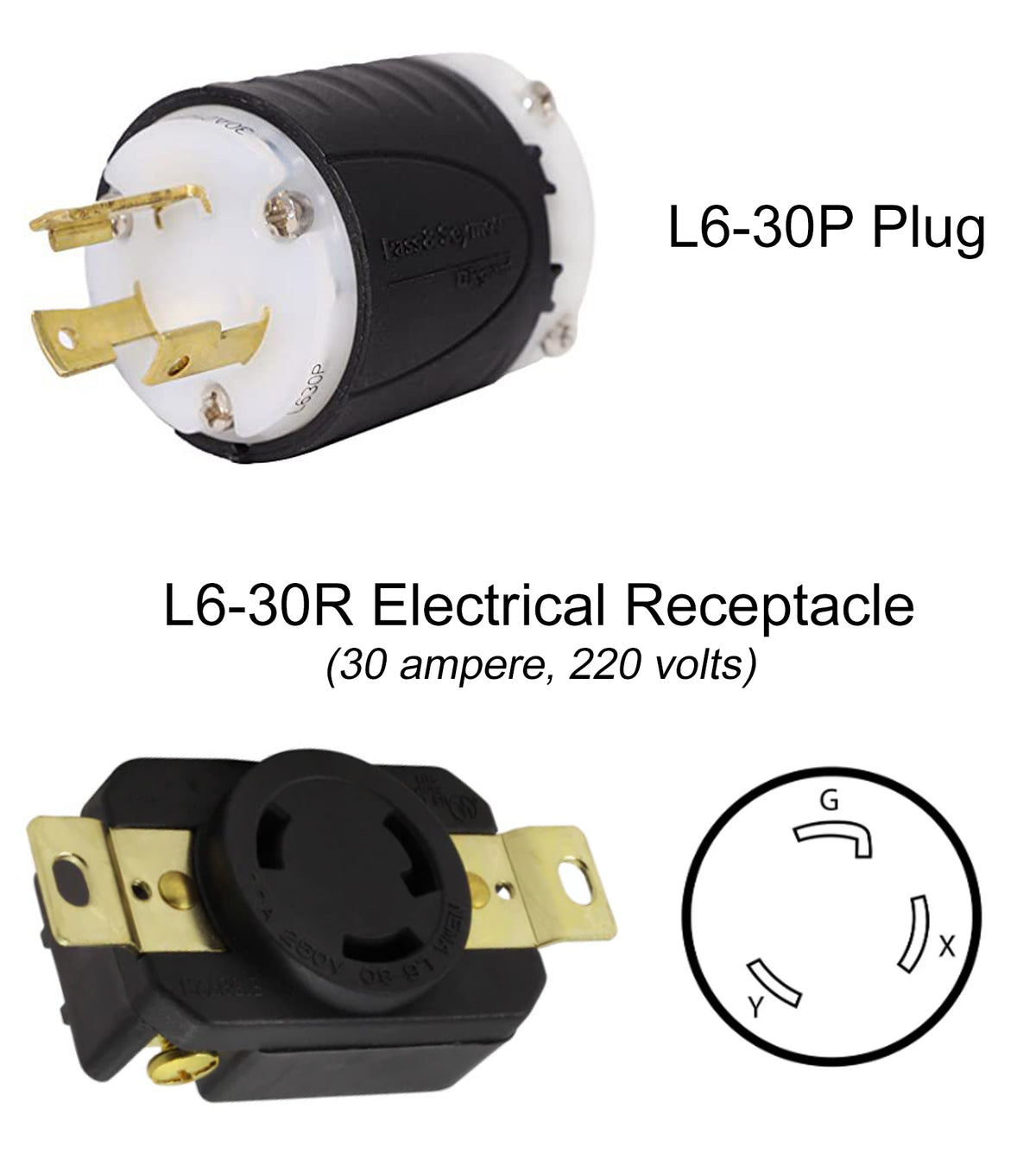

• Plug: NEMA L6-30P
• Receptacle: NEMA L6-30R
• Ambient Operating Temperature: 36°F–108°F
• Warranty: 2-Year Limited Pump Warranty; 1-Year Limited Warranty on Other Components
• Assembly: Mexico with global components

What's Included

• California Air Tools CALAIR 80050BD 5.0 HP Air Compressor
• 80-gallon ASME-certified steel air tank
• Oil-lubricated belt-driven pump
• Manual ball drain valve
• 200 PSI safety relief valve
• NEMA L6-30P power plug
• Pressure gauge

Applications

The CALAIR 80050BD is designed for commercial and industrial environments, including shops, warehouses and factories. Applications include air brushing, bolting, brad nailing, cutting, drilling, grinding, finish nailing, framing nailing, HVLP painting, hobby nailing, hobby painting, inflation, roof nailing, spraying, stapling, trim work and impact tools or wrenching.

Maintenance

The oil-lubricated belt-driven pump requires regular oil and maintenance according to the manufacturer's recommendations. The pump is designed for approximately 5,000–10,000 hours of use before maintenance or service. Use ISO 68 / LDAB68 compressor oil and regularly inspect the oil level, drive belt, air filter, drain valve, safety relief valve and electrical connections. Keep the pump air intake filter clean to maintain proper airflow and performance.
