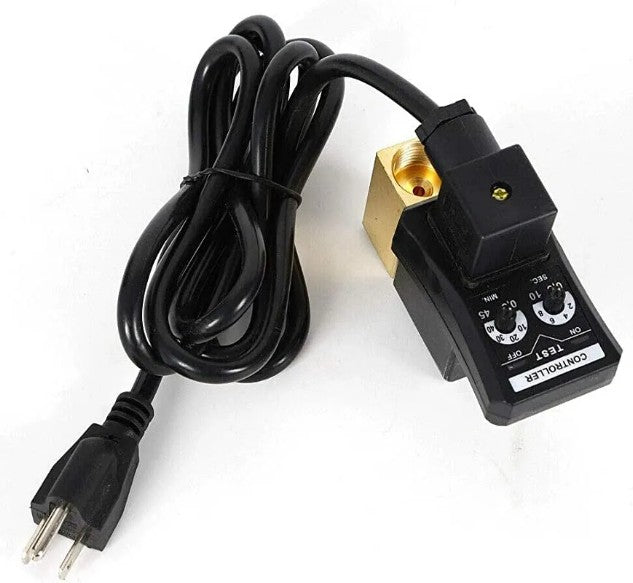

California Air Tools EZ-1 110V Automatic Drain Valve with Power Cord and Plug – 230 PSI

California Air Tools EZ-1 110V Automatic Drain Valve with Plug

The California Air Tools EZ-1 Automatic Drain Valve is designed to automatically drain accumulated moisture from air compressor tanks, reducing the need for manual draining. Its programmable timer allows users to set the frequency and duration of each drain cycle according to their requirements.

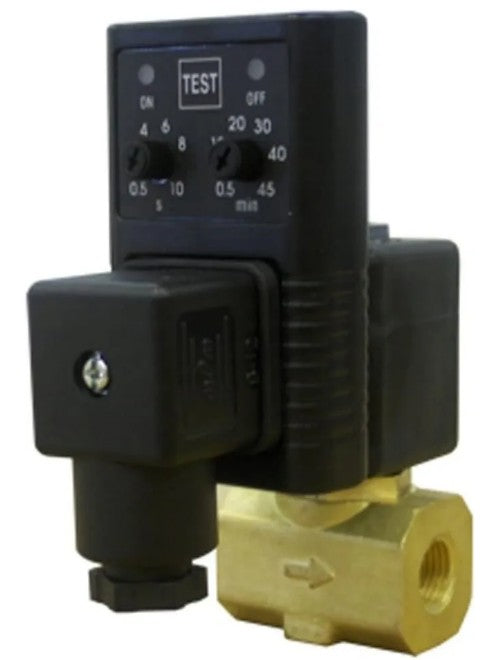

This 110V automatic drain valve features a forged brass valve body, a manual TEST switch, status indicator lights, and 1/4-inch NPT female inlet and outlet ports. It includes a power cord with a NEMA 5-15P plug for compatible 110V electrical outlets.

Key Features

• Automatically drains accumulated moisture from air compressor tanks.
• Programmable timer for drain frequency and duration.
• Forged brass valve body designed for industrial use.
• Manual TEST switch for operation testing.
• Status indicator lights for convenient monitoring.
• 1/4-inch NPT female inlet and outlet ports.
• 110V electrical operation.

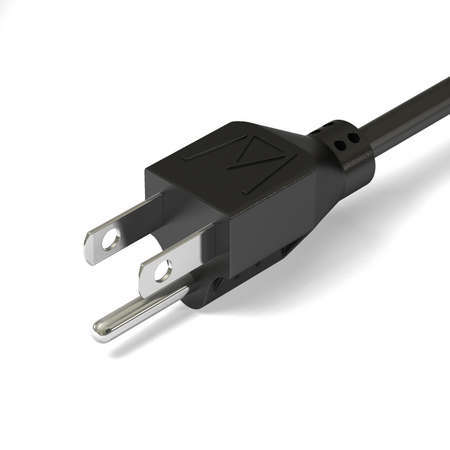

• Includes power cord with NEMA 5-15P plug.
• Maximum working pressure of 230 PSI.

Specifications

Benefits of Automatic Tank Draining

• Reduces the need for daily manual tank draining.
• Helps remove accumulated water from the air tank.
• Helps reduce internal tank rust and moisture entering air lines.
• Helps protect downstream air tools and equipment from moisture-related damage.

Installation Note

This listing is for the automatic drain valve replacement part with a power cord and plug. It is not a complete installation kit with all mounting hardware. For a complete kit, select the compatible EZ2321ADS short extension kit or EZ2321ADL long extension kit. Confirm electrical compatibility and installation requirements before ordering.
