California Air Tools MP-100LF 1.0 HP Long Life Oil-Free Motor/Pump – 110V, 60Hz, 125 PSI

California Air Tools MP-100LF 1.0 HP Long Life Oil-Free Motor/Pump

The California Air Tools MP-100LF Long Life Motor/Pump is a replacement unit designed for compatible California Air Tools air compressors. Its ultra-quiet, oil-free dual-piston pump system is engineered to provide reliable compressed-air output with reduced maintenance requirements.

Operating at a noise level of just 60 dB and a motor speed of 1,400 RPM, this 1.0 HP rated motor/pump is designed for applications where lower operating noise and long service life are important. It is tested for a minimum of 4,000 operating hours before wear, with an average motor/pump life of approximately 6,000 hours according to the manufacturer.

Key Features

• 1.0 HP rated/running power and 2.0 HP peak rating
• Ultra-quiet operation at 60 dB
• Oil-free dual-piston pump system
• Motor operates at 1,400 RPM
• Air output of 4.00 CFM at 40 PSI and 3.00 CFM at 90 PSI
• Maximum pressure of 125 PSI
• Tested for a minimum of 4,000 operating hours before wear
• Thermal overload protector

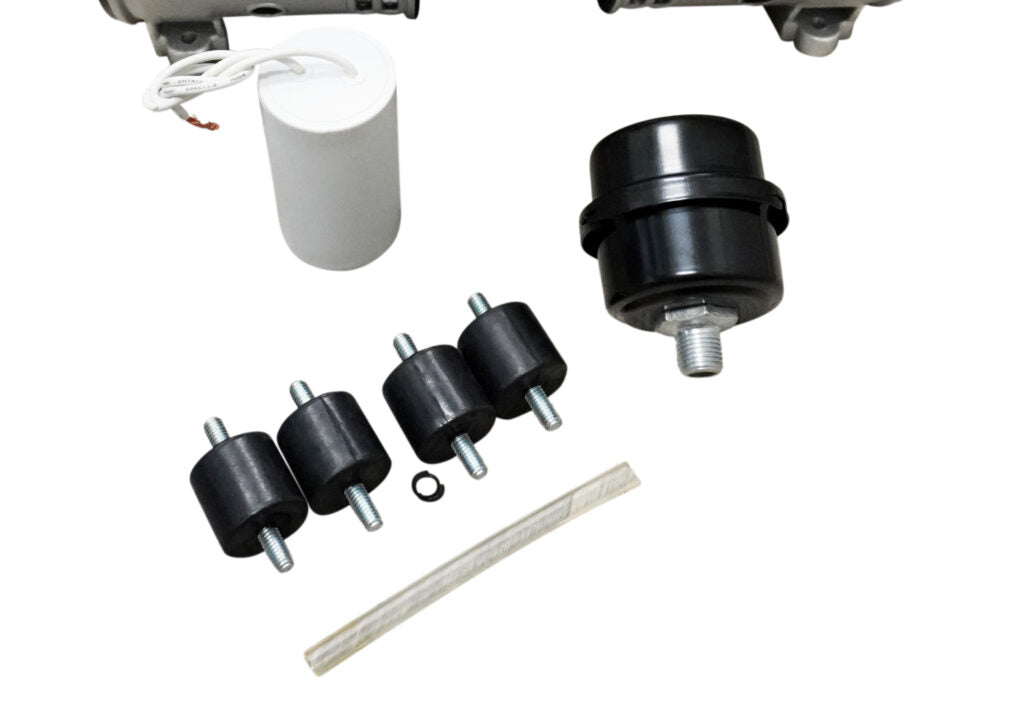

• Includes capacitor, air filter, and four shock struts
• Requires a properly configured unloader and/or bleeder valve

Specifications

Compatible California Air Tools Models

The manufacturer lists compatibility with the following models:

• CAT-2010ALFC and CAT-2010ALFCAD
• CAT-4610ALFC and CAT-4610ALFCAD
• CAT-6010LFC and CAT-6010ALFCAD
• CAT-8010ALFC and CAT-8010ALFCAD
• CAT-10010ALFC and CAT-10010ALFCAD
• CAT-8010SPC and CAT-8010SPCAD
• CAT-8010DSPC and CAT-8010DSPCAD

The manufacturer also indicates that it may be installed on certain earlier CAT-2010A, CAT-4610AC, CAT-4610S, CAT-8010, CAT-8010AD, CAT-8010A, and CAT-8010AAD models. Verify the exact model and mounting requirements before ordering.

Installation and Safety Note

This product is a replacement motor/pump, not a complete air compressor. Correct installation requires appropriate electrical and mechanical knowledge. The manufacturer specifies that an unloader and/or bleeder valve must be properly configured, together with a check valve, to release pressure from the pistons and prevent motor damage. Follow the manufacturer's installation instructions.
