California Air Tools VP-100LF-22060 1.0 HP Ultra Quiet Oil-Free Vacuum Pump/Motor – 220V 60Hz

California Air Tools VP-100LF-22060 1.0 HP Ultra Quiet Oil-Free Vacuum Pump/Motor

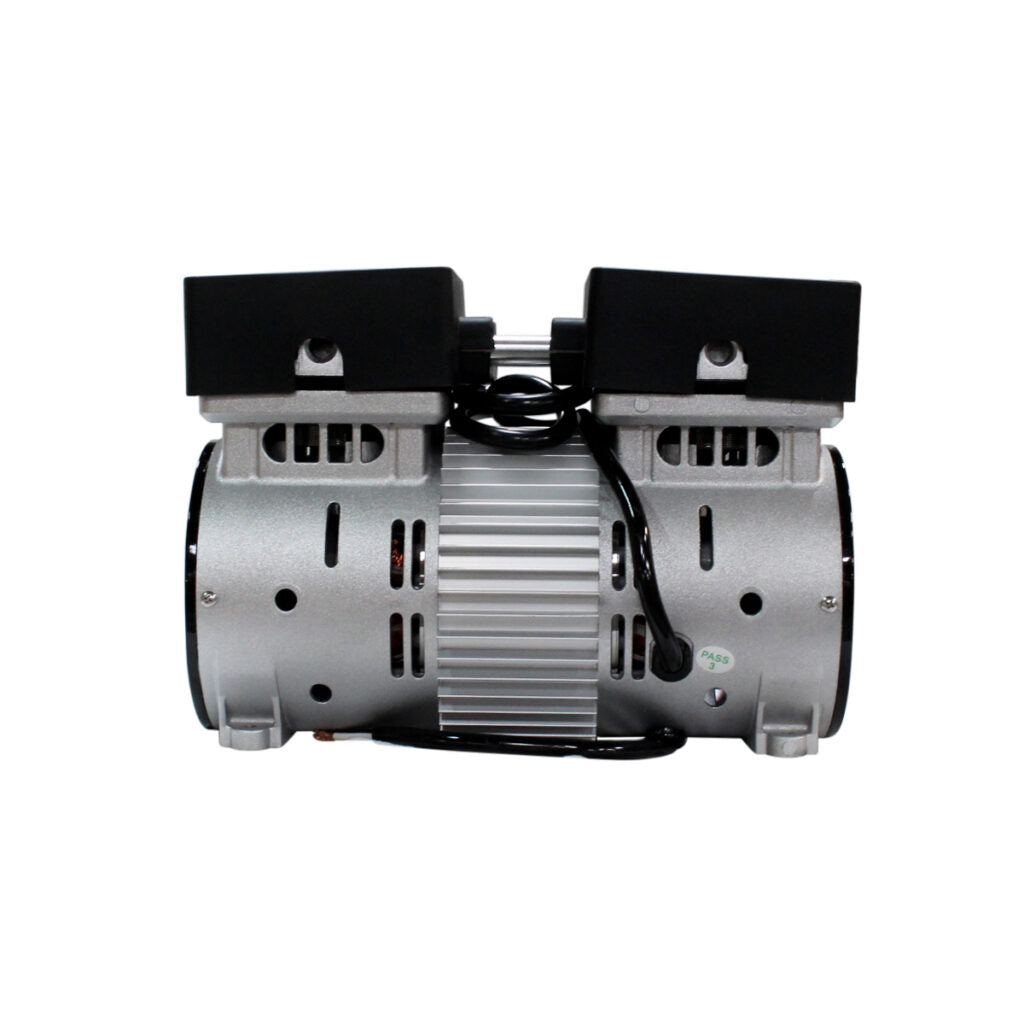

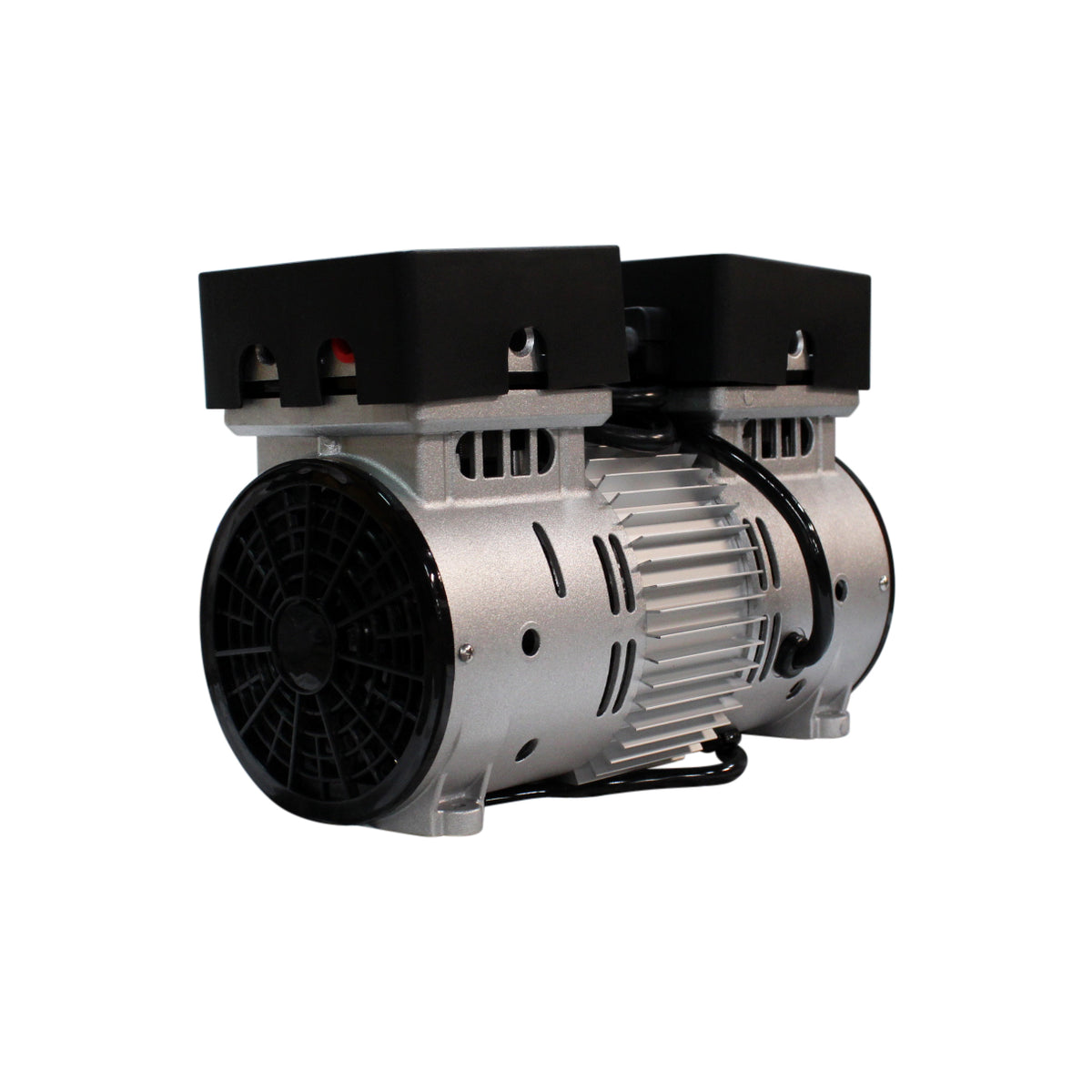

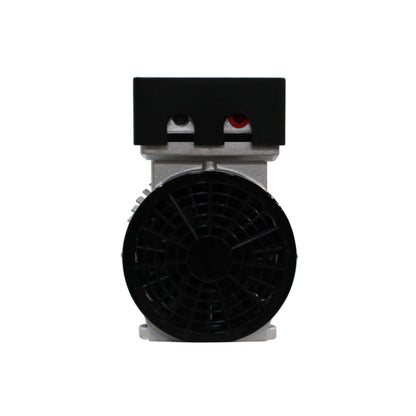

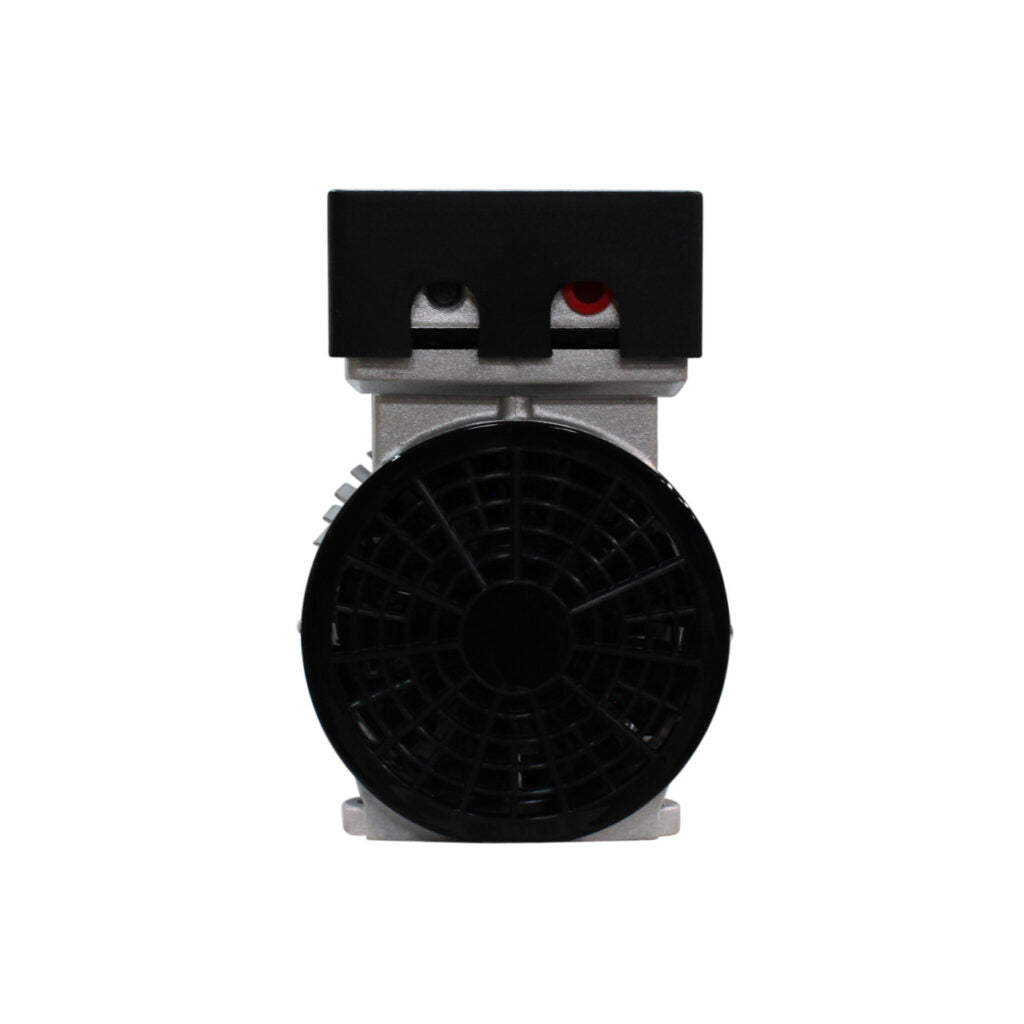

The California Air Tools VP-100LF-22060 is a 1.0 HP, two-stage oil-free vacuum pump and motor designed for quiet operation and extended service life. Operating at just 60 decibels, this unit is engineered to reduce noise while supporting longer operating periods.

Its dual-piston vacuum pump system, thermal overload protection, and heat-dissipation design help reduce wear and maintenance requirements. This 220V, 60Hz, single-phase replacement pump/motor is intended for compatible equipment and applications requiring vacuum performance.

Key Features

• 1.0 HP motor operating at 1,680 RPM.
• Ultra-quiet operation at approximately 60 decibels.
• Oil-free, dual-piston vacuum pump system.
• Two-stage vacuum pump design.
• 2.2 CFM open-flow displacement.
• Maximum vacuum of 28 in. Hg.
• Thermal overload protector.
• Designed for improved heat dissipation and reduced wear.

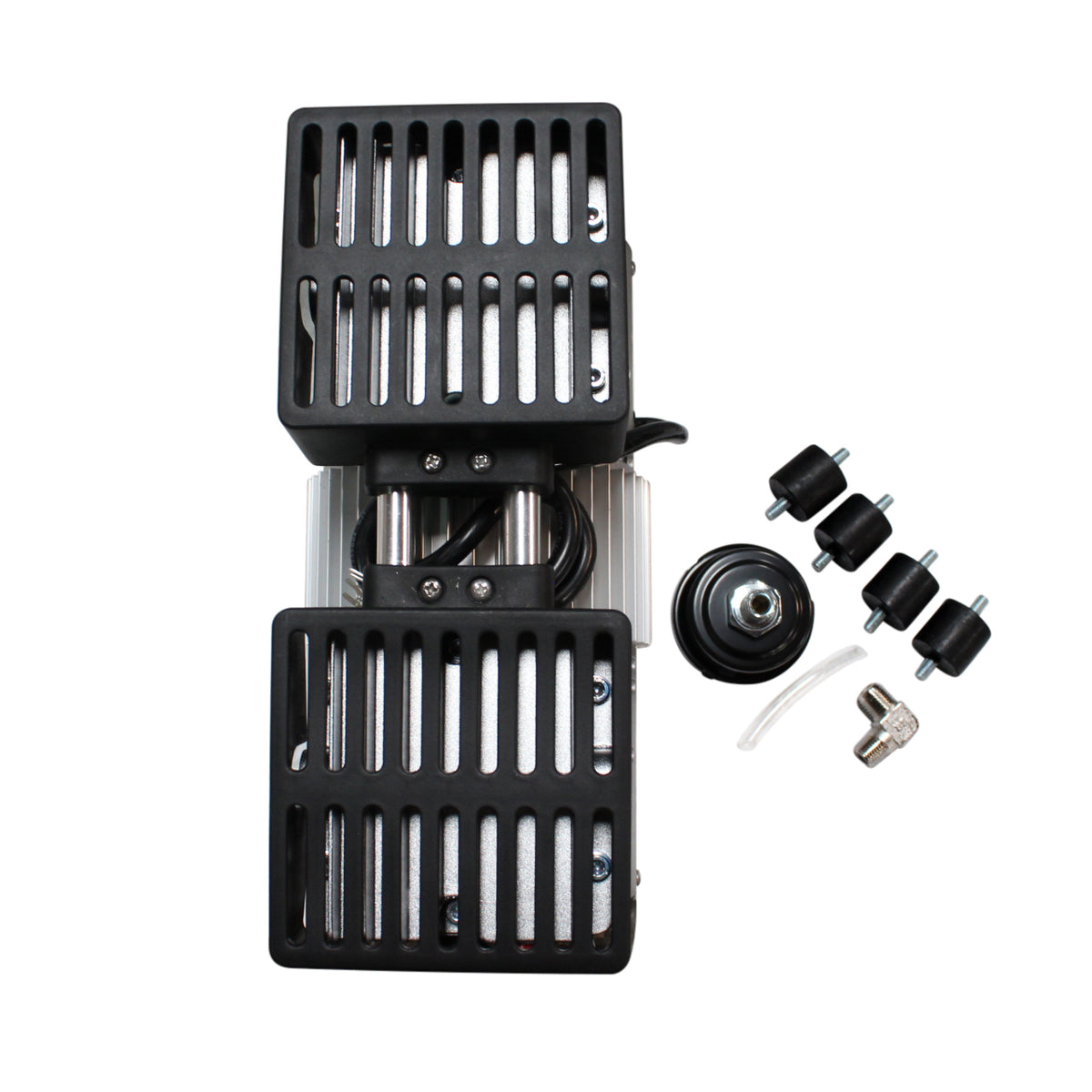

• Includes a 20 µF capacitor, 1.0 HP air filter, and four shock struts.
• CSA/UL certified, as specified by the manufacturer.

Specifications

Installation and Compatibility Note

This is a replacement vacuum pump/motor, not a complete air compressor. An unloader and/or bleeder valve may be required for installation. Confirm electrical and mechanical compatibility with your existing equipment before purchasing.
