CASTAIR D15324HC3-S 30 HP Duplex Air Compressor – 240 Gallon Horizontal Tank, 100.4 CFM at 175 PSI, 3-Phase
CASTAIR D15324HC3-S 30 HP Duplex Air Compressor – 240 Gallon Horizontal Tank, 100.4 CFM at 175 PSI, 3-Phase
- Regular price
- Price: $15,518.28
- Regular price
- List Price:
- Sale price
- Price: $15,518.28
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION

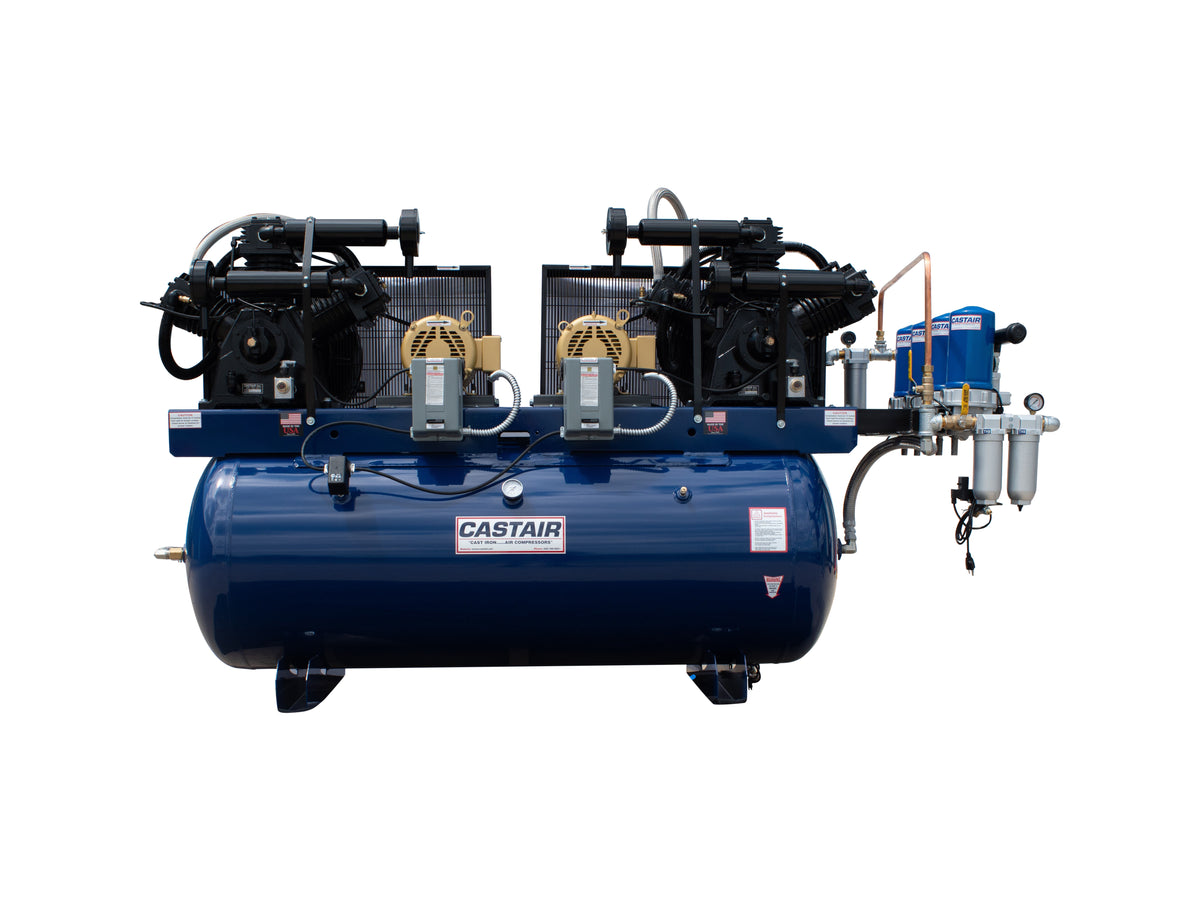

CASTAIR D15324HC3-S 30 HP Duplex Industrial Air Compressor
The CASTAIR D15324HC3-S is a heavy-duty duplex air compressor designed for industrial facilities, manufacturing plants, and commercial operations with high compressed-air demands. Its duplex configuration features two 15 HP pump-and-motor assemblies, providing a combined 30 HP of installed power.
Equipped with two HC3 pumps operating at 795 RPM, this three-phase compressor delivers 100.4 CFM at 175 PSI. The 240-gallon horizontal ASME tank provides substantial compressed-air storage for demanding applications. A factory-mounted and wired magnetic starter is included.
Key Features
- 30 HP total power: Two 15 HP pump-and-motor assemblies.
- Duplex configuration: Two compressor units integrated into one system.
- High air delivery: 123.4 CFM at 0 PSI and 100.4 CFM at 175 PSI.
- HC3 pump configuration: Both pumps operate at 795 RPM.
- 240-gallon horizontal tank: ASME tank for substantial air storage.
- Three-phase electrical supply: Available in compatible 208V, 230V, and 460V configurations; confirm the exact ordered voltage.
- Magnetic starter: Factory-mounted and wired.
- Cast-iron pump construction: Designed for durability and long service life.
- Industrial-duty design: Suitable for high-demand commercial and manufacturing environments.
Technical Specifications
| Brand | CASTAIR |
| Model | D15324HC3-S |
| Compressor Type | Duplex, two-stage reciprocating air compressor |
| Total Horsepower | 30 HP |
| Motor Configuration | 2 × 15 HP |
| Phase | Three-phase |
| Voltage | 208V / 230V / 460V configurations; verify order specification |
| Pump Configuration | 2 × HC3 pumps |
| Pump Speed | 795 RPM |
| Air Delivery at 0 PSI | 123.4 CFM |
| Air Delivery at 175 PSI | 100.4 CFM |
| Tank Capacity | 240 gallons |
| Tank Orientation | Horizontal |
| Tank Type | ASME |
| Dimensions (L × W × H) | 94 × 30 × 68 inches |
| Weight | 2,355 lb |
| Motor Starter | Magnetic starter, mounted and wired |
Applications
The CASTAIR D15324HC3-S is designed for industrial manufacturing, large workshops, automotive service facilities, and commercial operations that require high compressed-air capacity. Its dual-pump configuration and large receiver tank make it suitable for applications with substantial and sustained air demand.
Installation Requirements
Confirm electrical supply, available floor space, ventilation, and compressed-air demand before ordering. Due to the unit's size and weight, plan for suitable equipment handling and installation. Follow the manufacturer's installation instructions and applicable local codes.
Performance Note
Air delivery varies with operating pressure and system conditions. Select the compressor based on the application's airflow requirements and duty cycle. Confirm the required voltage and installation details with CASTAIR before purchase.
