CASTAIR
CASTAIR I10112HC2-S 10 HP Industrial Air Compressor, 120-Gallon Horizontal Tank, Single Phase
CASTAIR I10112HC2-S 10 HP Industrial Air Compressor, 120-Gallon Horizontal Tank, Single Phase
- Regular price
- Price: $4,787.20
- Regular price
- List Price:
- Sale price
- Price: $4,787.20
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION

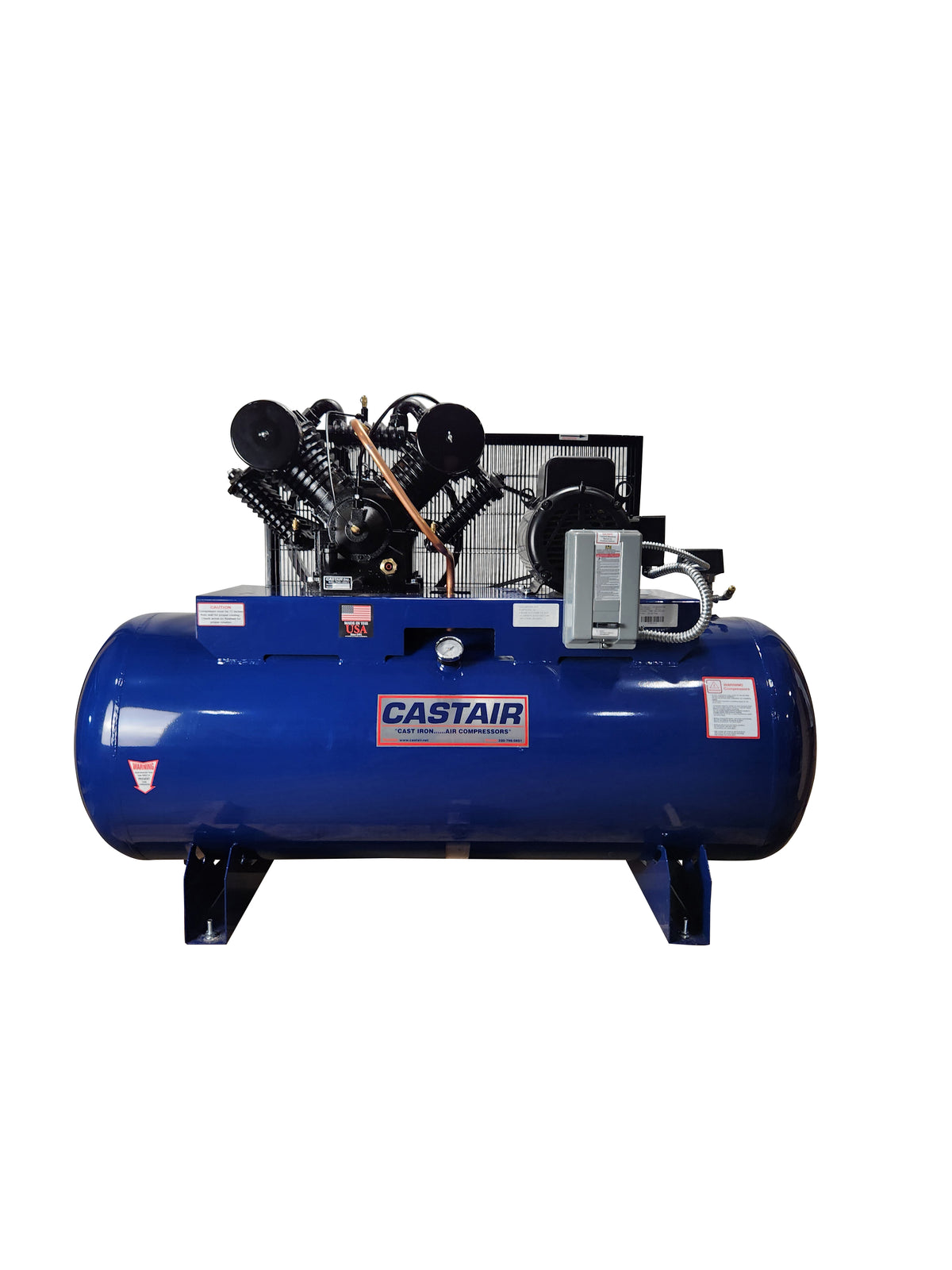

CASTAIR I10112HC2-S 10 HP Industrial Air Compressor
The CASTAIR I10112HC2-S is a heavy-duty industrial air compressor designed for demanding shop and workshop applications. It features a 10 HP motor, a 120-gallon horizontal ASME tank, and an all-cast-iron C2 pump operating at 758 RPM.
Delivering 35.0 CFM at 175 PSI, this compressor combines a low-speed pump design with industrial-grade components for dependable compressed-air performance. Its horizontal tank configuration is suitable for installations where vertical clearance is limited.
Key Features
- 10 HP motor: Industrial compressor configuration with single-phase power.
- 120-gallon horizontal tank: Powder-coated ASME tank with a horizontal channel base.
- C2 two-stage pump: All-cast-iron construction designed for durability and long service life.
- 758 RPM pump speed: Low-speed operation designed to support quiet performance and pump longevity.
- High air delivery: 45.0 CFM at 0 PSI and 35.0 CFM at 175 PSI.
- Factory-mounted magnetic starter: Included according to the supplier's product specifications.
- Tapered roller bearings: Support the crankshaft and help reduce friction.
- Four-ring pistons: Designed to improve efficiency and reduce oil carryover.
- Centrifugal unloader: Supports loadless startup.
- Industrial safety components: Includes an ASME safety valve and a fully enclosed metal belt guard.
- Heavy-duty motor: Manufacturer's industrial series specifies a 1,725 RPM motor with a service factor of 15% or higher.
Technical Specifications
| Brand | CASTAIR |
| Model | I10112HC2-S |
| Product Type | Industrial Air Compressor |
| Horsepower | 10 HP |
| Pump Configuration | C2, two-stage |
| Phase | Single phase |
| Voltage | 208/230V — confirm exact configuration with supplier |
| Tank Capacity | 120 gallons |
| Tank Orientation | Horizontal |
| Pump Speed | 758 RPM |
| Air Delivery at 0 PSI | 45.0 CFM |
| Air Delivery at 175 PSI | 35.0 CFM |
| Dimensions (L × W × H) | 69 × 24 × 50 inches |
| Weight | 875 lbs |
| Tank Certification | ASME |
| Tank Construction | Powder-coated steel |
| Pump Construction | Cast iron |
| Motor Speed | 1,725 RPM |
| Motor Service Factor | 15% minimum |
| Starter | Factory-mounted magnetic starter |
Industrial Compressed Air for Demanding Shops
The CASTAIR I10112HC2-S combines a 10 HP motor, a 120-gallon horizontal tank, and a two-stage cast-iron pump for industrial shop environments. Its published output of 35.0 CFM at 175 PSI makes it an option for applications requiring substantial compressed-air capacity. Confirm your electrical supply, air demand, and installation requirements before purchasing.
Model identification: CASTAIR I10112HC2-S.
