CASTAIR I51CUC1-S 5 HP Cube Air Compressor Power Unit – 17.5 CFM @ 175 PSI, Single Phase

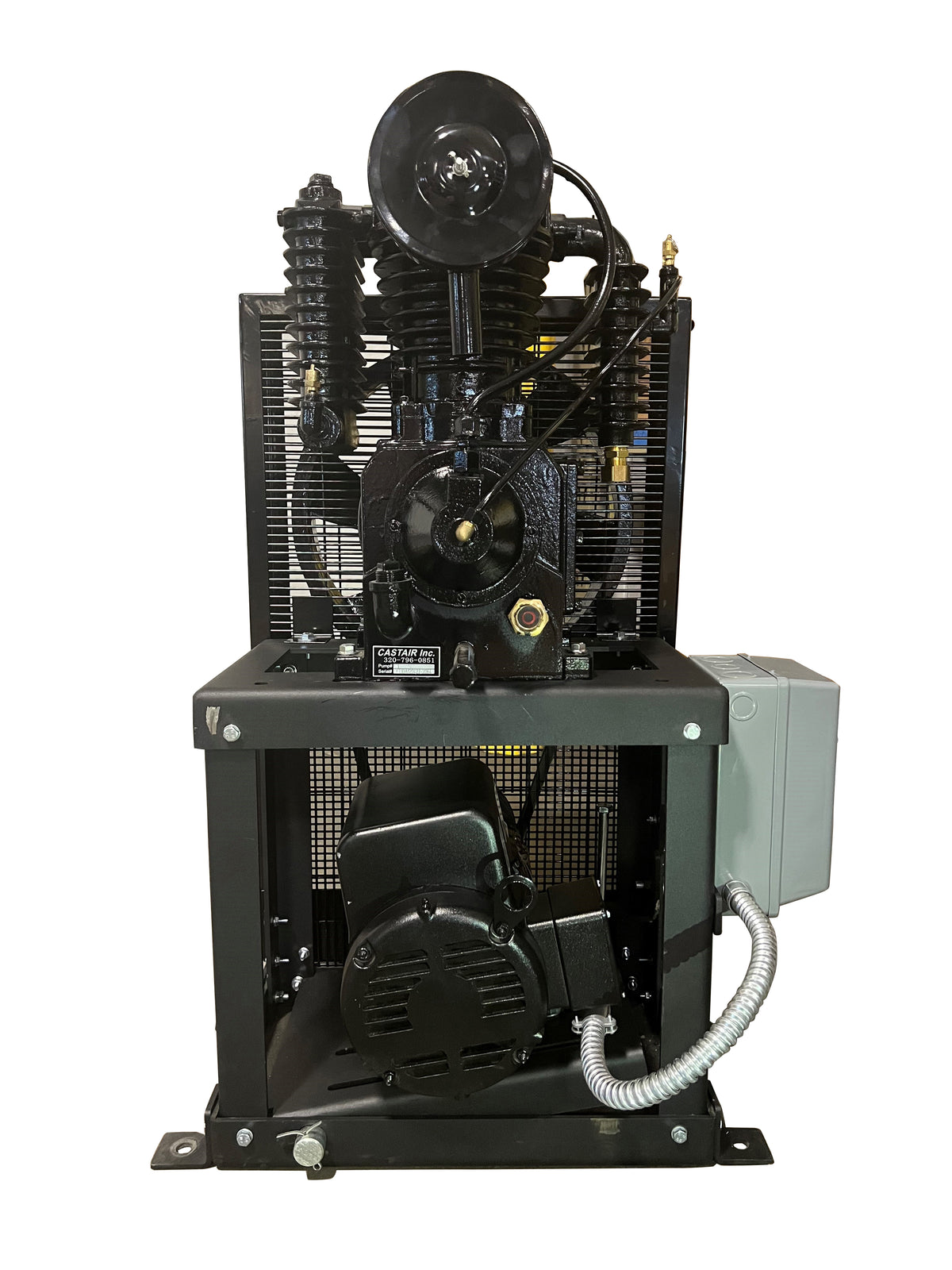

CASTAIR I51CUC1-S 5 HP Cube Air Compressor Power Unit

The CASTAIR I51CUC1-S is a 5 HP industrial Cube air compressor power unit designed for applications where a compact, tankless compressor assembly is needed. It delivers 17.5 CFM at 175 PSI and features a 767 RPM pump configuration.

Built on a rigid steel frame, this Cube package includes a mounted and wired magnetic motor starter and a self-tensioning motor base. It can be mounted to a compatible existing air tank, helping avoid replacement of a tank that remains in good working condition.

Key Features

• 5 HP motor: Designed for commercial and industrial compressed-air applications.
• Air delivery: 22.0 CFM at 0 PSI and 17.5 CFM at 175 PSI.
• 767 RPM pump: Manufacturer-specified pump speed.
• Tankless design: Intended for mounting to a compatible existing or remote tank.
• Mounted magnetic starter: Factory-mounted and wired.
• Rigid steel frame: Compact assembly designed for serviceability.
• Self-tensioning motor base: Supports belt tension management.
• 3/4-inch NPT female outlet: Standard pump discharge connection.

Technical Specifications

Installation Requirements

This is a tankless power unit, not a complete compressor with an integrated air tank. A compatible tank and pressure switch are required for operation. Depending on the installation, additional components such as a check valve, discharge line, fittings, and vibration pads may be needed.

Performance Note

Actual system performance depends on the installation, tank configuration, operating conditions, and connected equipment. Verify electrical requirements and compatibility with the manufacturer before installation.
