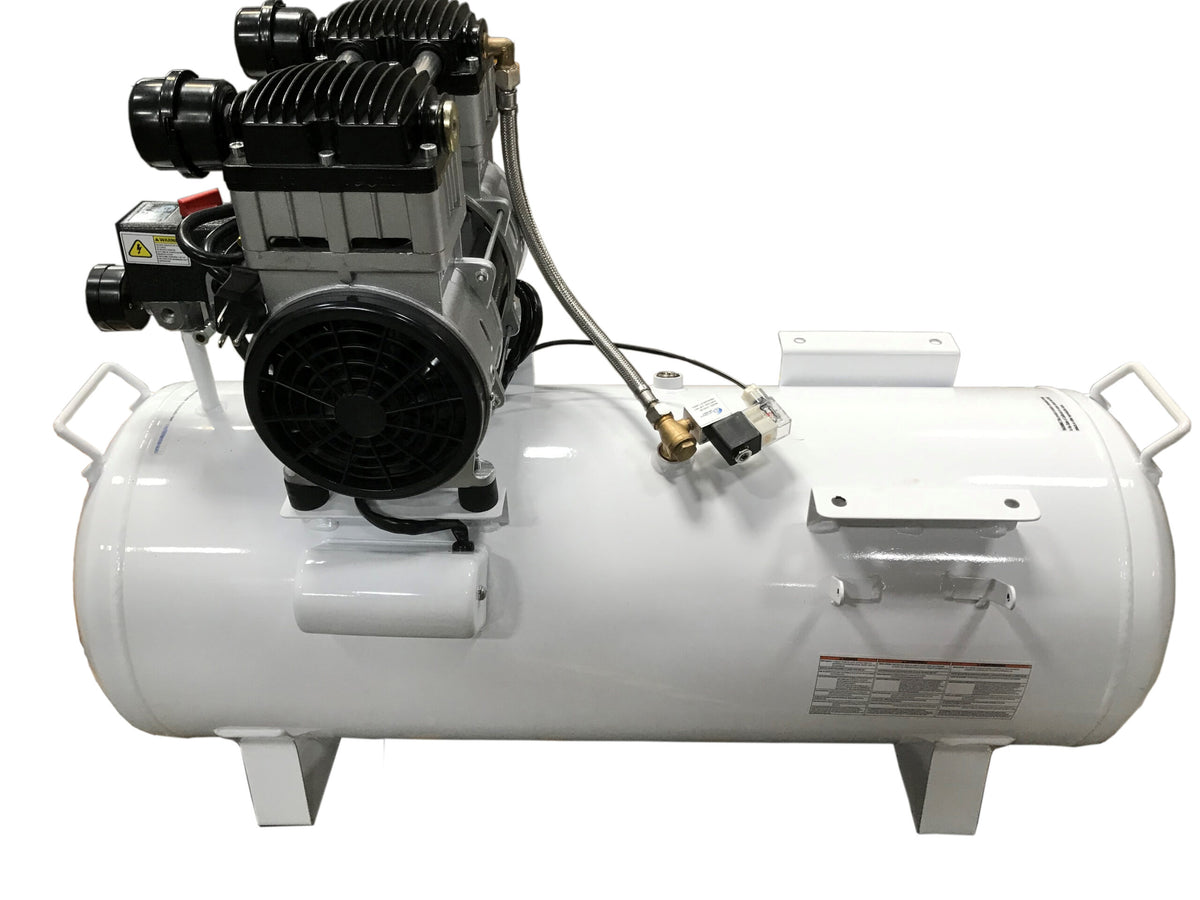

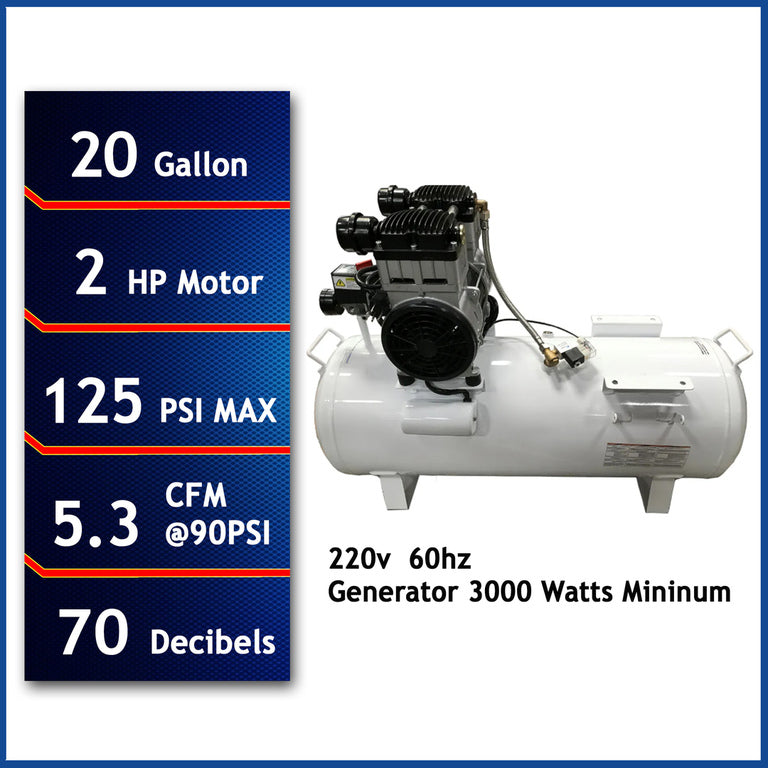

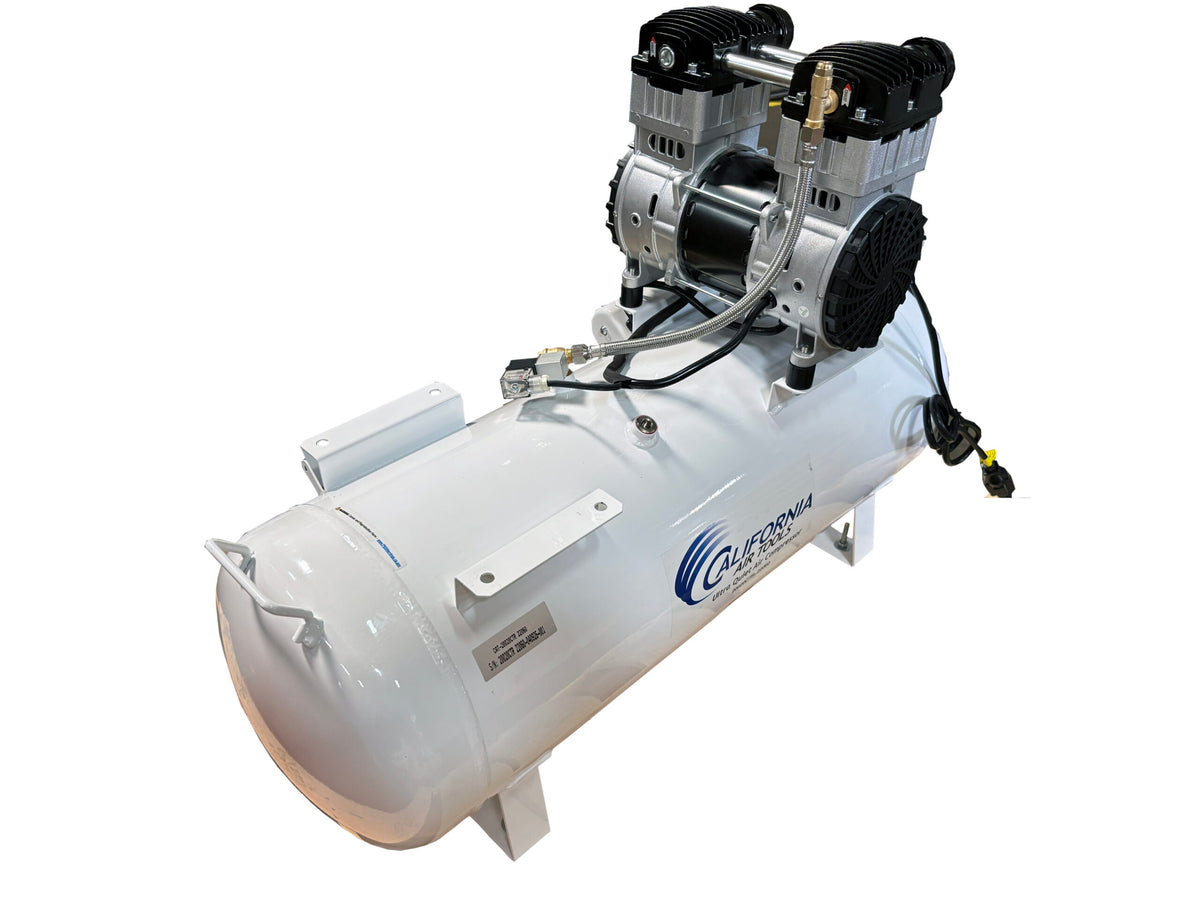

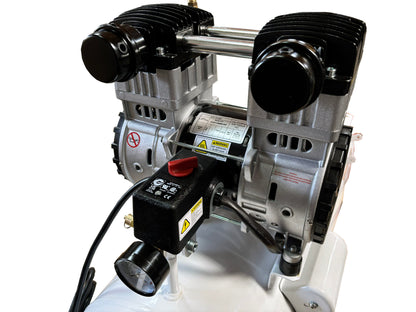

California Air Tools 20020CTR-22060 Ultra Quiet 70 dB 2.0 HP Oil-Free 20 Gallon Horizontal Air Compressor – 220V 60Hz

Product Description

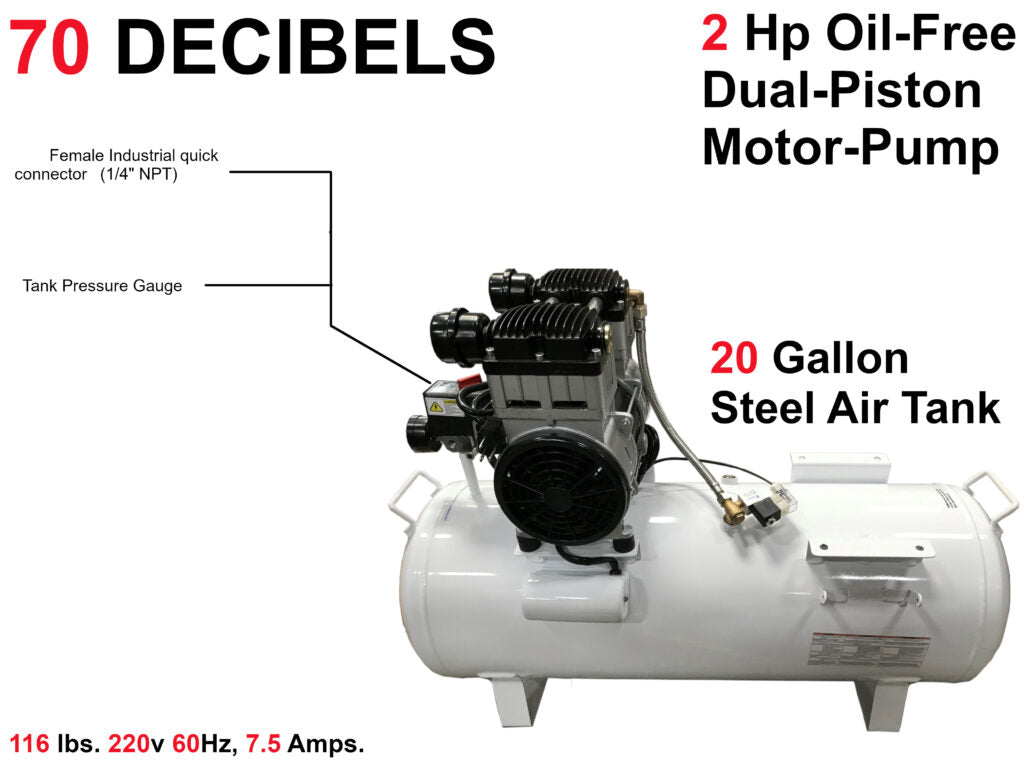

The California Air Tools 20020CTR-22060 is a powerful 2.0 HP ultra-quiet and oil-free air compressor featuring a 20-gallon horizontal steel air tank. Operating at only 70 dB, it is designed specifically for mobile truck and van applications, including roadside tire repair and tire service.

The 220V 60 Hz SP-9421-22060 motor operates at 1680 RPM, helping reduce noise and wear while supporting longer continuous run times. The oil-free dual-piston pump is engineered for high performance and durability, with a designed life cycle of 3,000+ hours before wear.

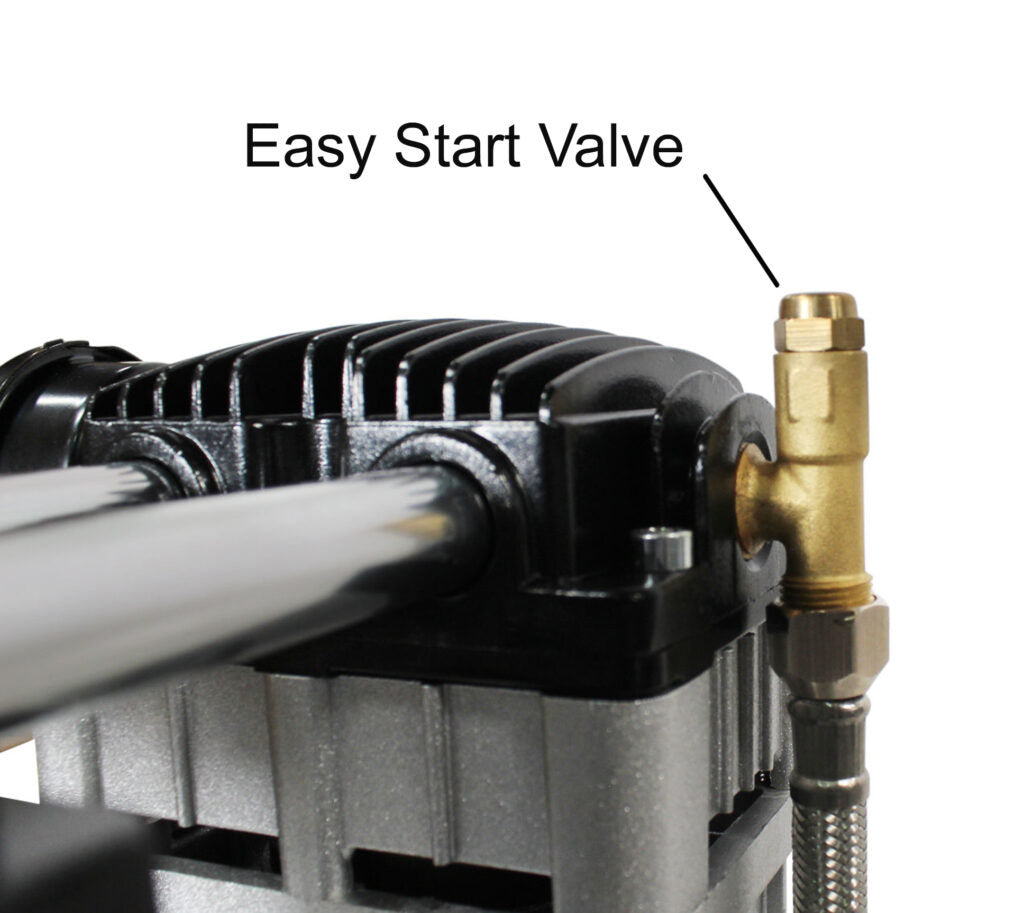

The large 20-gallon steel tank provides additional air storage for higher-demand pneumatic tools such as spray guns and sanders. The Easy Start Valve reduces starting amperage by allowing the motor to start under a no-load condition, which also helps with cold starts.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation

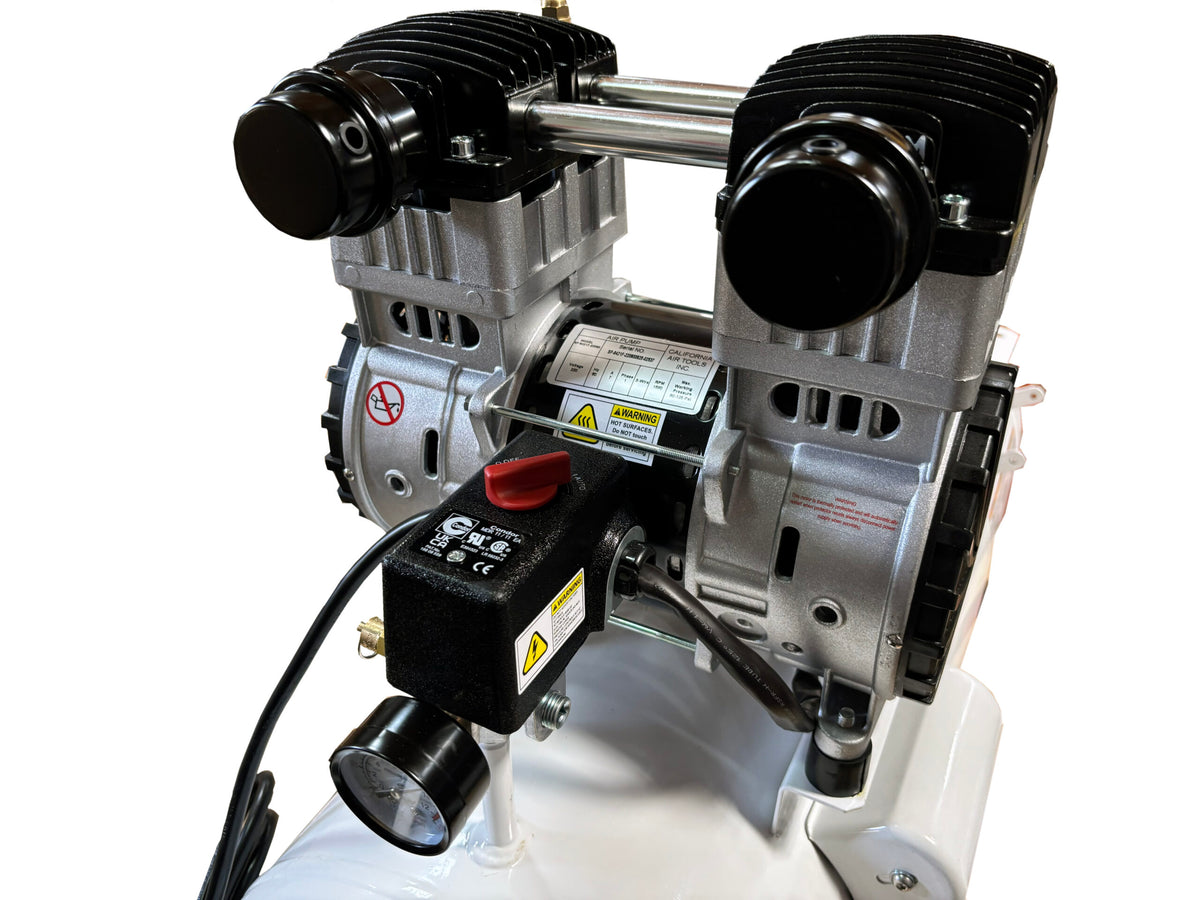

• Oil-free dual-piston pump
• 20-gallon horizontal steel air tank
• 220V, 60 Hz, single-phase operation
• SP-9421-22060 motor operating at 1680 RPM
• Designed for 3,000+ hours before pump wear
• Custom designed for mobile truck and van tire service applications
• Easy Start Valve for reduced starting amperage

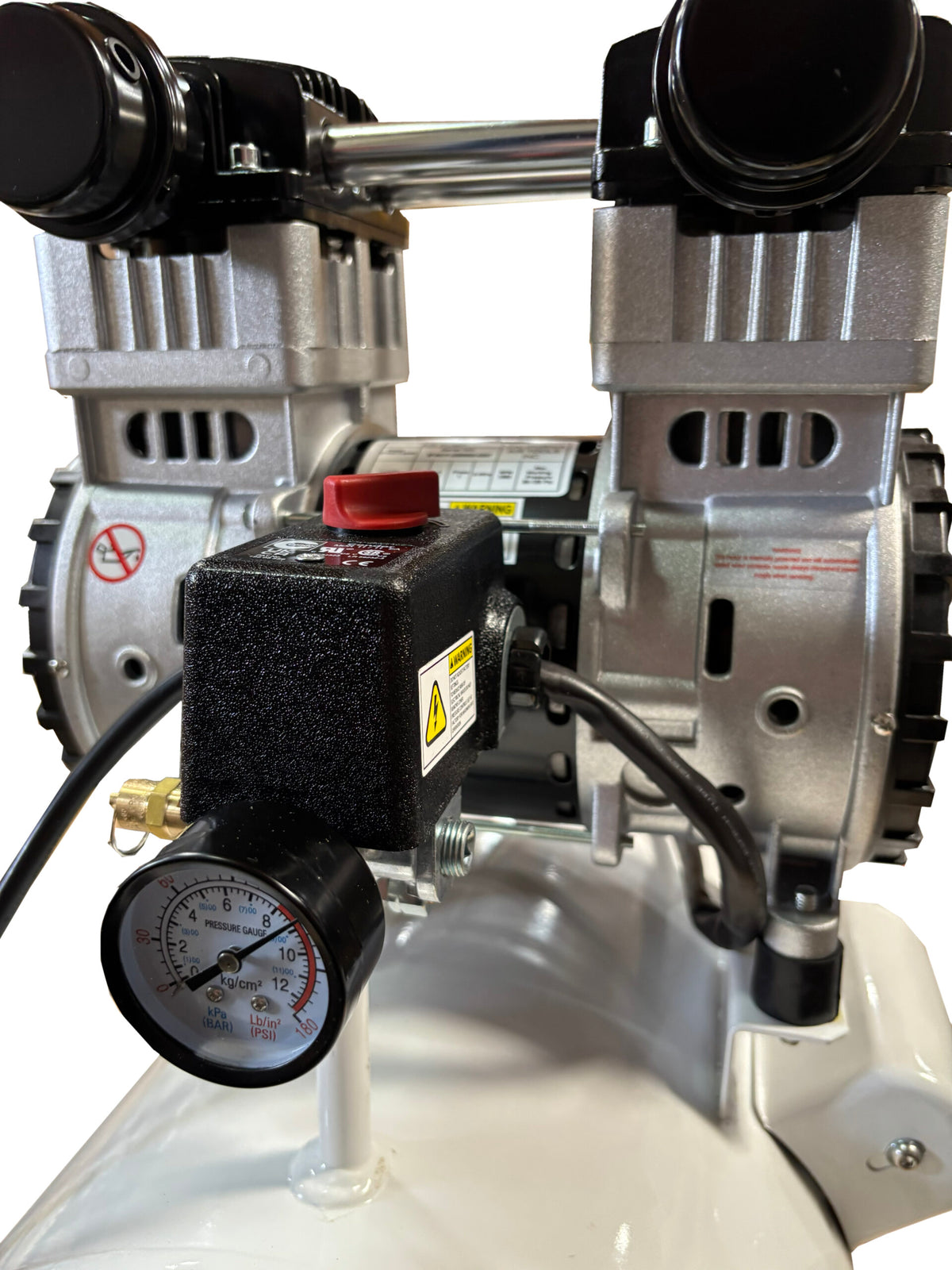

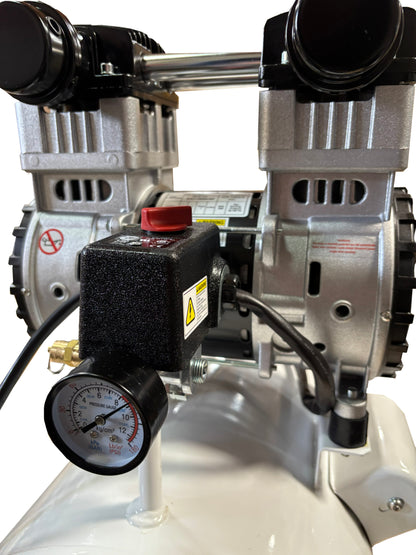

• Two pressure control gauges
• 1/4-inch NPT female industrial push-to-connect quick connector
• Pressure switch
• Thermal overload protector
• 70/30 duty cycle
• Non-ASME steel air tank
• NEMA 6-15P plug

Specifications

• Model: 20020CTR-22060
• Motor: 2.0 HP rated/running
• Motor Model: SP-9421-22060
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 20 gallons
• Tank Material: Steel
• Tank Configuration: Horizontal
• Noise Level: 70 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 7 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Working Pressure: 90–125 PSI ±5 PSI
• Maximum Kick-On: 105 PSI
• Maximum Kick-Off: 130 PSI
• Tank Fill Time: 4 minutes
• Recovery Time: 1 minute from 95 PSI to 125 PSI
• Duty Cycle: 70/30
• Minimum Generator: 3,000 running watts
• Power Plug: NEMA 6-15P
• Dimensions: 39 × 19 × 28 inches
• Weight: 120 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20020CTR-22060 Air Compressor
• 20-gallon horizontal steel air tank
• Oil-free dual-piston pump system
• Two pressure control gauges
• 1/4-inch NPT female industrial push-to-connect quick connector
• Easy Start Valve
• Thermal overload protector
• NEMA 6-15P power plug

Applications

• Mobile truck service
• Mobile van service
• Roadside tire repair
• Mobile tire service
• Tire repair and service applications
• Truck air service
• General shop applications
• Garage applications
• Spray guns
• Sanders
• Higher-demand pneumatic tools

Maintenance

Replace the two 2 HP air filters every two years, or annually if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The oil-free dual-piston pump eliminates the need for regular pump oil changes. Keep the compressor clean and ensure the air intake and surrounding areas remain unobstructed during operation.

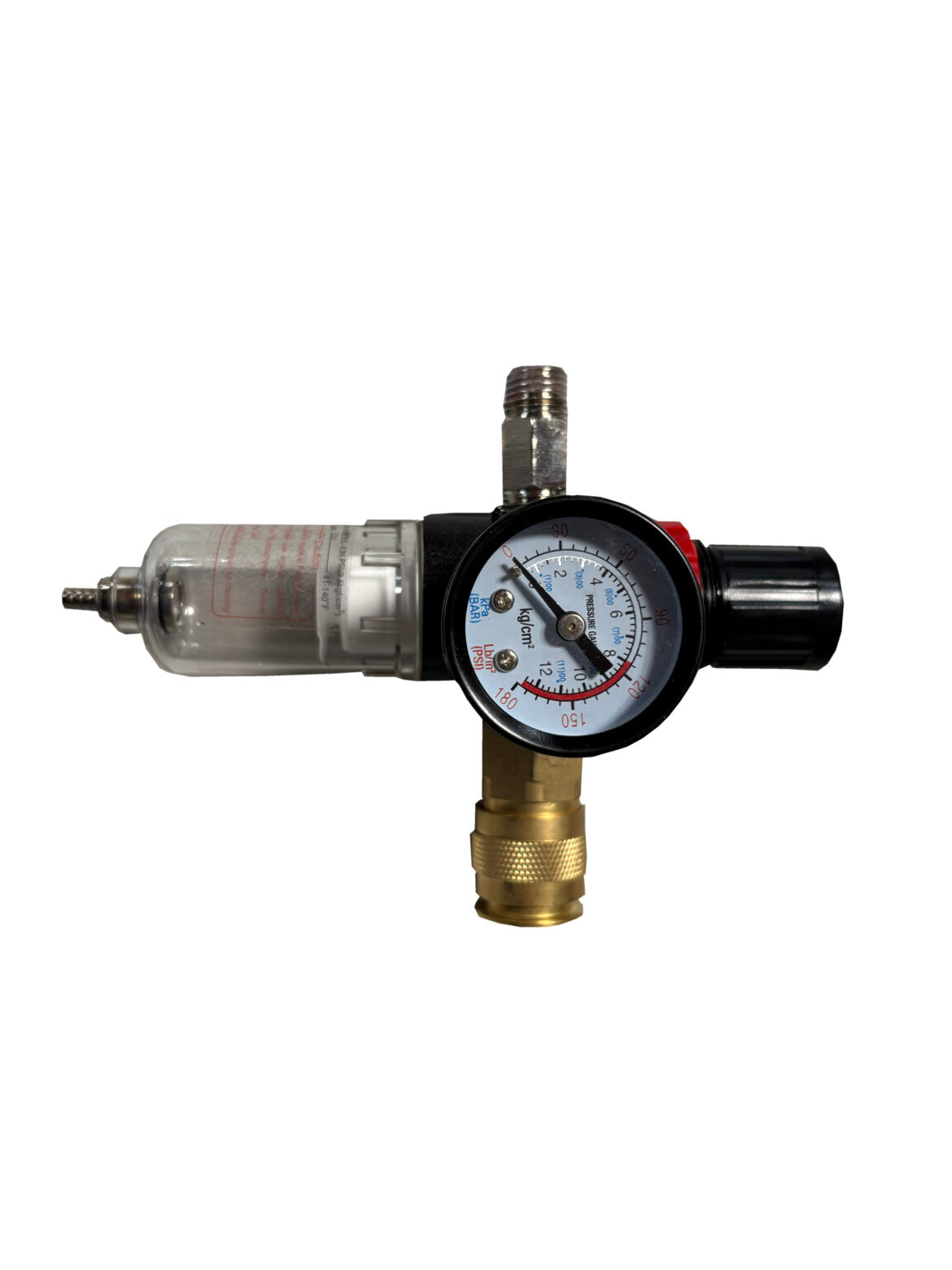

The manufacturer states that the pressure regulator is not included with this model. A 120 PSI pressure regulator assembly is available separately.
